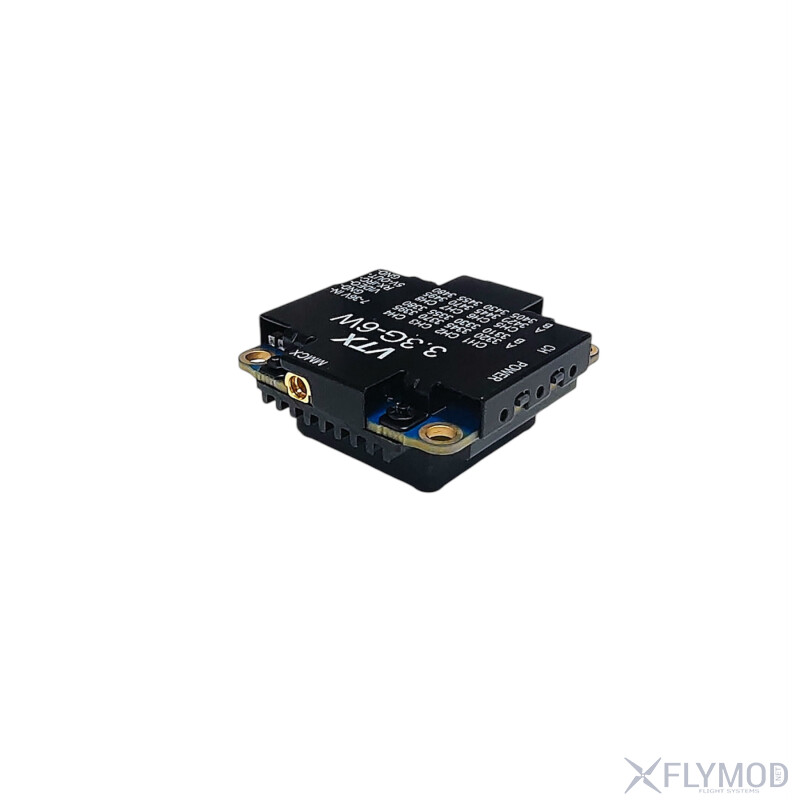

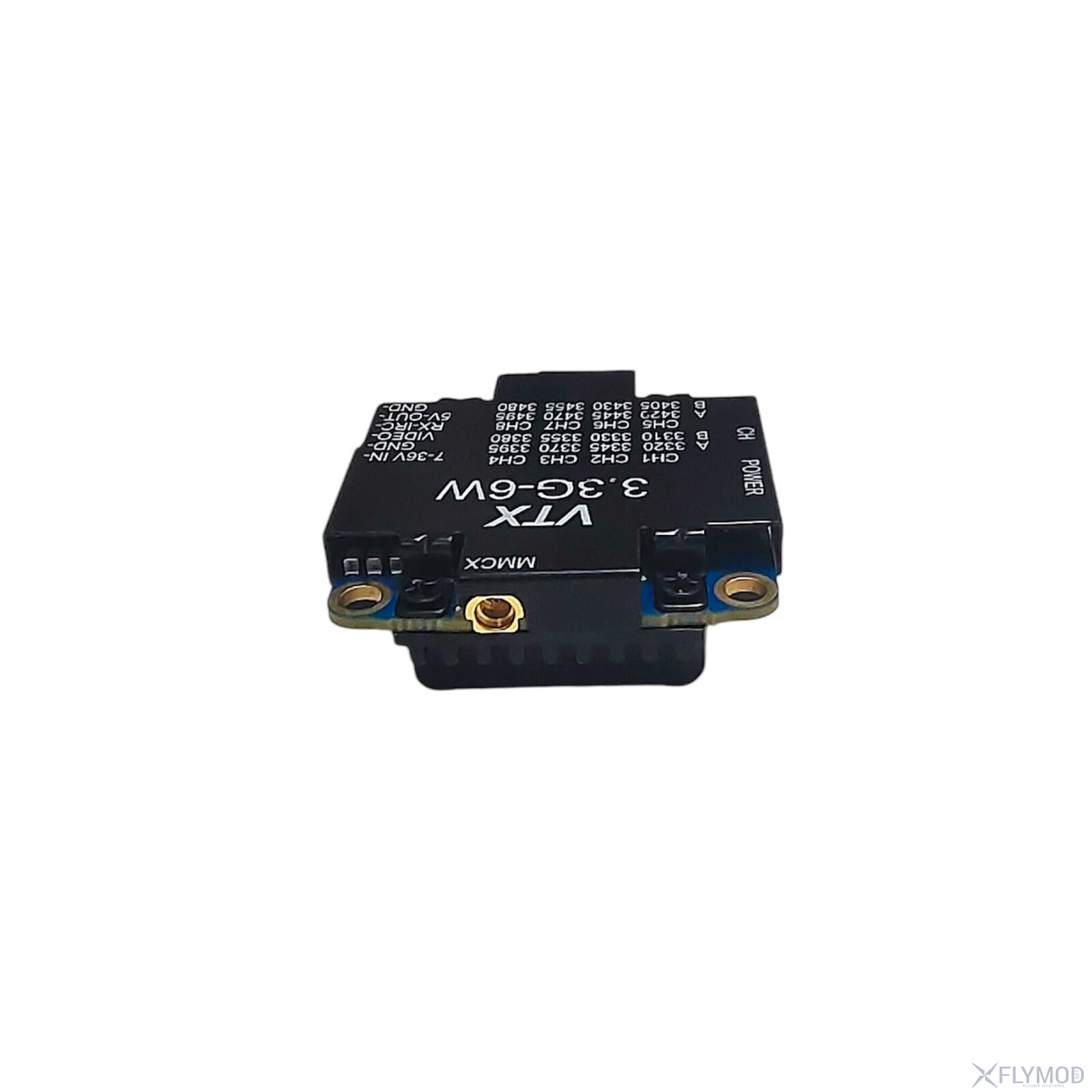

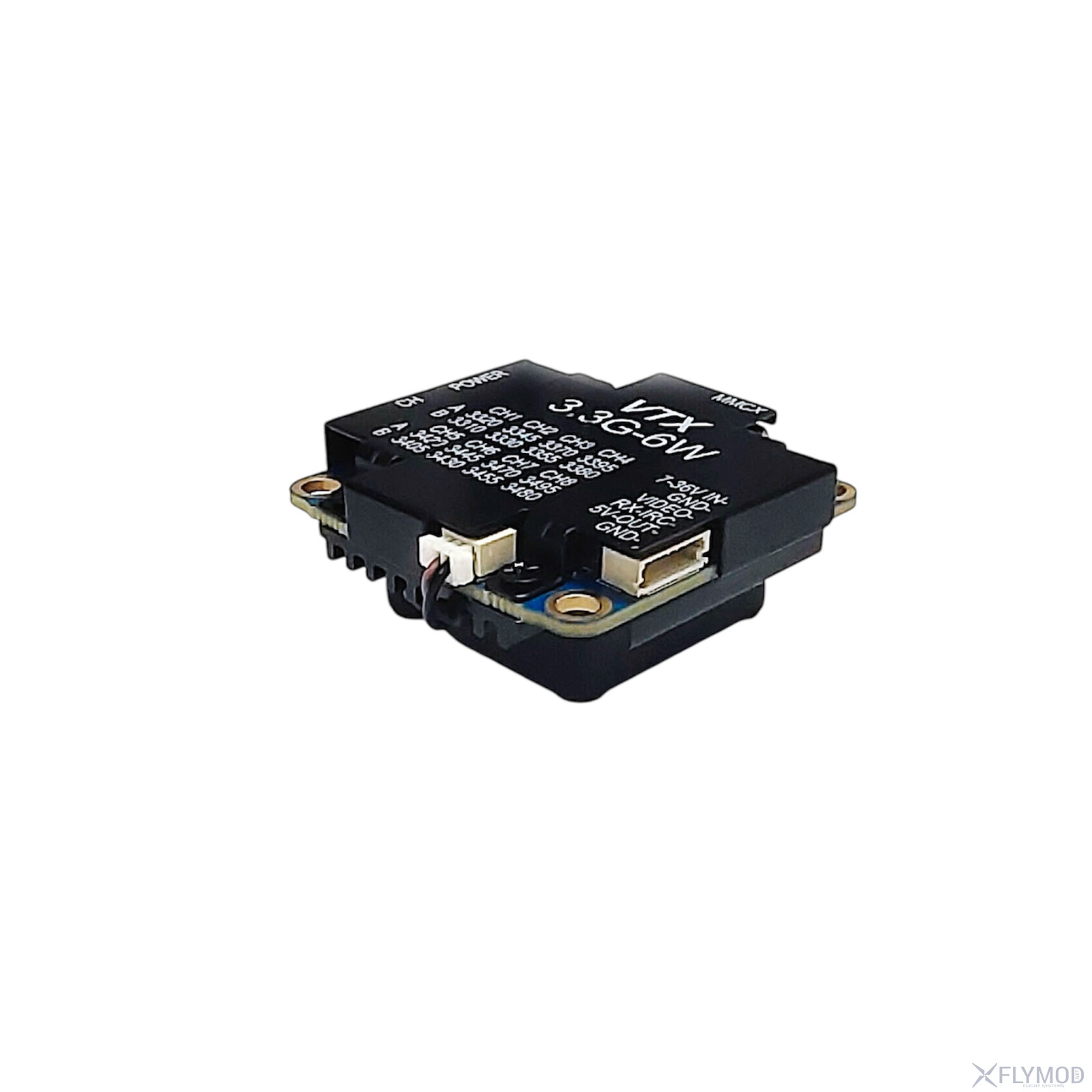

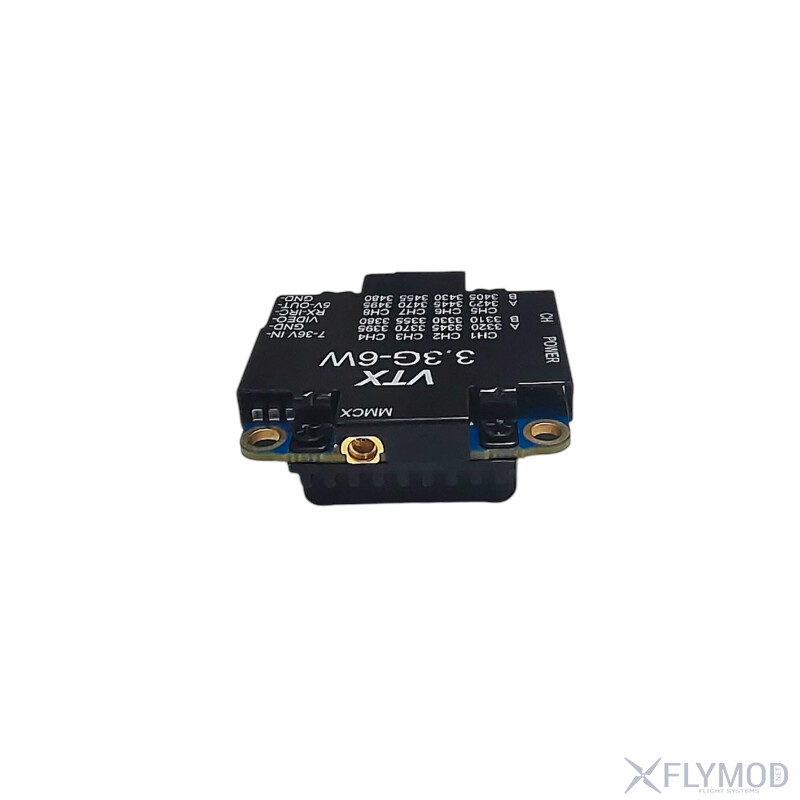

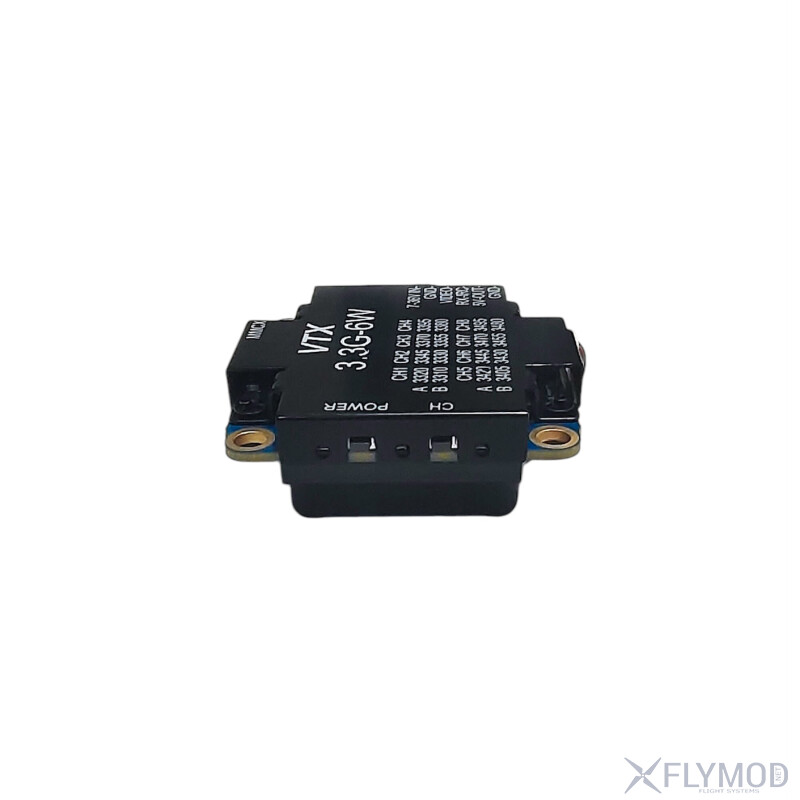

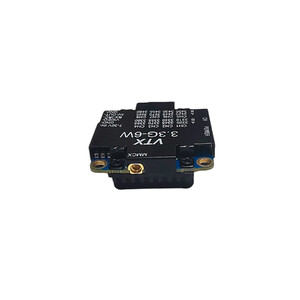

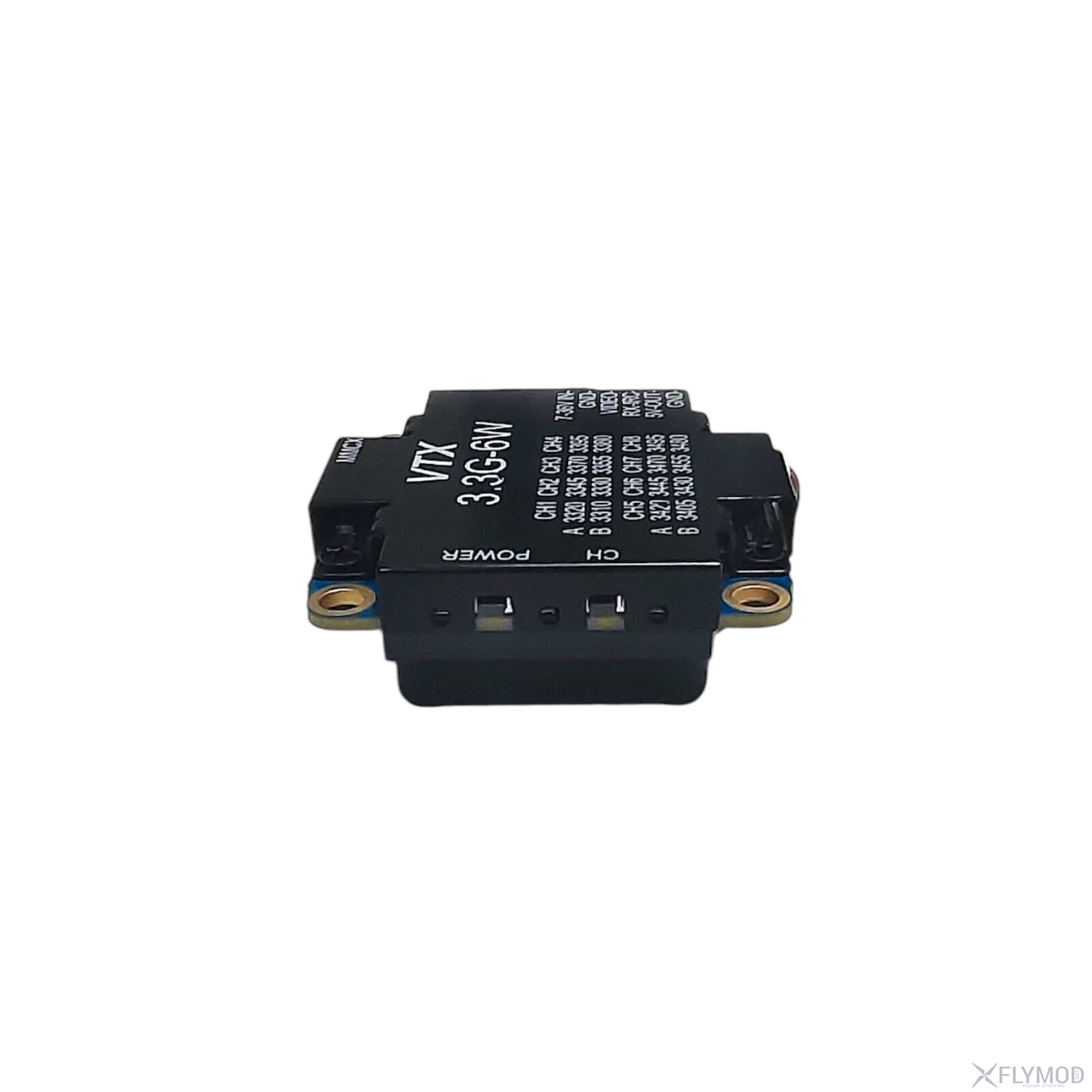

Video transmitter 3.3G 6W VTX 16 channels

Price:2 730 uah with VATPrice in USD:64.99

Bonuses will be issued for this product upon purchase

Read more

SKU 18178

In stock: 3 pc

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stockExpected soon
Notify when available

Description

The3.3G 6W VTX video transmitter provides stable signal transmission in the frequency range of 3310-3495MHz. Adjustable power from 25mW to 6000mW allows you to adapt the device to different operating conditions. The device supports an operating voltage of 6V to 26V and is equipped with a 1V p-p 75Ω video output for compatibility with standard video systems. An additional 5V (0.5A ) output can be used to power external devices. The transmitter has a compact body with 30.5*30.5mm mounting holes and a 50Ω MMCX antenna interface . The transmitter supports the IRC Tramp protocol for tuning frequency and power parameters.

Features

• Adjustable transmit power from 25mW to 6000mW to adapt to different conditions
• Supports operating voltage from 6V to 26V
• Operates in the frequency range of 3310-3495MHz, which allows it to be used in specific radio systems
• Equipped with a 1V p-p 75Ω video output and an additional 5V (0.5A) output to power adjacent devices
• The kit includes an adapter from MMCX connector to SMA connector
• Supports IRC Tramp

Specifications

• Operating voltage: 6-26V
• Frequency range: 3310-3495MHz
• Power consumption: 25/1000/3000/4000/6000mW
• Video output: 1V p-p 75Ω
• 5V output: max 0.5A
• Power consumption: 6.6W at 12V/1550mA
• Antenna interface: MMCX 50Ω
• Control protocol: IRC Tramp
• Antenna length: 165mm/170mm
• Mounting holes: 30.5*30.5mm
• Dimensions: 40*37*15mm
• Weight: 35g (without antenna)

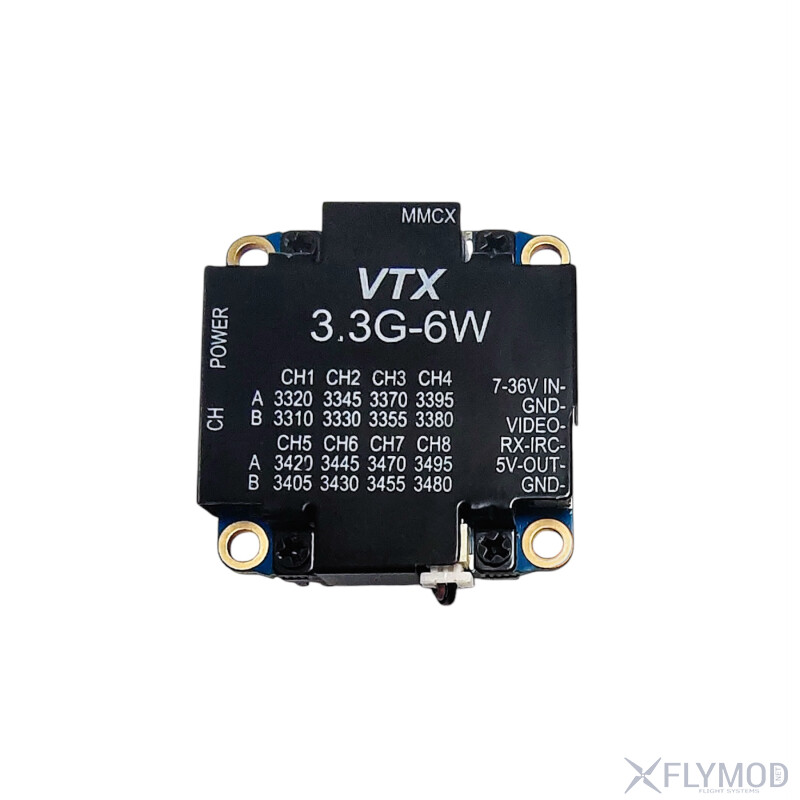

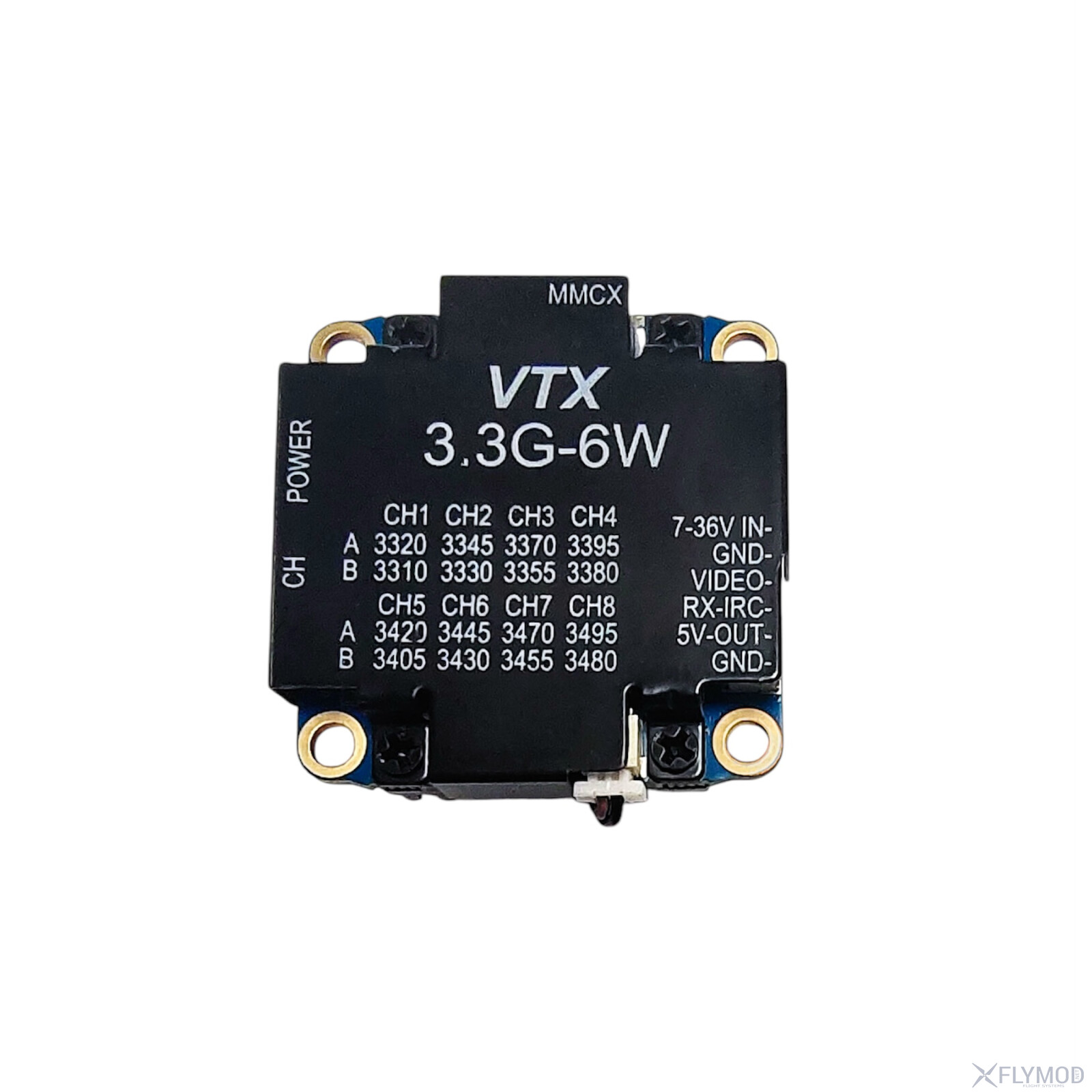

Channel table for Video transmitter 3.3G 6W VTX

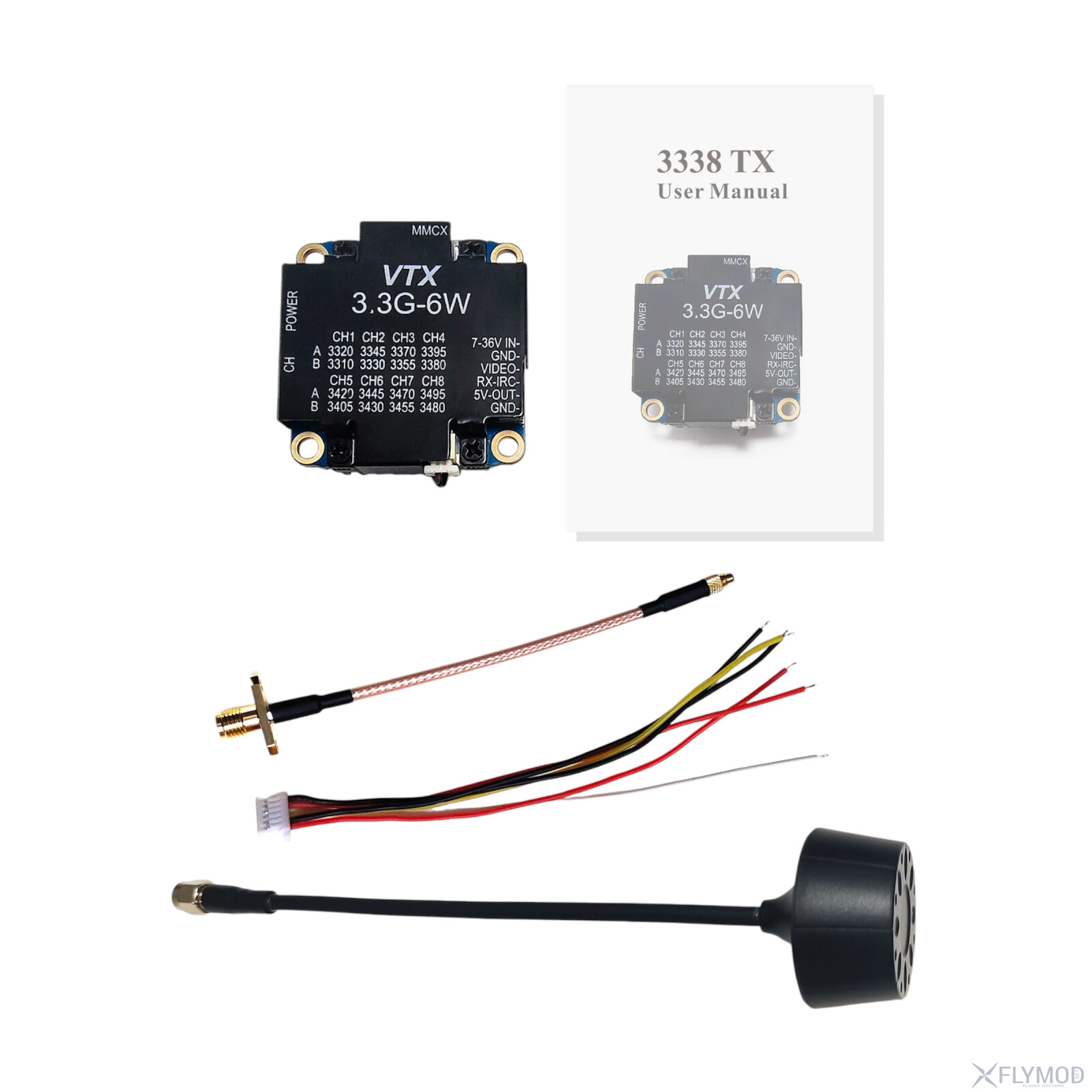

Package

• 1 x 3.3G 6W VTX video transmitter

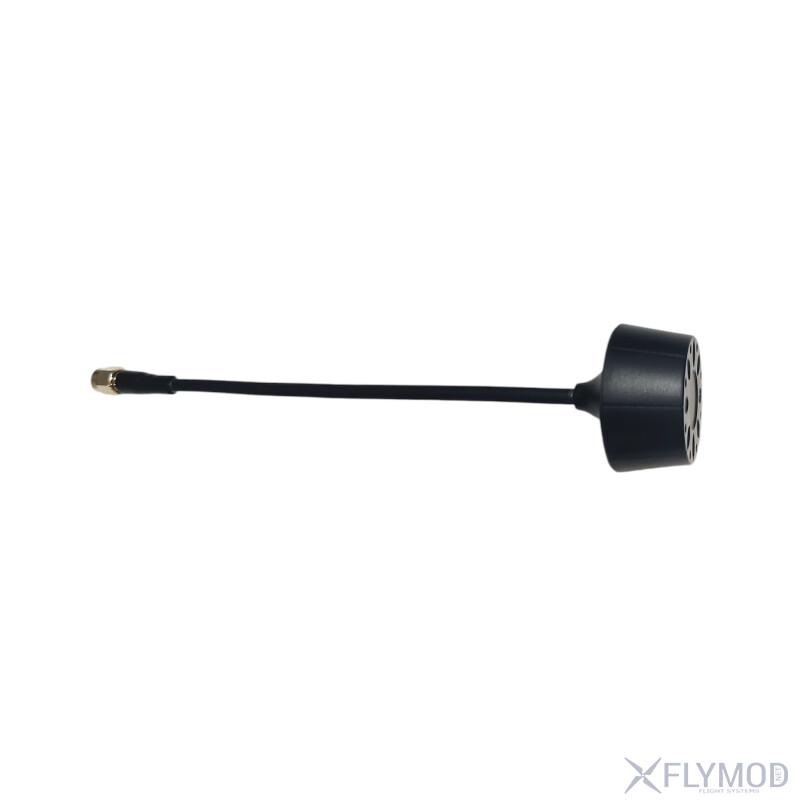

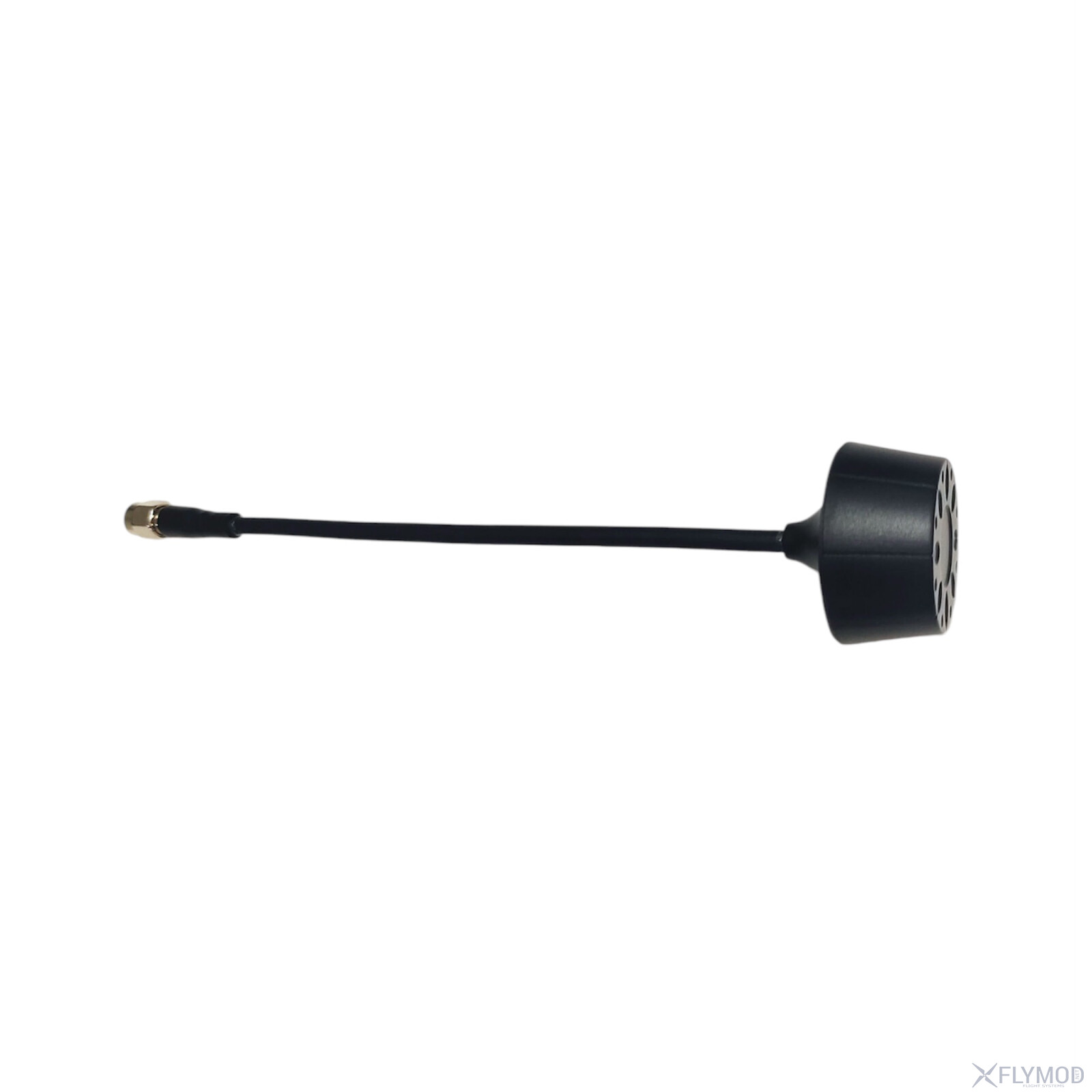

• 1 x antenna
• 1 x antenna extension cable
• 1 x 6Pin cable
• 1 x user manual

Files

• Довідник користувача Відео передавача 3.3G 6W VTX
• Таблиці налаштувань Betaflight json для Відео передавача 3.3G 6W VTX

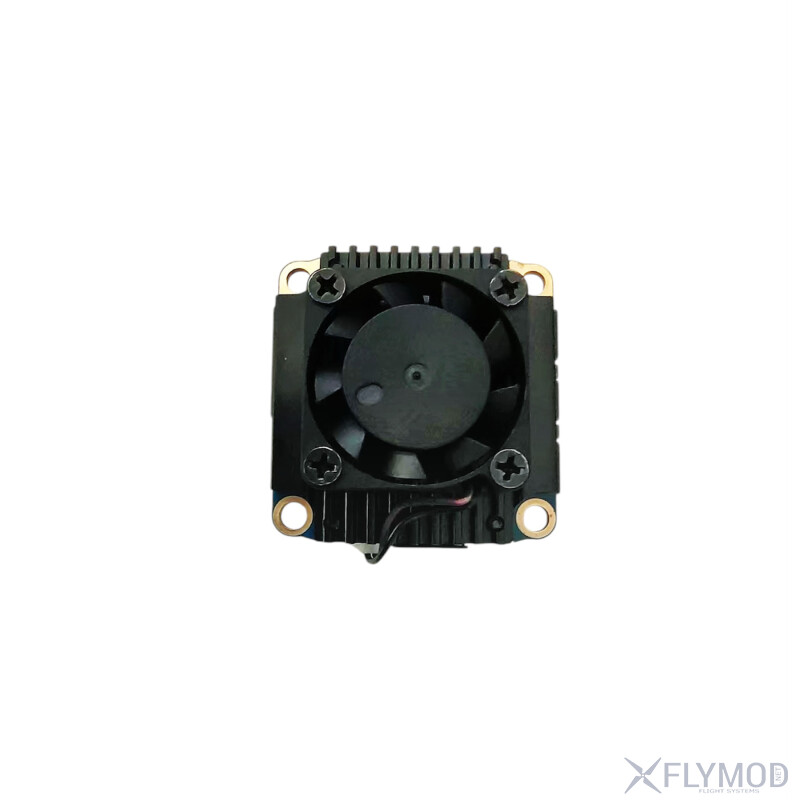

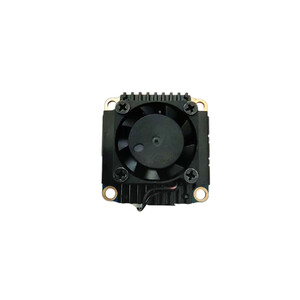

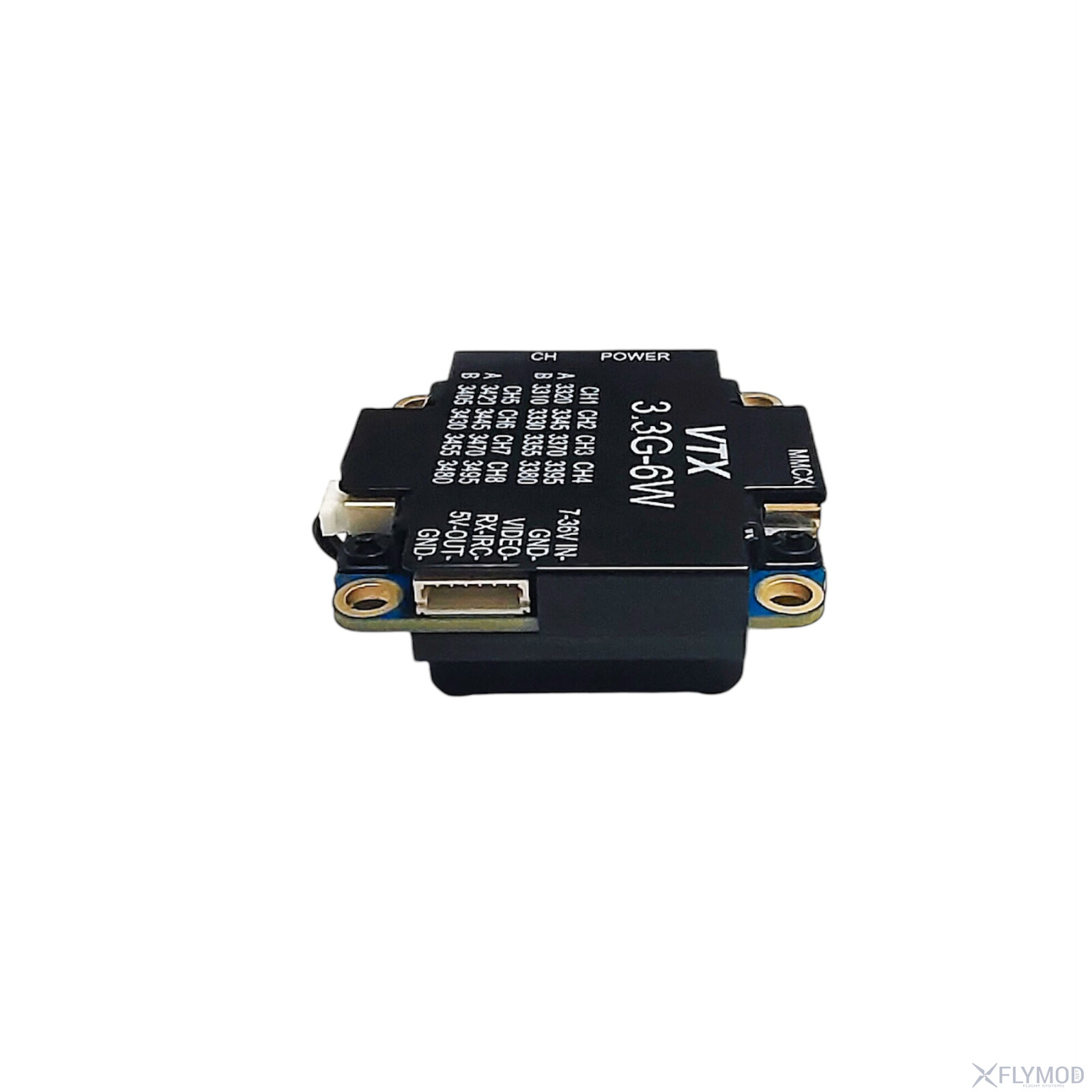

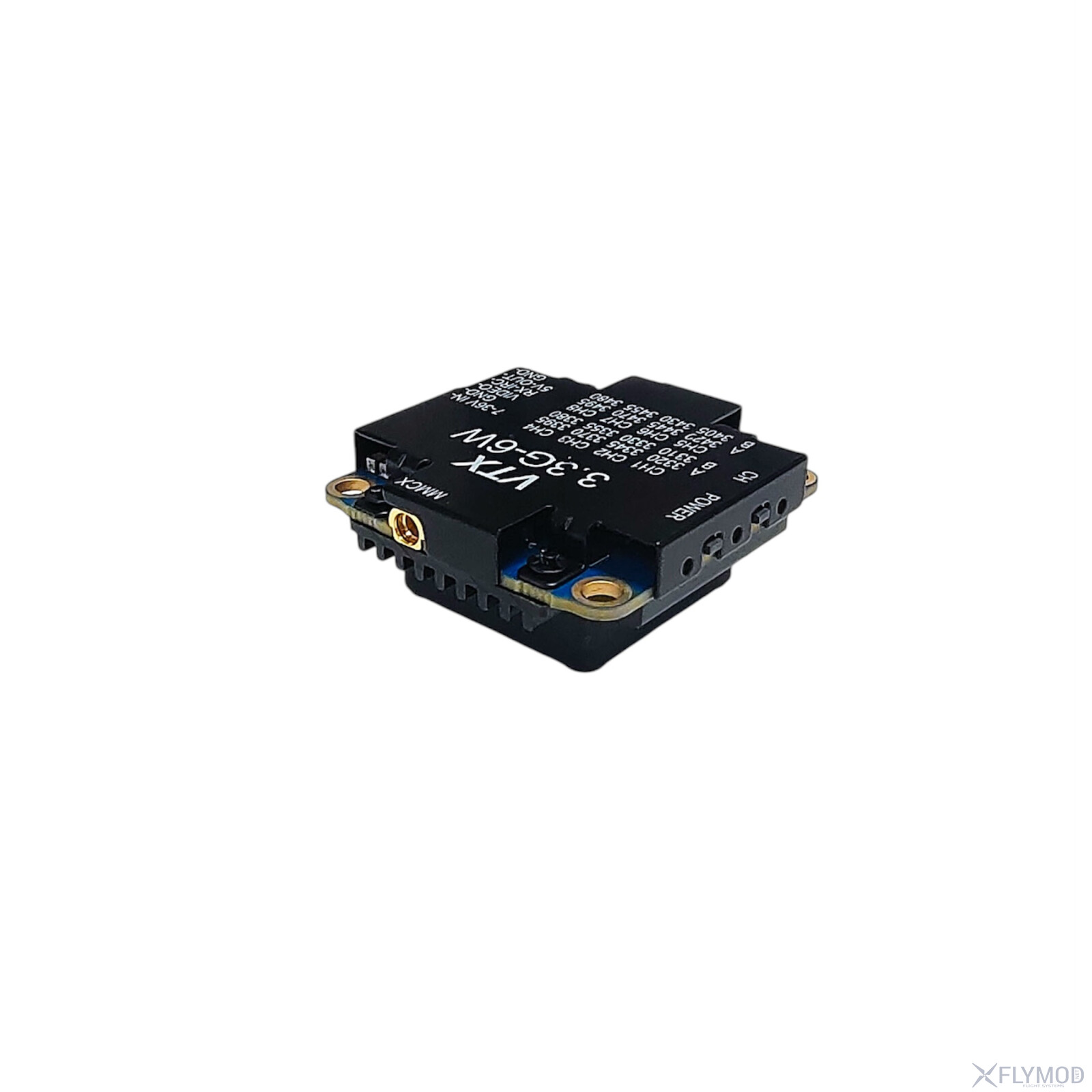

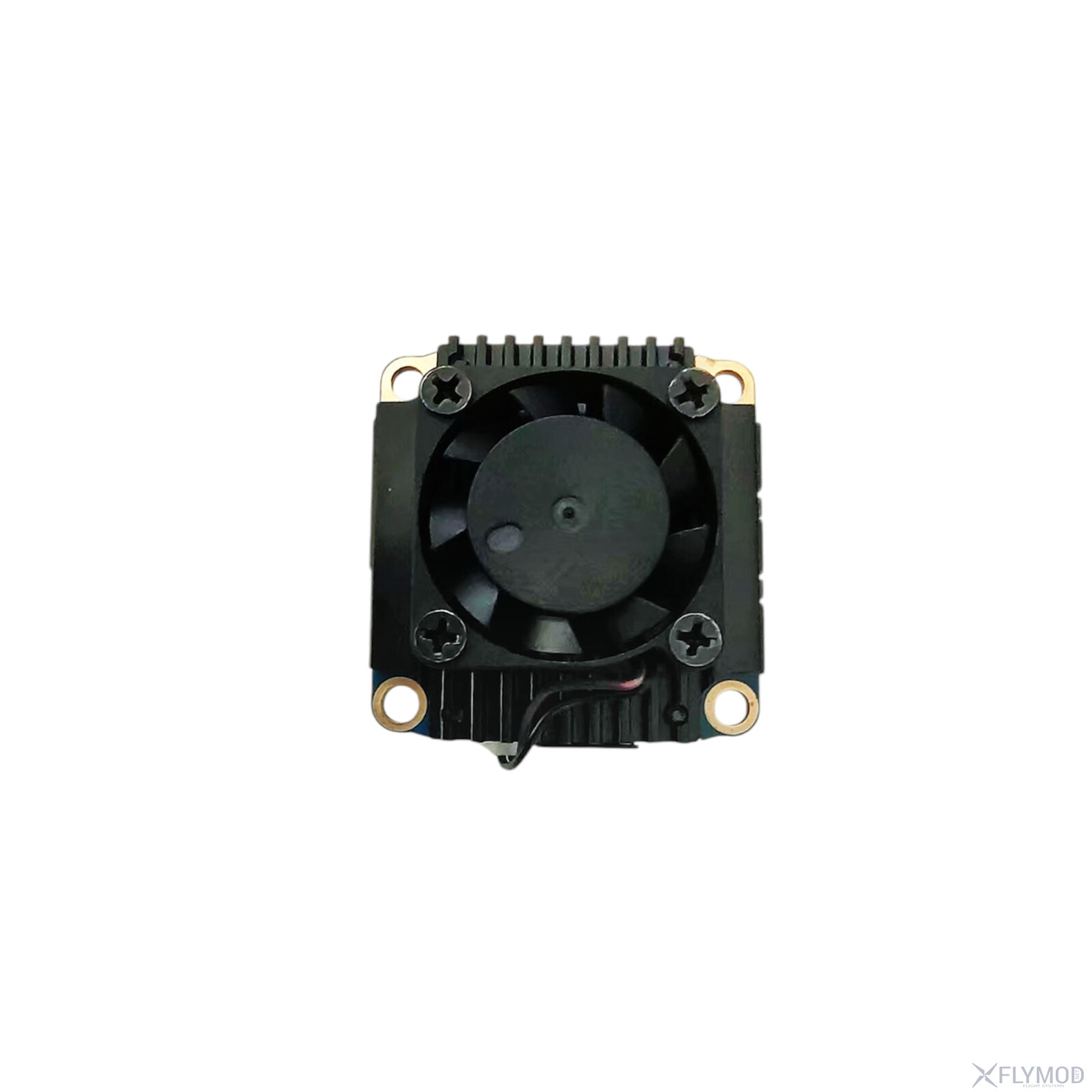

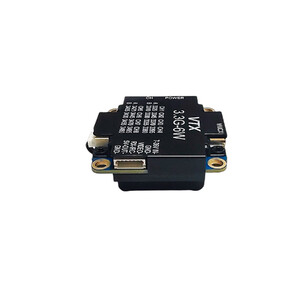

Photos
