Receiver BAYCKRC UR1000 Dual Band 1000mW 868MHz/900MHz/2.4GHz RX

Price:1 449 uah with VATPrice in USD:34.00

Bonuses will be issued for this product upon purchase

Read more

Brand: BAYCKSKU 18374

• Antenna 120mm

Select the option!

Out of stock
Notify when available

Description

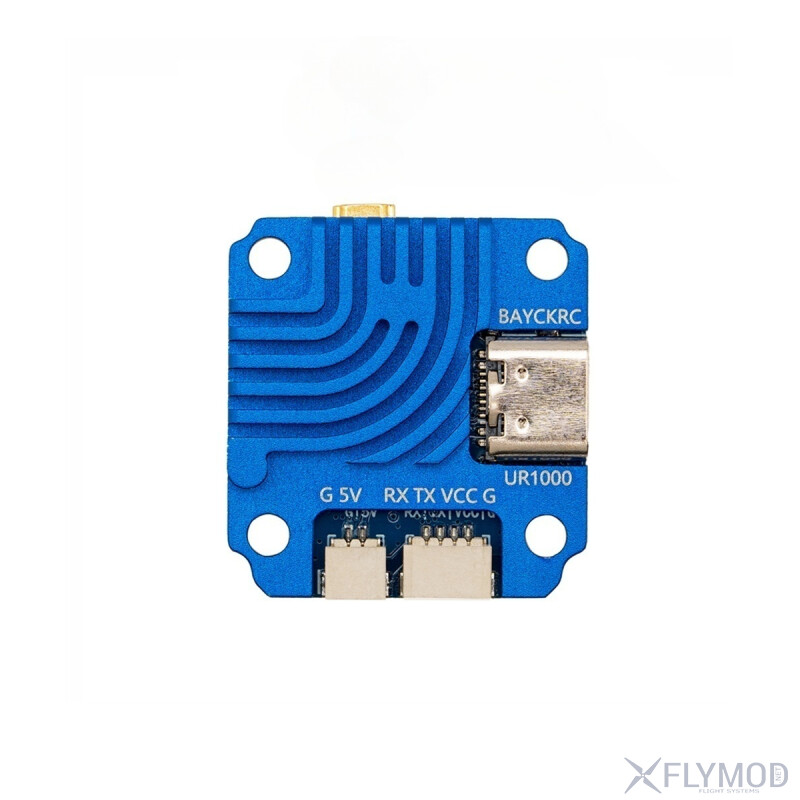

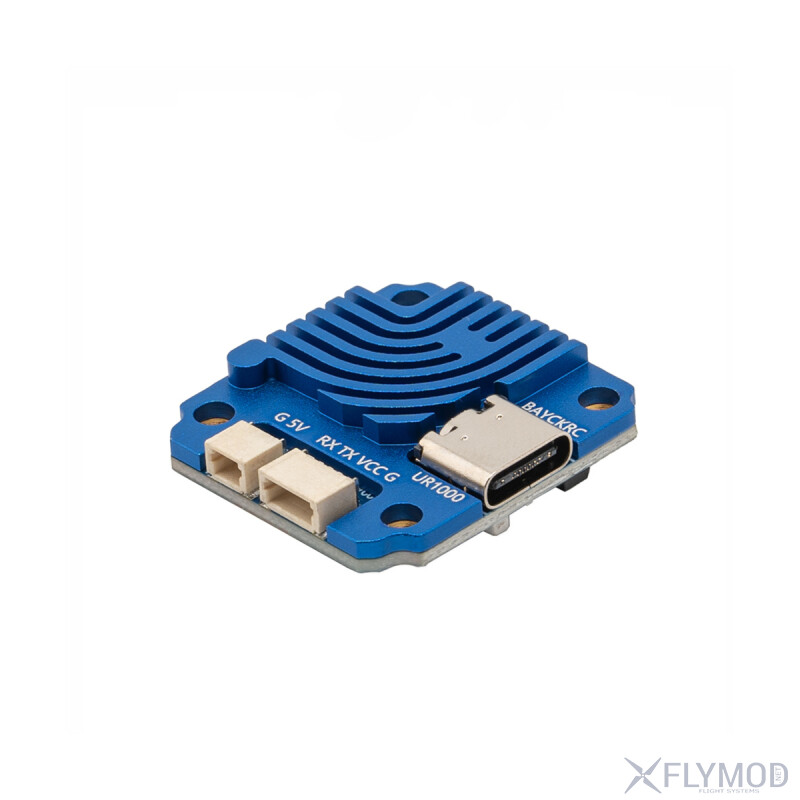

TheBAYCKRC UR1000 Dual Band RX receiver is designed for stable data transmission in the 868MHz, 900MHz and 2.4GHz bands. It is equipped with a powerful module on chips LR1121, ESP32-C3 and TCXO, which ensures signal accuracy and reliability. The 1000mW output power allows for stable communication even over long distances. The receiver operates in a wide input voltage range of 6-40V and supports firmware updates via USB.

Features

• Has an output power of 1000mW and supports a wide input voltage range of 6-40V
• Supports operation in the frequency range of 868MHz, 900MHz and 2.4GHz
• Uses a combination of LR1121, ESP32-C3 and TCXO chips
• Equipped with BAYCKRC UR1000 Dual Band firmware

Specifications

• Model: BAYCKRC UR1000 Dual Band RX
• Frequency: 868MHz/900MHz/2.4GHz
• Chip: LR1121+ESP32-C3+TCXO
• Power: 1000mW (at 868MHz/900MHz/2.4GHz)
• Input voltage: 6-40V
• Firmware: BAYCKRC UR1000 Dual Band
• USB update port: supported
• Color: blue

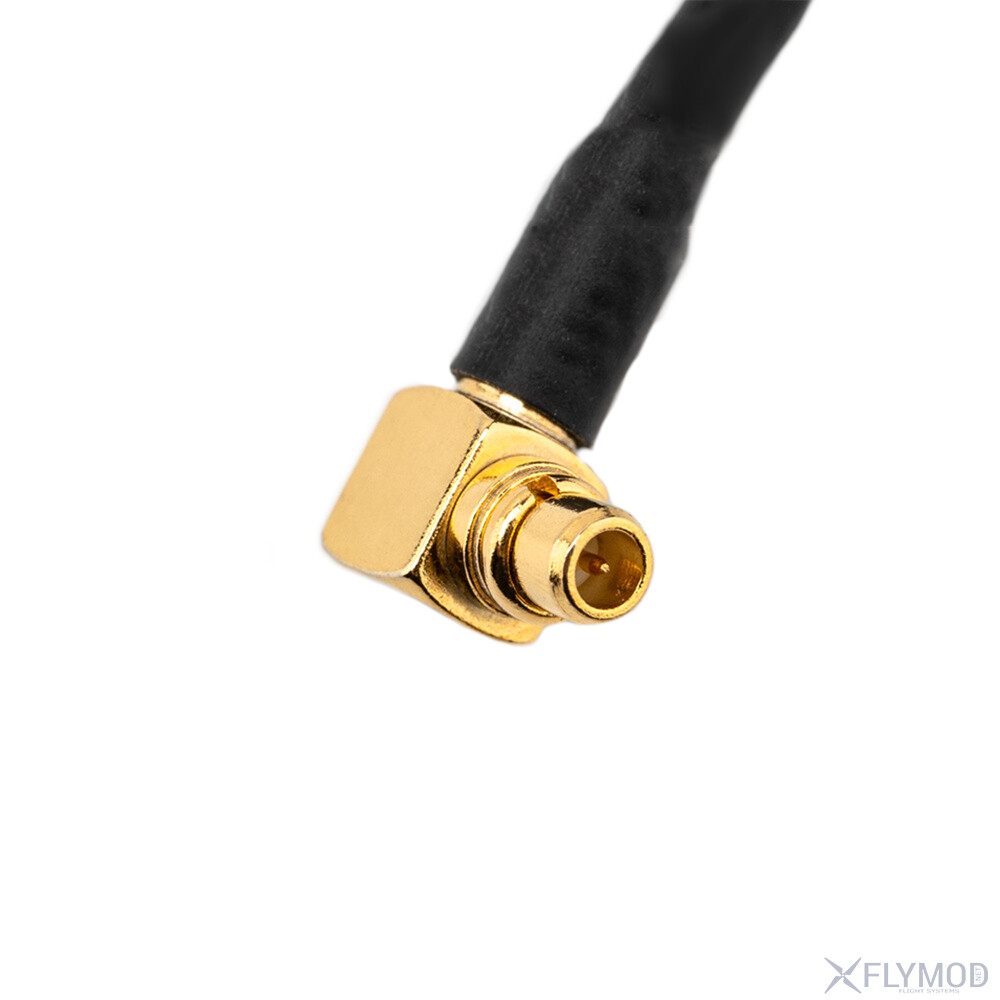

• Connector type: MMCX
• Antenna length: 120mm

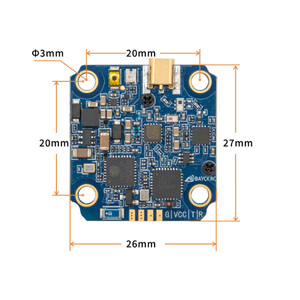

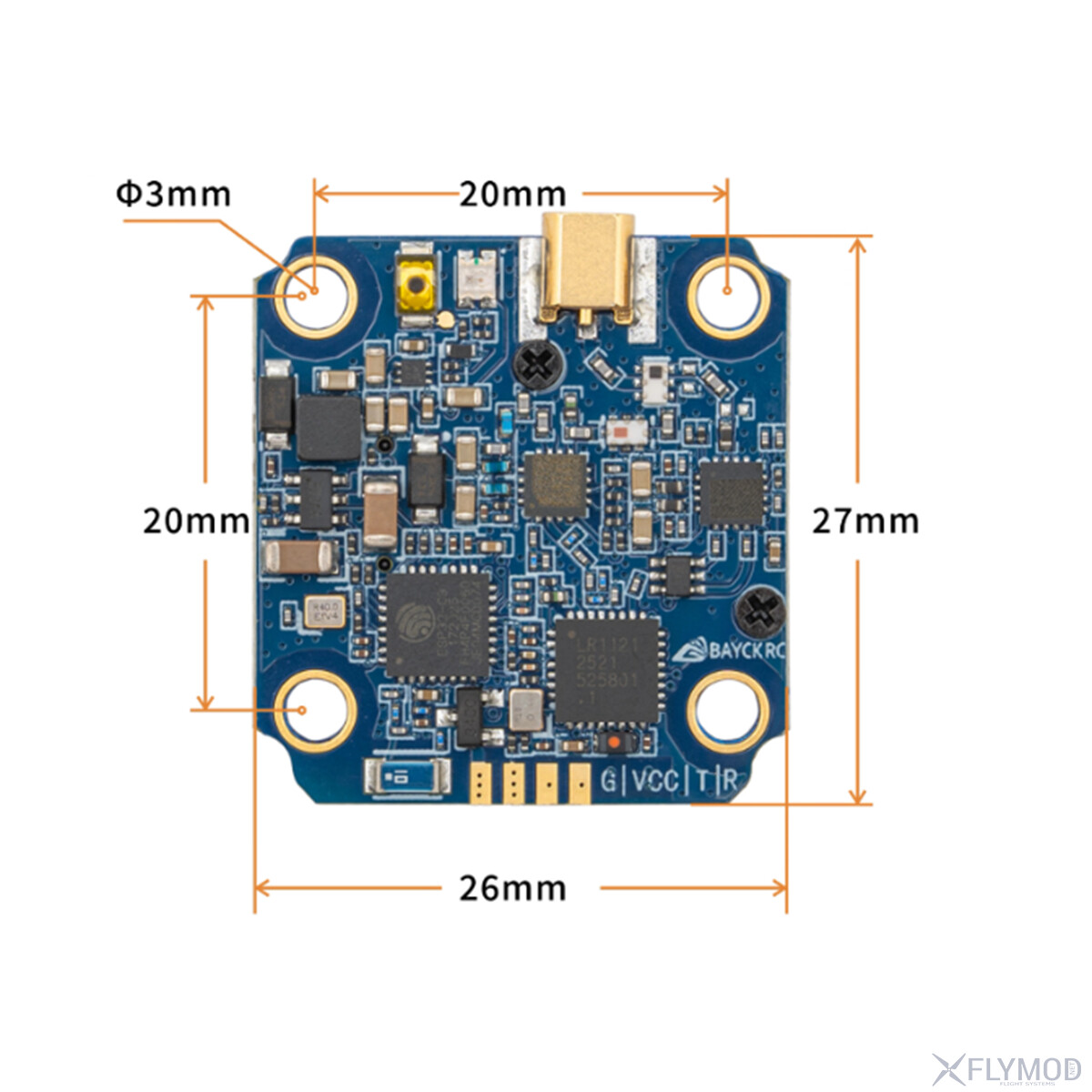

• Mounting holes: 20*20mm 4*M3
• Size: 26*27mm
• Weight: 6.2g (without antenna)

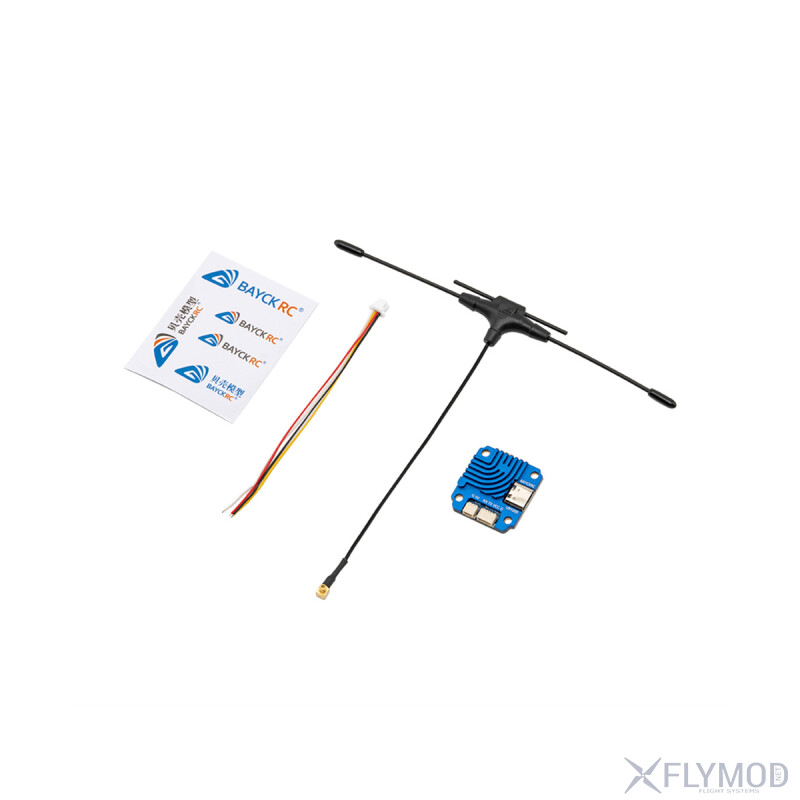

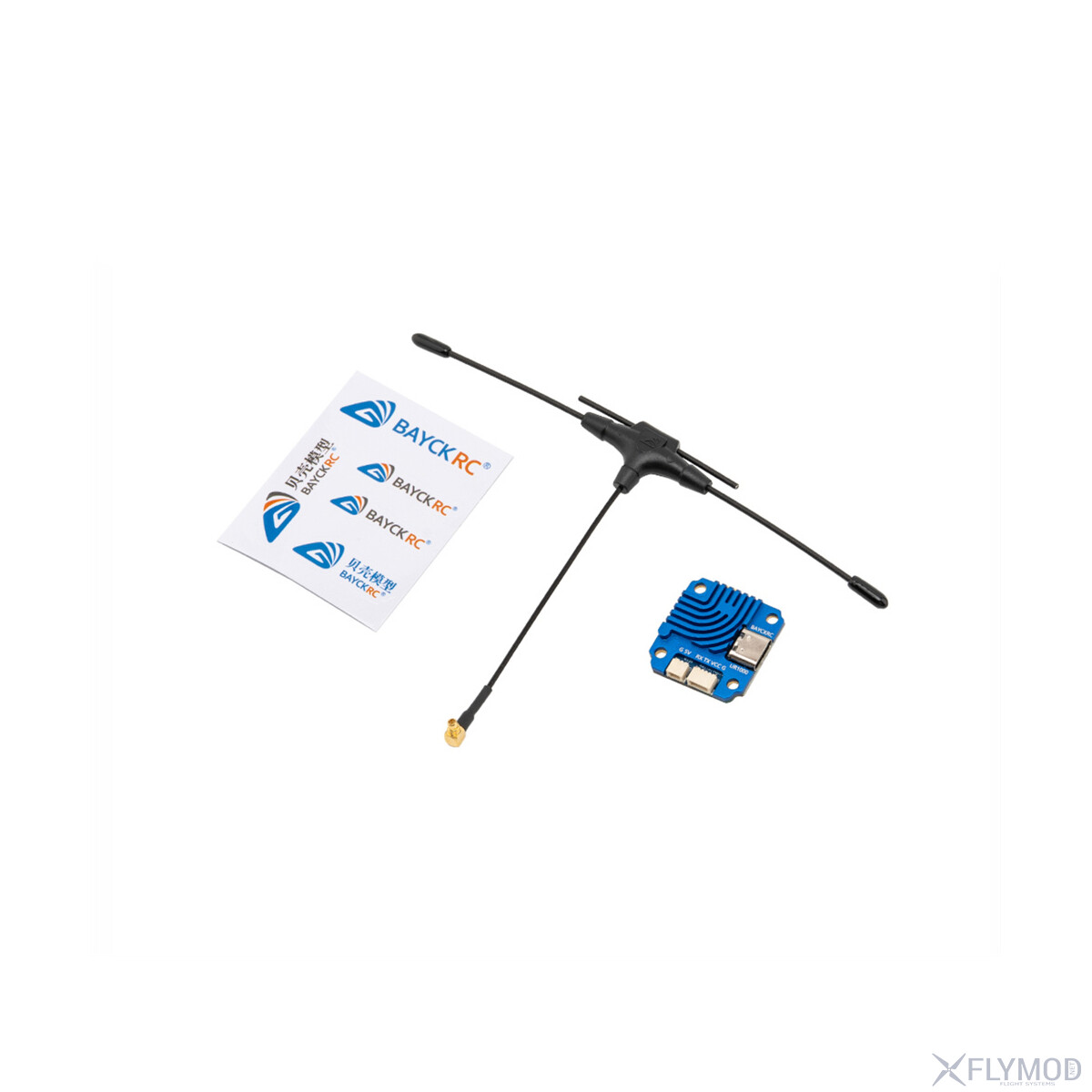

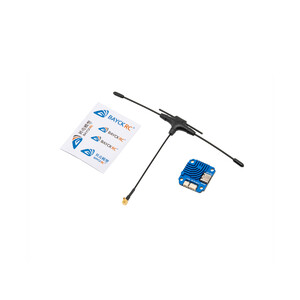

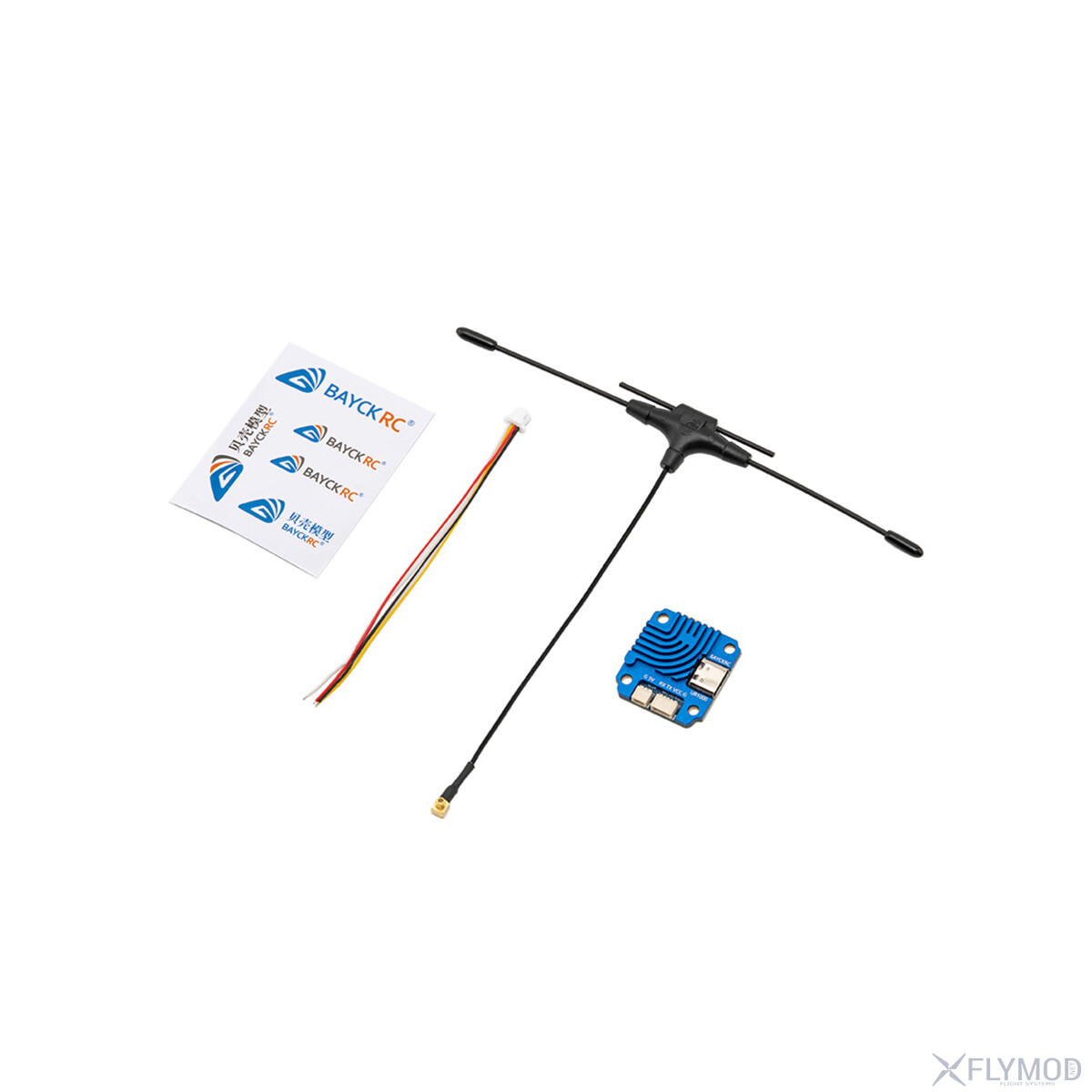

Package

• 1 x BAYCKRC UR1000 Dual Band RX receiver

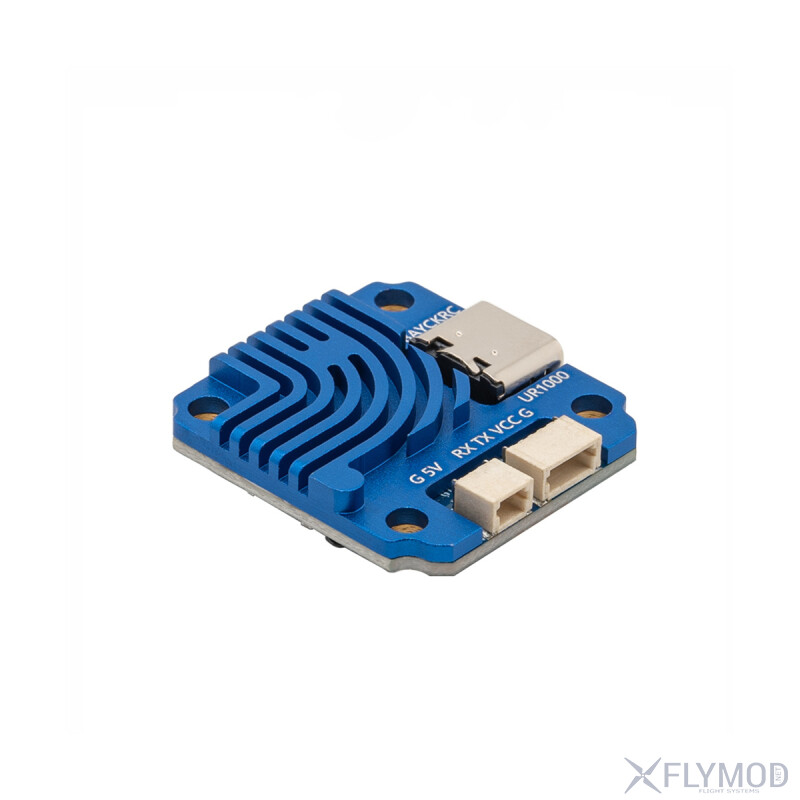

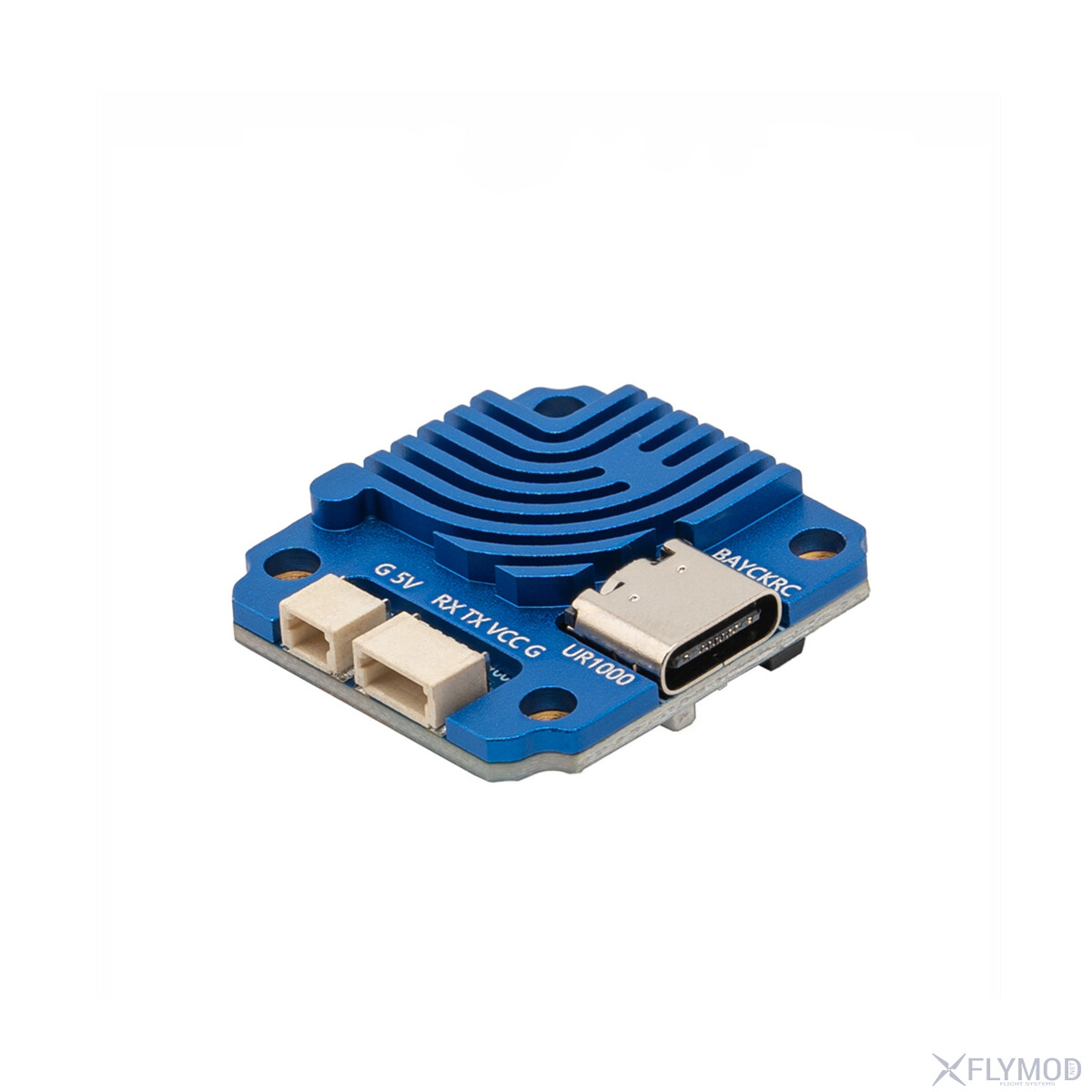

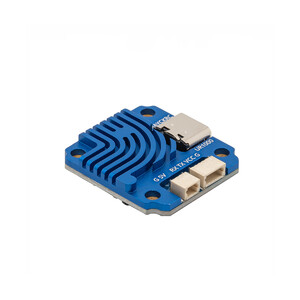

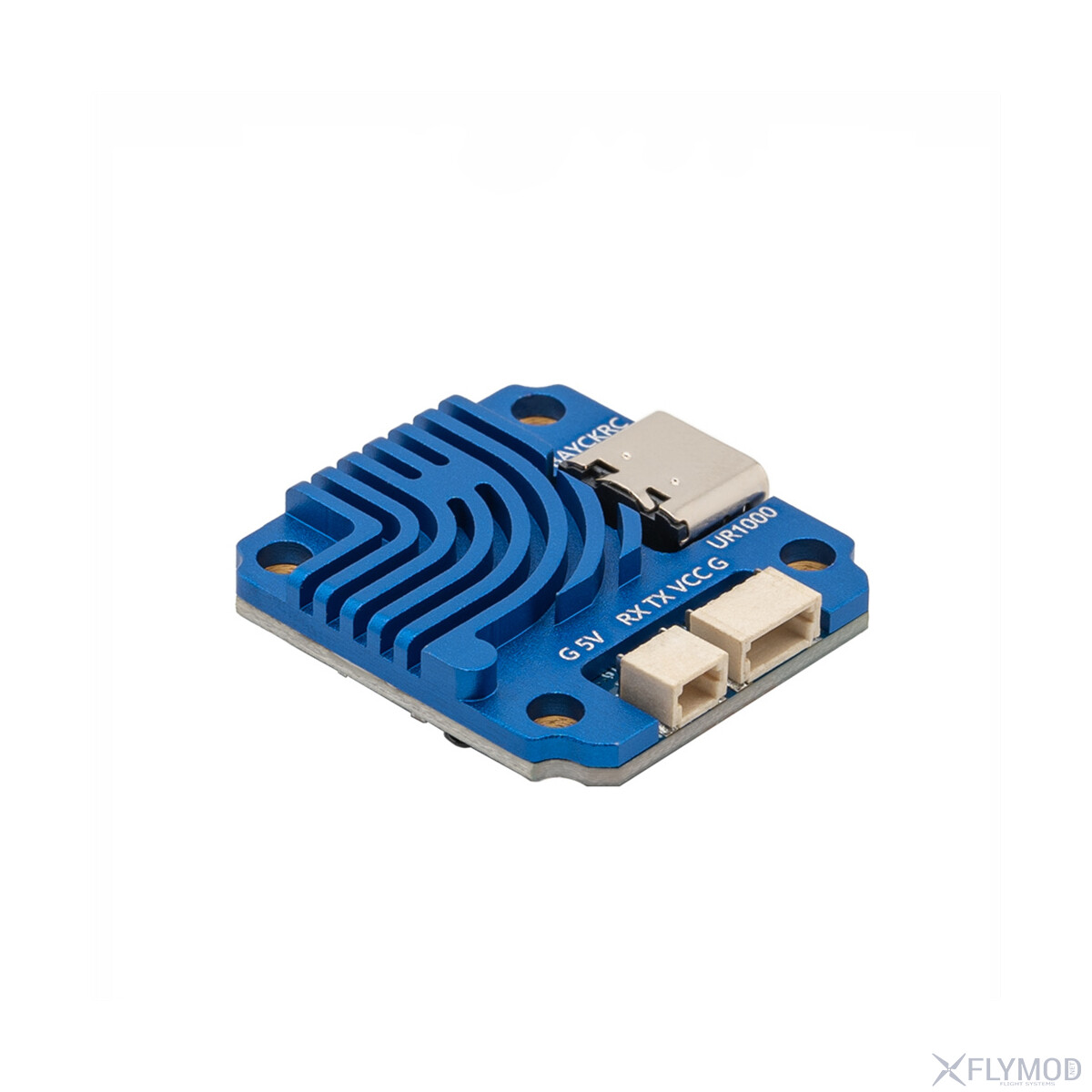

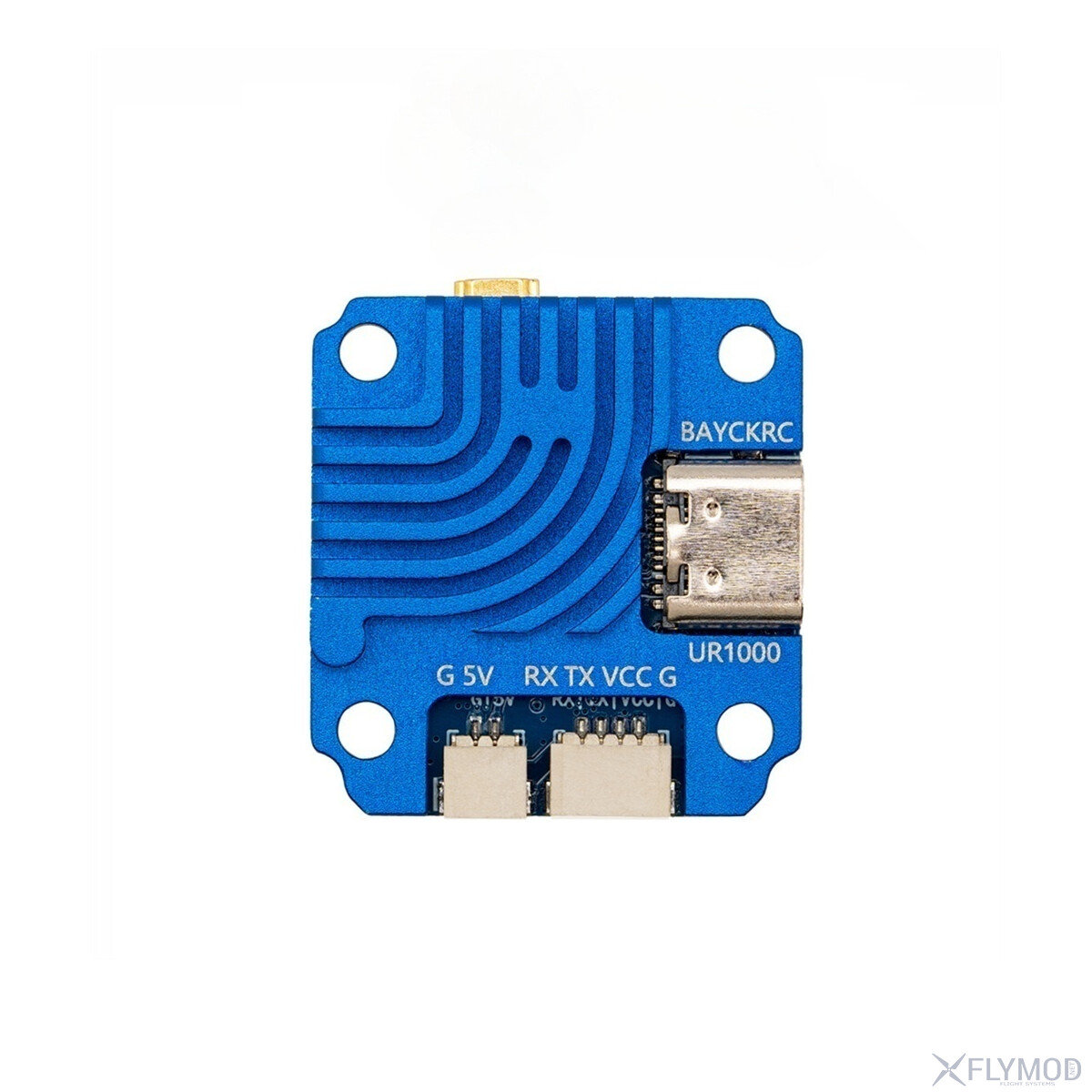

Photos
