The BAYCK ExpressLRS 2.4G EPW PWM receiver is designed to work with radio control systems that use PWM or CRSF protocols. It operates at a frequency of 2.4GHz and supports telemetry with an output power of 12dBm, which allows for two-way data exchange. The receiver operates in the input voltage range of 4-10V and is compatible with feedback systems up to 34V with appropriate firmware. Its compact size and light weight make it easy to install in various types of RC models.
Features.
Equipped with SX1281 and ESP8285 chips that provide stable communication via the ExpressLRS protocol with 12dBm telemetry support
Supports 5 PWM channels or CRSF output, compatible with various RC model control systems
It has a telemetry return channel with a permissible voltage of up to 34V (when using firmware version 3.0.0 or higher), which allows you to monitor the voltage of the on-board system
Specifications.
Model: BK-2.4G-5CH
Frequency: 2.4GHz
Chip: SX1281+ESP8285
Input voltage: 4-10V
Telemetry power: 12dBm
PWM channel: 5 channels
Maximum feedback voltage: 34V (requires firmware version 3.0.0 and above)
Power consumption: 45mA at 5V (connected state), 85mA at 5V (WIFI update state)
Receiver output protocol: PWM or CRSF
RF connector: IPEX 1
PCB color: black
PCB size: 15.5*25.5mm
Weight: 4.7g (receiver with antenna)
Package contents.
1 x BAYCK ExpressLRS 2.4G EPW PWM receiver for 5 RX channels

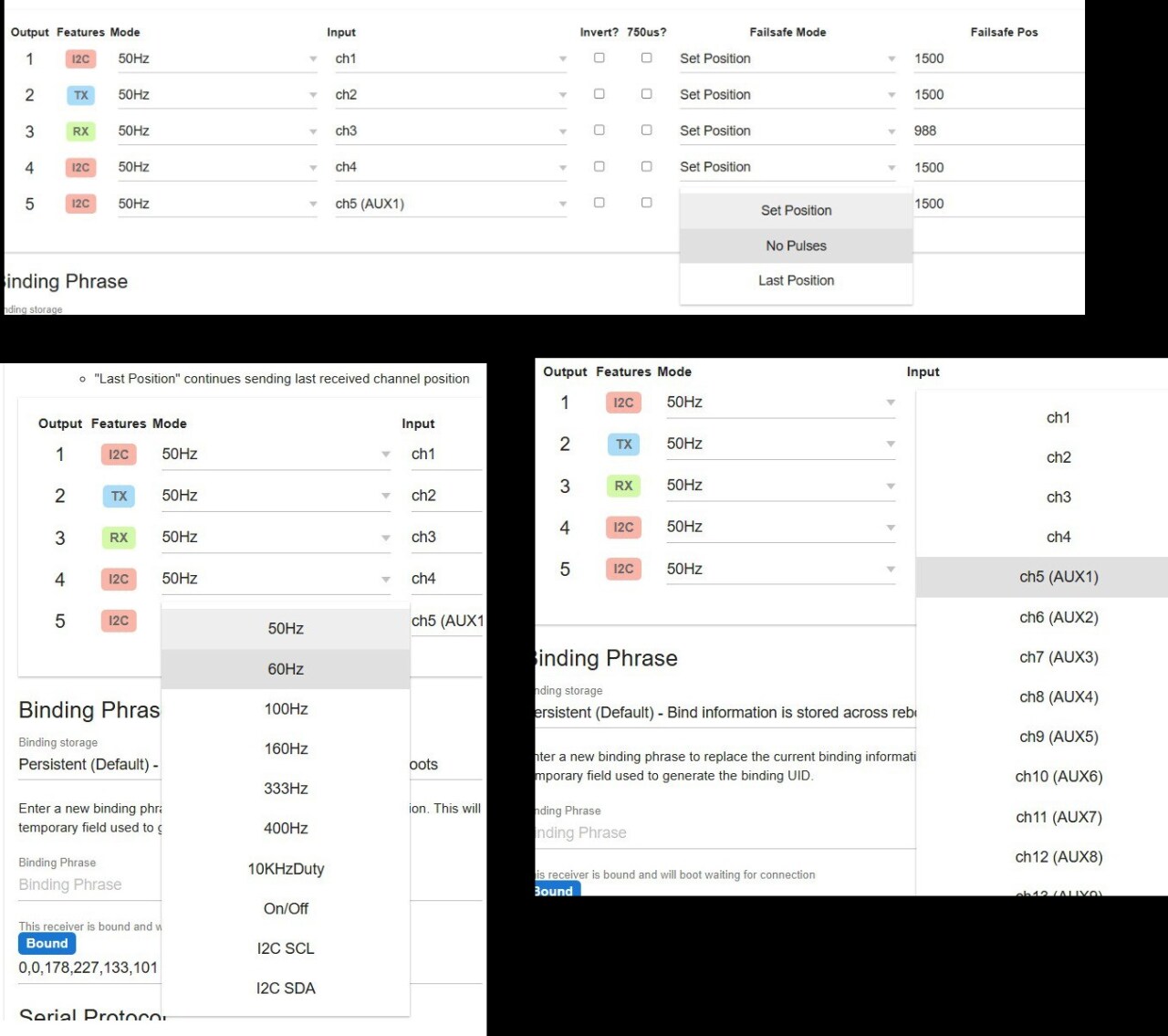

Цікавий пристрій, для специфічних задач саме те що треба, щоб не прикручувати к звичайному RX по UART якусь Arduino, возитися з кодом і бібліотеками CRSF. Всі налаштування виходів в веб-морді. Режим виходу, failsafe, навіть є режим ON/OFF, можна керувати, наприклад, якимось реле через транзистор
