Step-down DC-DC voltage regulator for 3.3V, 5V, 7.5V, 9V, 12V to 3A FlyMod

Price:153 uah with VATPrice in USD:3.65

Bonuses will be issued for this product upon purchase

Read more

Brand: FlyModSKU 18162

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stock

Notify when available

Description

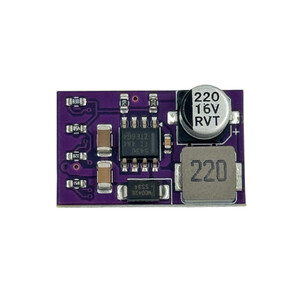

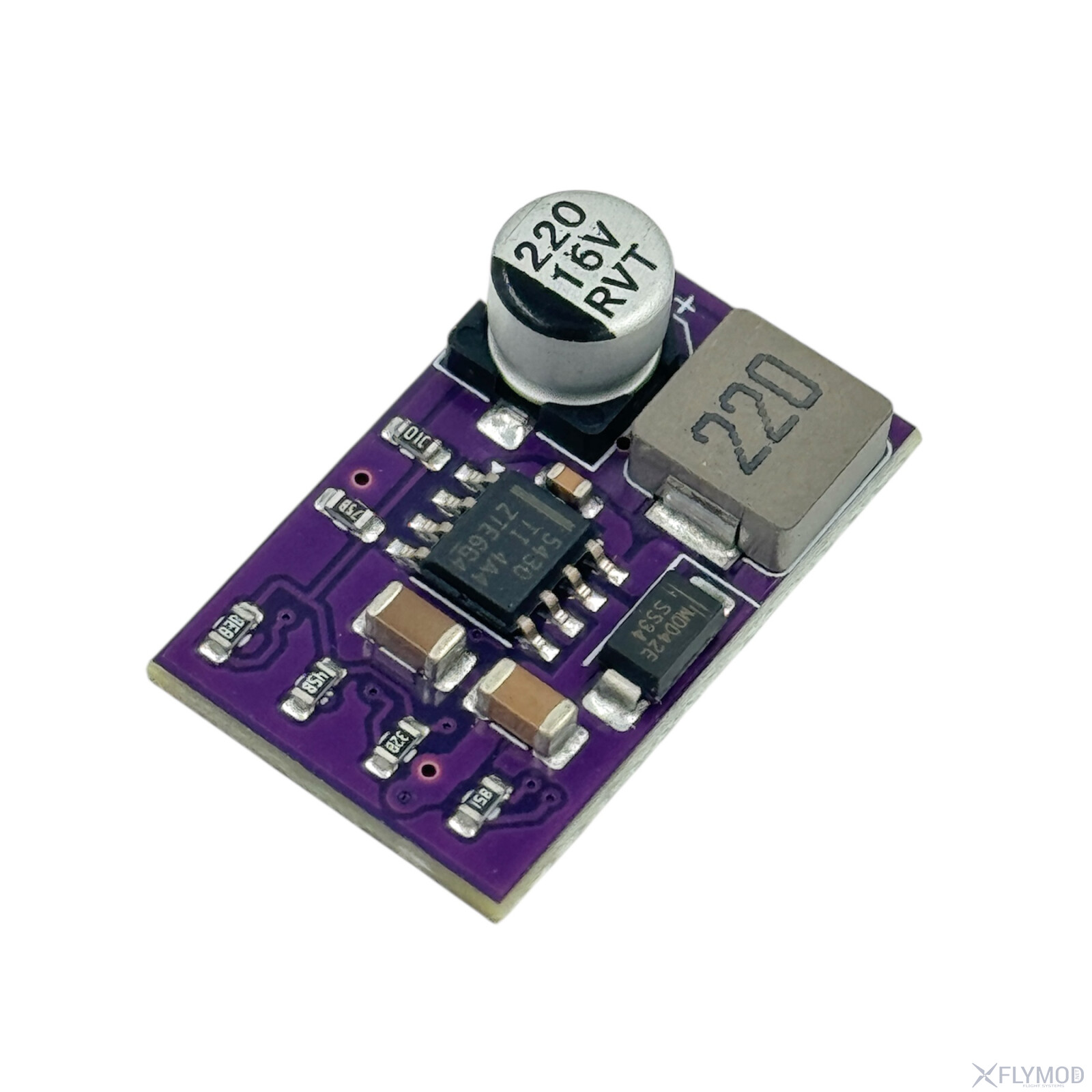

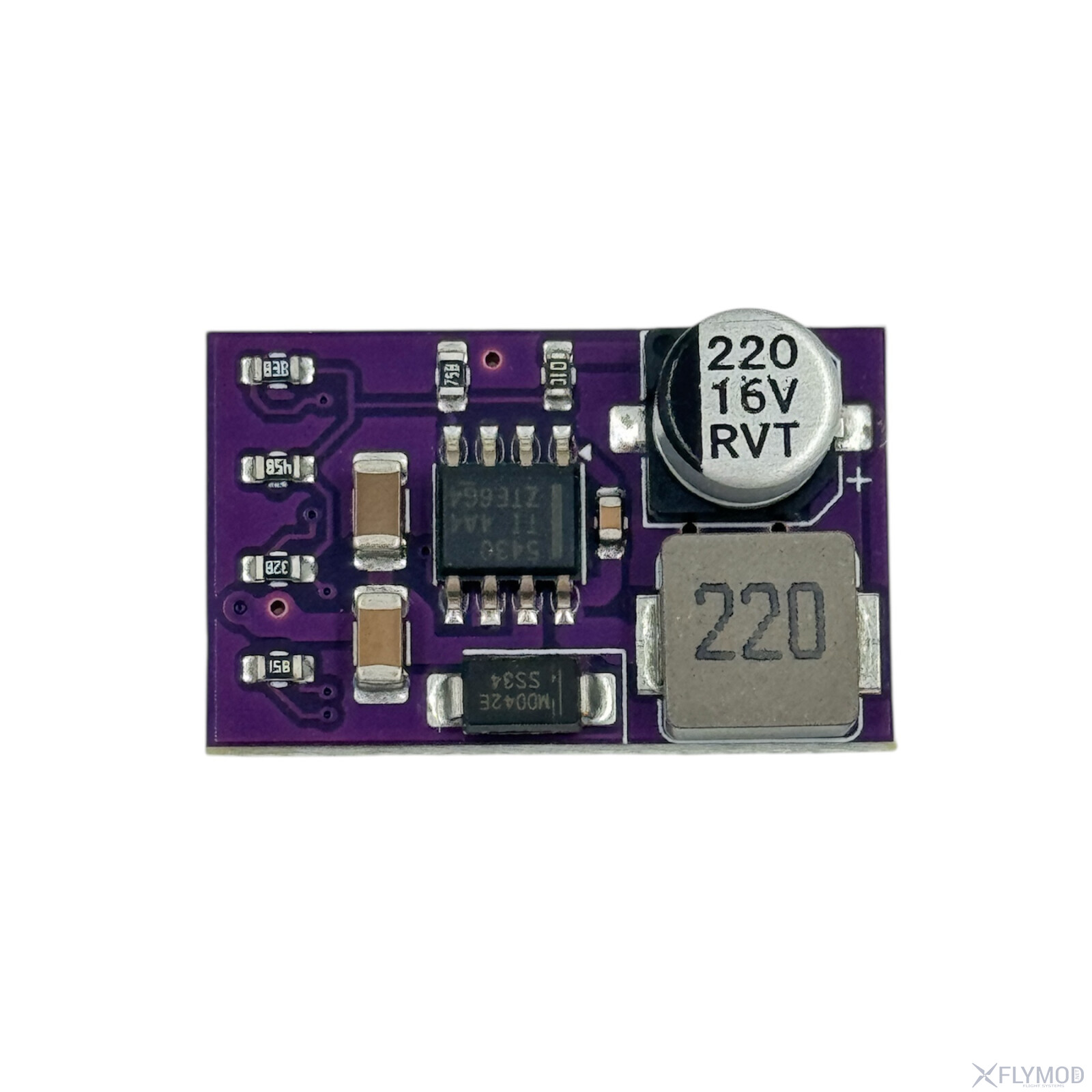

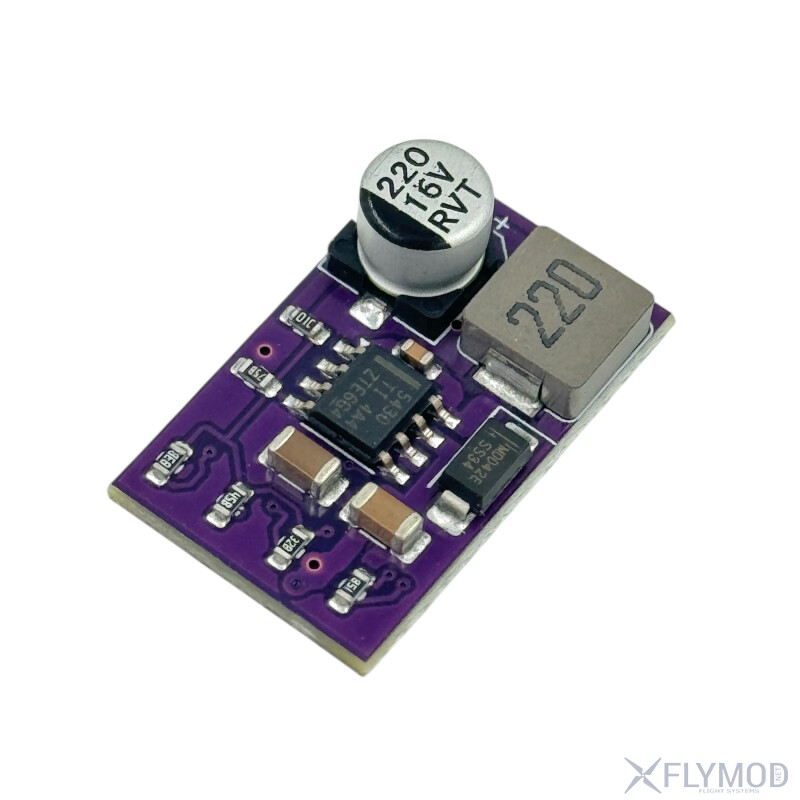

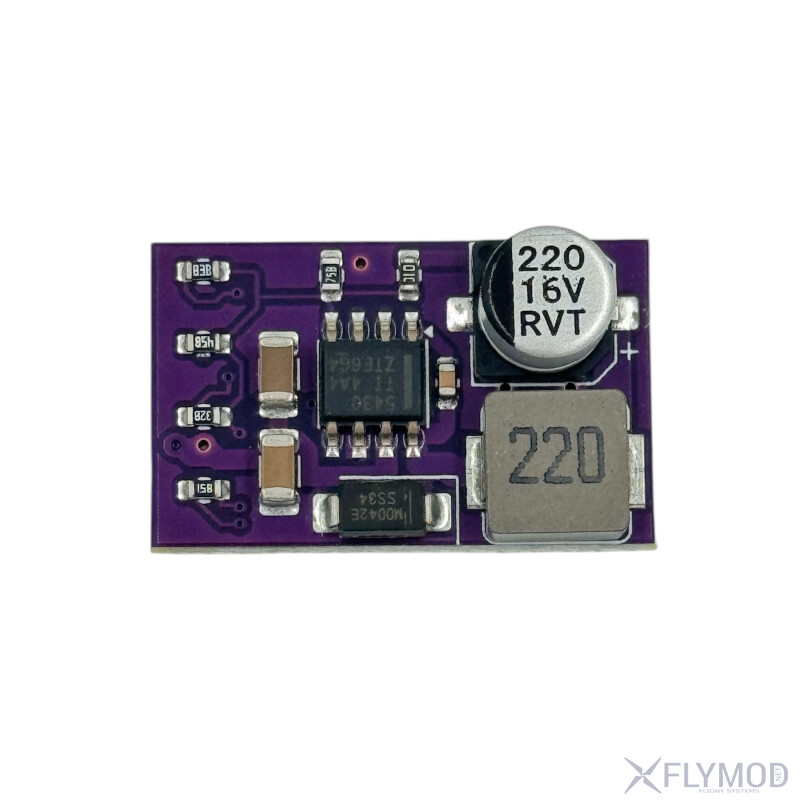

Step-down mini DC-DC switching voltage regulator from FlyMod with an input voltage of up to 36V, and the ability to select an output voltage from 3.3V to 12V, maximum current of 3 Amps.

Features.

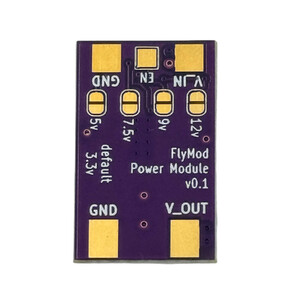

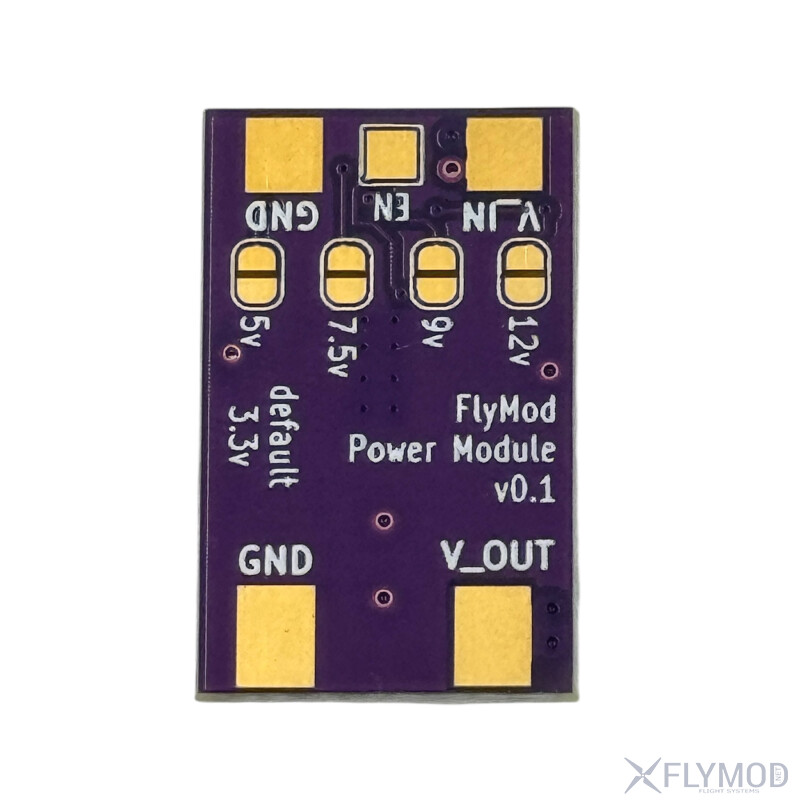

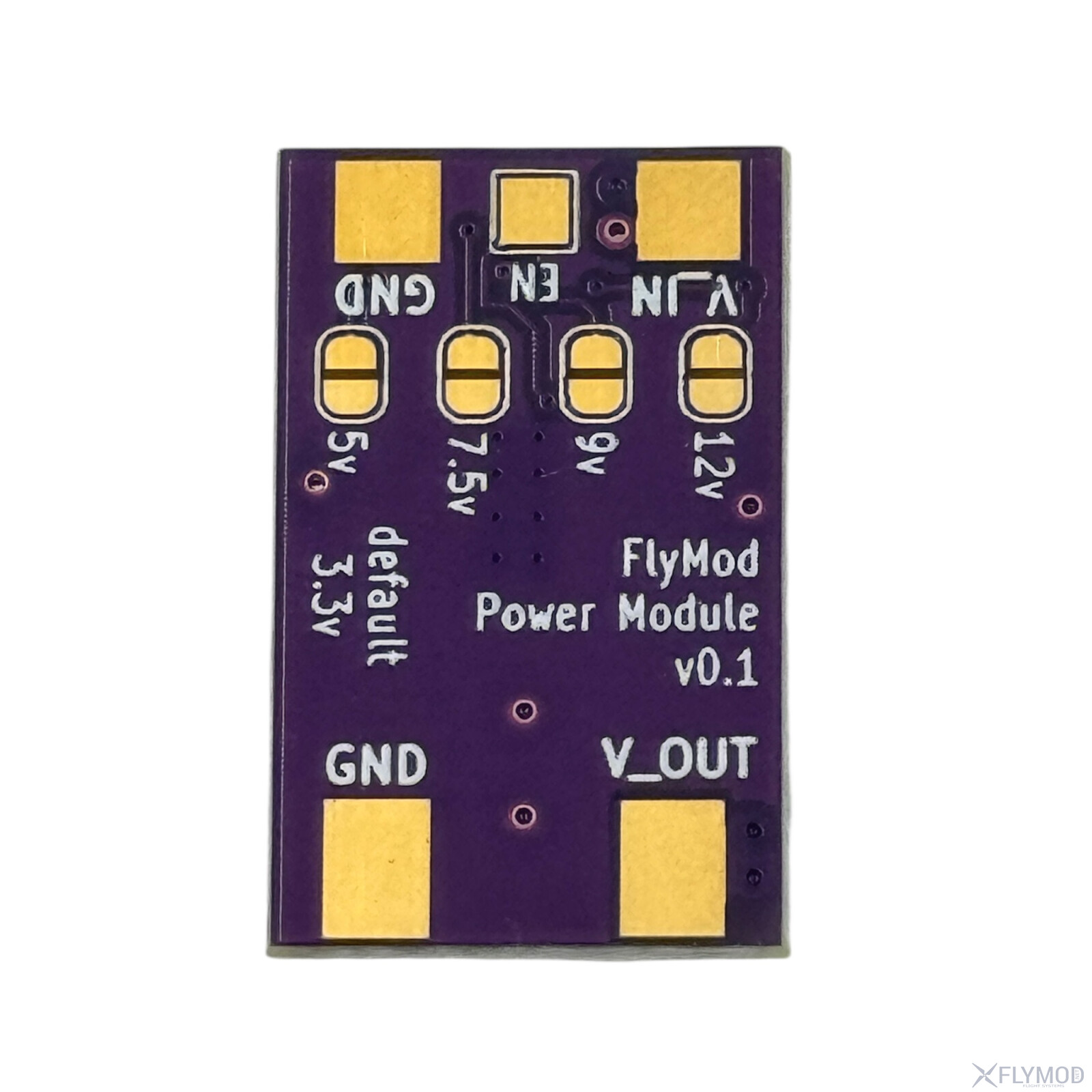

• Choice of output voltage 3.3V (default, jumpers are not soldered), 5V, 7.5V, 9V, 12V (only 1 corresponding jumper is soldered)
• High conversion efficiency, more than 95%
• Up to 3A DC output current
• Possibility to turn off the voltage output via the EN pin on the board. When a low level (GND) is applied to the EN pin, the module will switch to the off state
• Ukrainian development

Characteristics

• Rectification: synchronous
• Input voltage(V_IN): DC 5.5 - 36V (input voltage must be greater than the output voltage)
• Output voltage(V_OUT): DC 3.3V, 5V, 7.5V, 9V, 12V
• Output current: 3A (short-term 4A)
• Output voltage accuracy: 1.5%
• Efficiency: not less than 95%
• Operating frequency: 500KHz
• Operating temperature: -40 to 125 C
• Size: 24 x 15 x 7mm
• Weight: 2.7g
