Transmitter BAYCK ExpressLRS TX4/TX580 433/580Mhz

Price:2 526 uah with VATPrice in USD:60.00

Bonuses will be issued for this product upon purchase

Read more

Brand: BAYCKSKU 17794

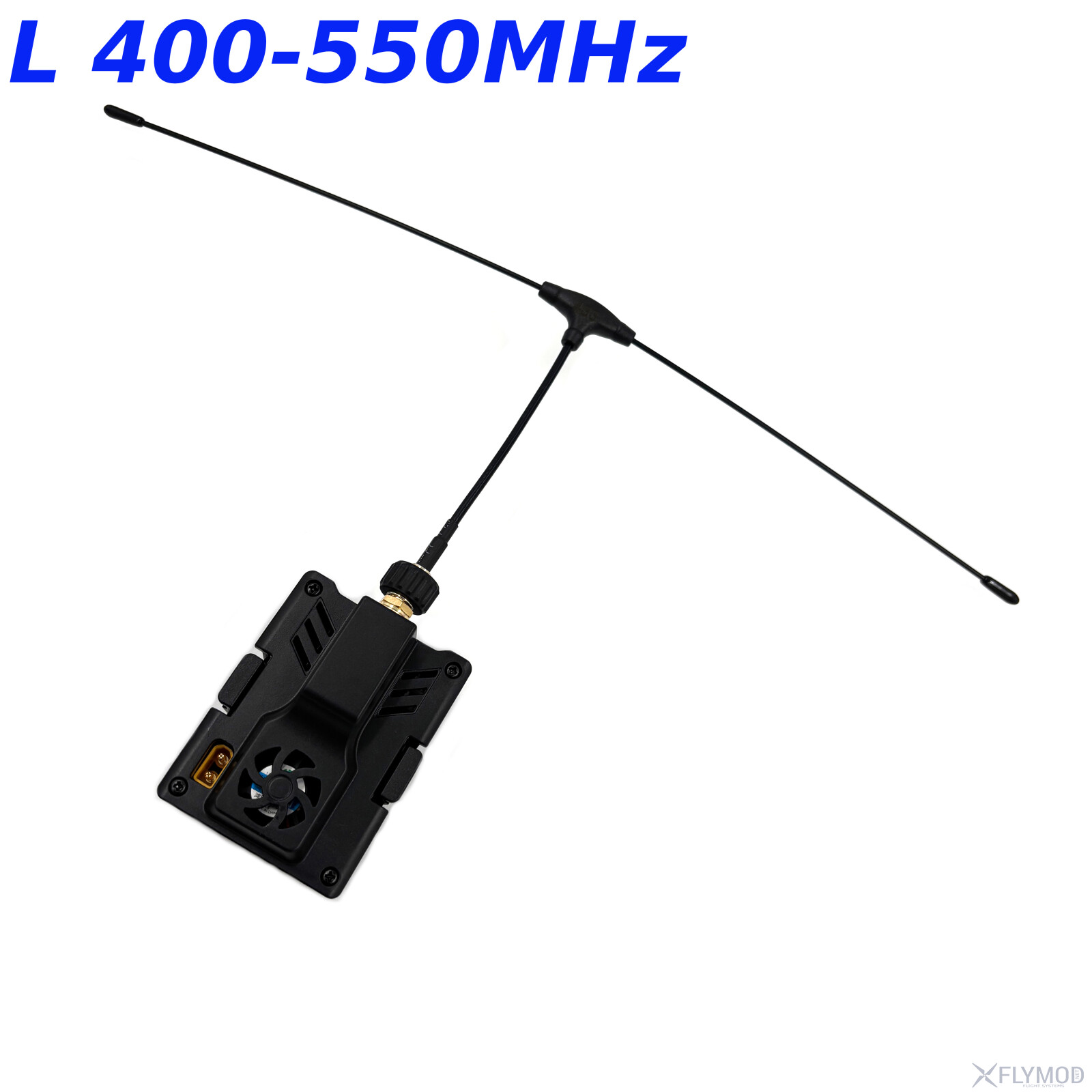

• TX4 (400-550 MHz) L
• TX580 (550-700 MHz) M

Select the option!

Out of stock

Notify when available

Description

TheBAYCK ExpressLRS TX4/TX580 transmitter is designed for wireless data transmission at 433MHz and 580MHz. Thanks to the use of open-source ExpressLRS software, the transmitter provides a stable signal with minimal delay. The module supports transmit power up to 2000mW and has a wide input voltage range from 7 to 30V. For better cooling at high power, the device has a special aluminum radiator. The transmitter is equipped with an SMA connector and supports the plug and play principle.

ATTENTION!!! The BAYCK ExpressLRS TX4/TX580 433/580Mhz transmitter is only compatible with the BAYCK ELRS RX4/RX580 433/580Mhz receiver

Features.

• Two transmission frequencies are available: TX4-433MHz and TX580-580MHz
• High transmission power up to 2000mW
• The module is based on the open-source ExpressLRS software
• Aluminum radiator provides efficient cooling for long-term operation at high power
• Plug and play operation principle simplifies installation and use without additional settings

Specifications.

Model: TX580

• Frequency: 580Mhz
• IC: LR1121+ESP32+TCXO
• Transmission power: 2000mW
• Input power: 7V-30V
• Connector: SMA
• Color : black
• Size: 64*49*35mm
• Weight: 42g (without antenna)

Model: TX4

• Frequency: 433Mhz
• IC: LR1121+ESP32+TCXO
• Transmission power: 2000mW
• Input power: 7V-30V
• Connector: SMA
• Color : black
• Size: 64*49*35mm
• Weight: 42g (without antenna)

Package contents.

• 1 x ExpressLRS BAYCK TX4/TX580 transmitter module (optional)
• 1 x T-shaped antenna

Files

• Target for ExpressLRS TX4/TX580

Photos
