SKYZONE M5F 5" monitor 800x480 with built-in 5.0GHz-5.8GHz receiver for FPV DVR

Name: SKYZONE M5F 5" monitor 800x480 with built-in 5.0GHz-5.8GHz receiver for FPV DVR [5G]
Brand: Skyzone
SKU: 18572
Price: 7127 UAH
Availability: InStock
Rating: 4.9 (14 reviews)

Price:7 127 uah with VATPrice in USD:159.50

Brand: SkyzoneSKU 18572

Description

SKYZONE M5 is a 5-inch FPV monitor with 800x480 resolution, equipped with a high-brightness LCD screen(900Lum) for better visibility in bright light conditions. The built-in 56-channel 5G or 48-channel 5.8G SteadyView receiver combines two signals into one, avoids image tearing and convolution, and makes the image more stable and clear. The cooling system with fan and heat sink effectively dissipates heat to ensure stable operation. The built-in DVR records video in MJPEG 60FPS format to memory cards up to 128GB. The scan function automatically finds the available channel, simplifying setup. The device can be powered by 2S-6S batteries, 18650 Li-ion, or via USB Type-C.

Features

Built-in SteadyView receiver provides stable signal reception and supports 56 channels in 5G version and 48 channels in 5.8G version
5-inch LCD display with 800*480 resolution
Viewing angle of up to 50° allows you to get a wide picture
Built-in cooling system, including a fan and heat sink, effectively dissipates heat and prevents overheating
Channel scan function makes it easy to find an available signal
USB Type-C connector is used for firmware updates and power for glasses
Power supply system supports a range from 2S to 6S
Built-in MJPEG 60FPS video recorder allows you to record video to a memory card up to 128GB

Video review of the SKYZONE M5 5" 800x480 with built-in 5.0GHz-5.8GHz receiver for FPV DVR

Specifications

Display diagonal: 5" inches
Resolution: 800*480
FOV: up to 50°.
Screen type: LCD with high brightness 900Lum
Video format: MJEPG 60FPS
Memory: SD Max 128Gb flash memory

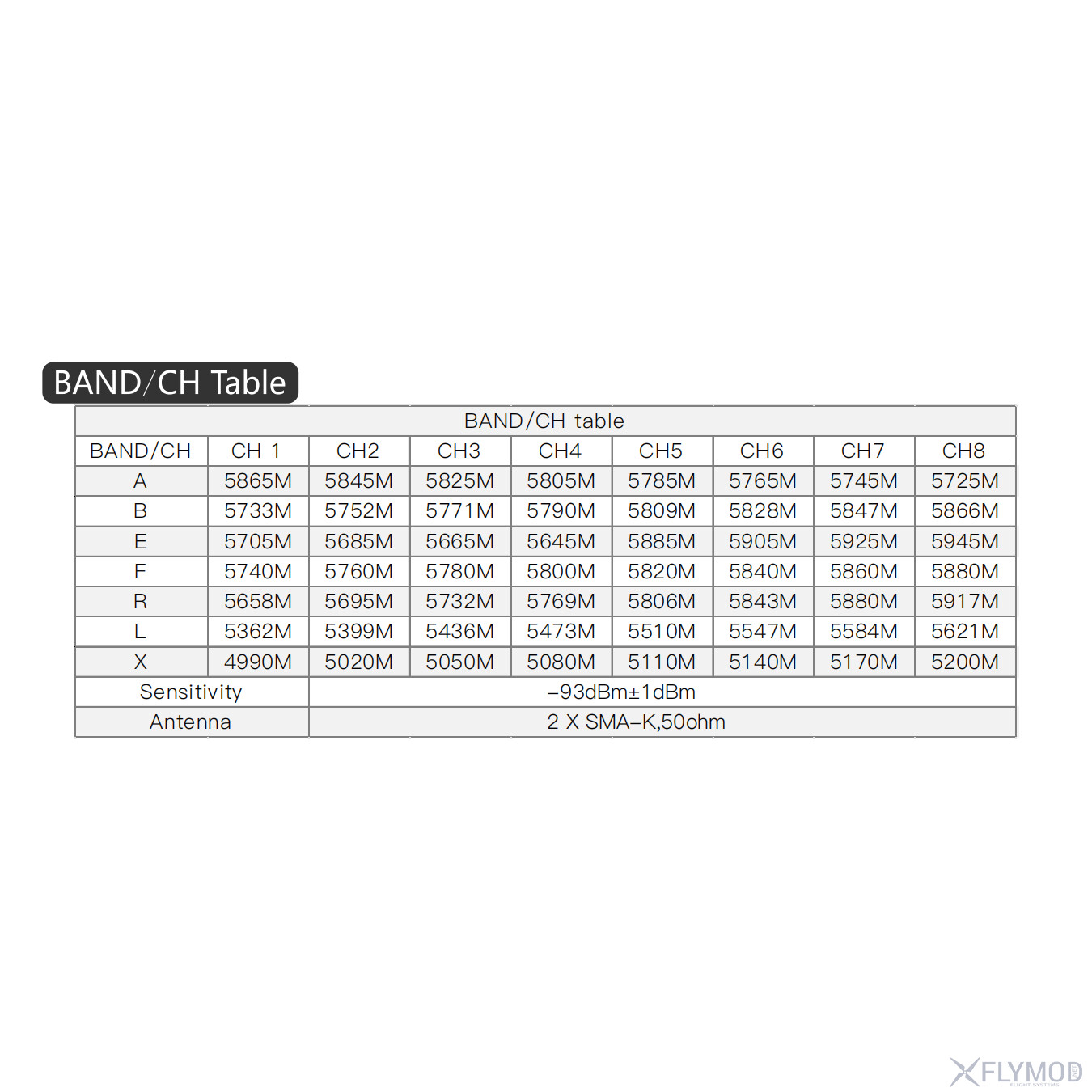

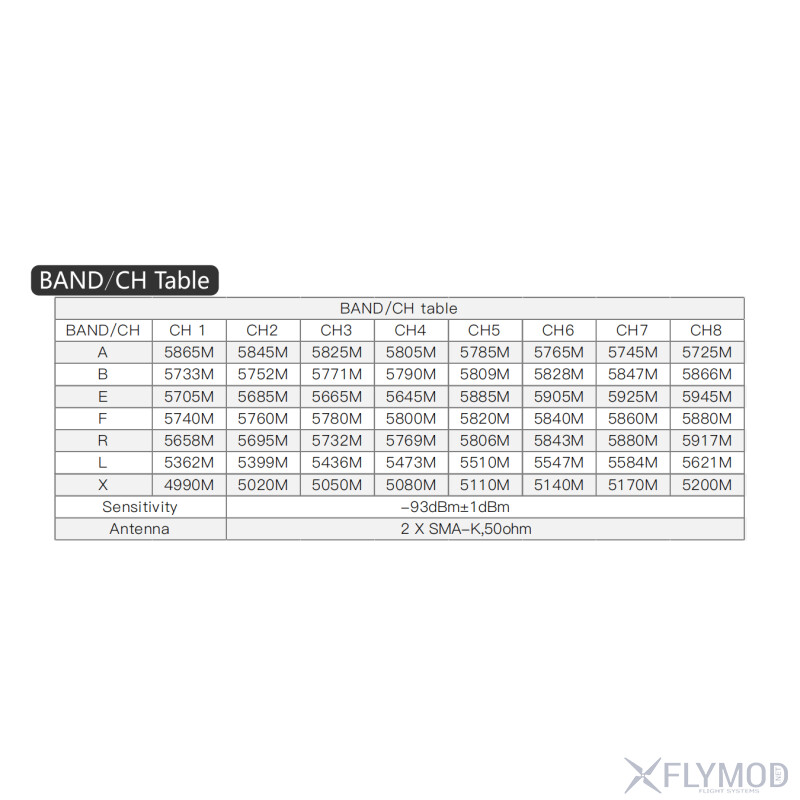

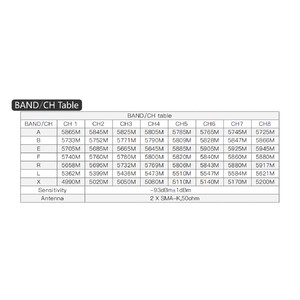

Data reception: 5.0GHz-5.8GHz SteadyView Fusion Receiver (56CH/48CH depending on the version)
Operating voltage: DC 6.5-25.2V/USB 5V/18650 Lion (2S-6S)
Power consumption: 12V/520mA 6.24W
Working time: 1.5 hours (16850, 3000mAh)
Language: Chinese/English
Connector: Type-C-USB (for firmware updates or power points)
Antenna connectors: 2xSMA-K
Dimensions: 135x88x16mm
Weight: 165g (without antennas)

Package

1 x SKYZONE M5 5" monitor 800x480 with built-in 5.0GHz-5.8GHz receiver for FPV DVR
2 x 5.0GHz 2dB antennas
1 x video/audio cable
1 x USB-C cable
1 x XT60-DC5.5*2.1 power cable
1 x user manual
