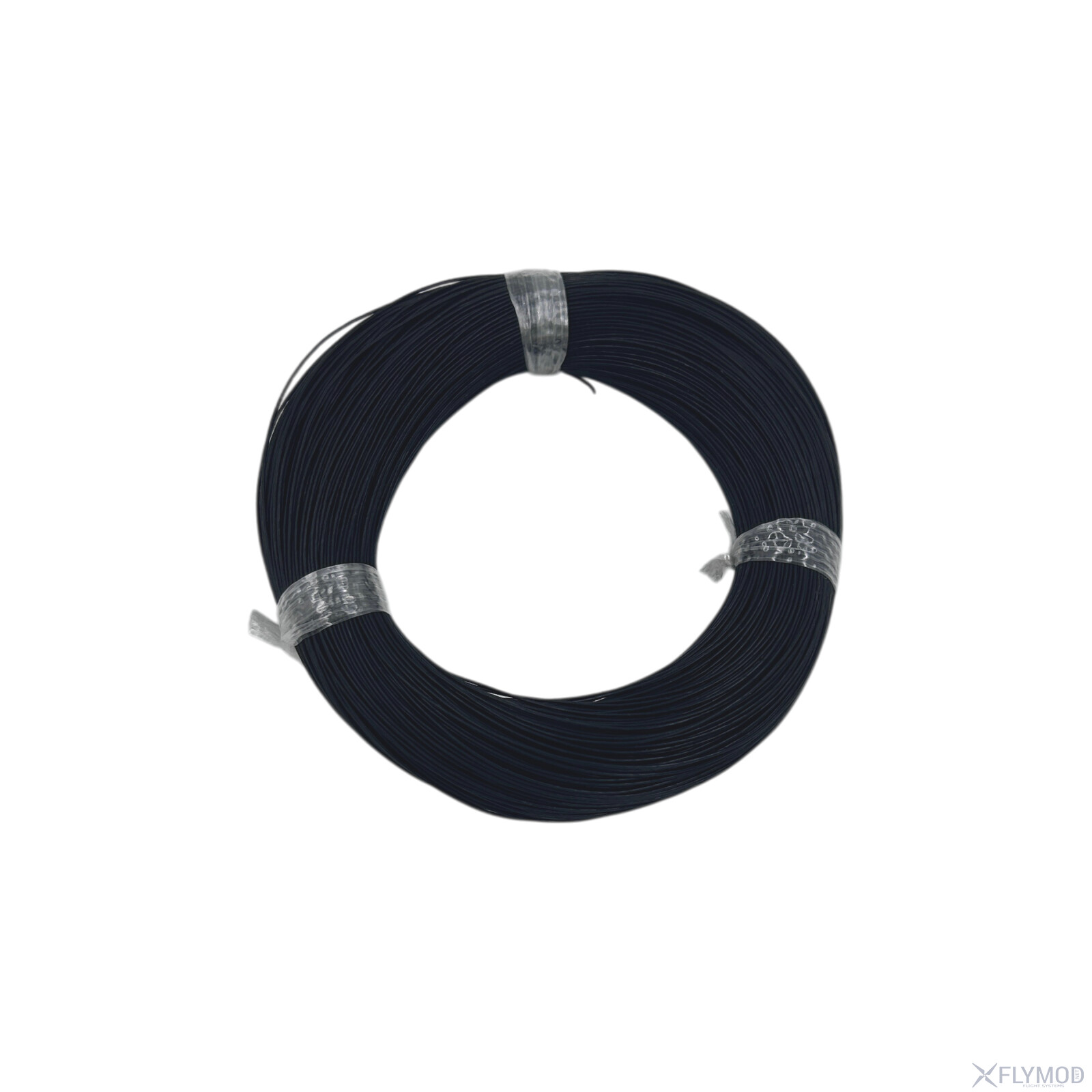

Heat-resistant PTFE cable 7/0.08mm² 32AWG thin

Price:38 uah with VATPrice in USD:0.88

Bonuses will be issued for this product upon purchase

Read more

SKU 13861

• Красный
• Черный
• Желтый
• Белый
• Синий
• Зеленый

Select the option!

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stock

Notify when available

Description

PTFE/Teflon cables have a number of excellent properties, such as resistance to cracking in the event of frequent temperature changes, resistance to most aggressive chemical environments (acids, alkalis, solvents, oil, and gasoline), and an optimal outer diameter for space-saving installation of electronic components.

PTFE/Teflon cables are most suitable for use in equipment for high-frequency signals. The uniformity of the insulation thickness around the conductor and the very low dielectric constant of PTFE allow high-frequency signals to be transmitted with minimal loss compared to other wires, resulting in high quality signal transmission.

Features.

• Do not melt during soldering and high temperatures
• Durable insulation prevents copper from breaking inside the wire, unlike silicone cable
• Very thin. Due to the use of thin film-type insulation
• Quite flexible

PTFE very thin cable 7/0.08mm² 32AWG is used for low-current systems, such as power supply of FPV camera, video transmitter, receiver.

Pleasenote : The price of 1 item is for 1 meter.

When ordering more than 1 pc. the wire will be delivered in one piece.

Specifications.

• Material: PTFE
• Current: up to 1A
• Cable diameter: 0.05 mm 32awg
• Number of conductors in cross-section: 7
• The diameter of the cores: 0.08 mm² 40awg
