Video transmission and reception module via FC optics TX/RX

Price:943 uah with VATPrice in USD:22.50

Bonuses will be issued for this product upon purchase

Read more

SKU 18284

• RX
• TX

Select the option!

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stock
Notify when available

Description

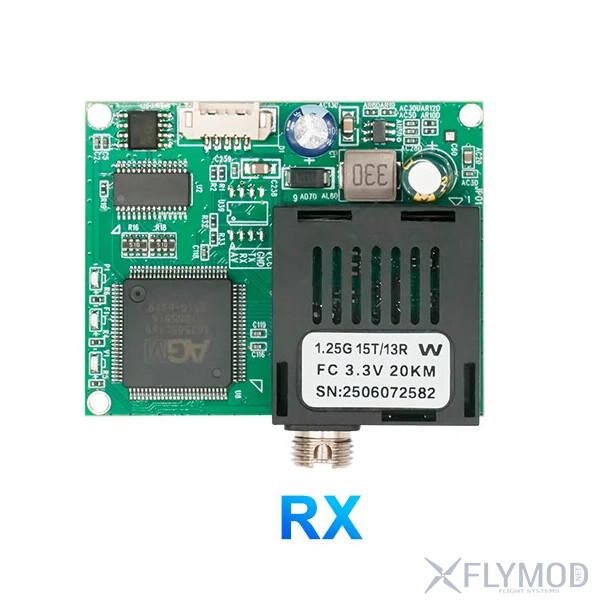

TheTX/RX video TX/RX fiberoptic transmission module is designed for fiber optic transmission of analog or HD video signals from drones and other systems. It supports the transmission of additional signals: TTL, RS485/422/232, audio, and switching signals. It uses a single-fiber FC interface with a wavelength of 1310/1550nm and provides stable operation over a distance of more than 20km. It operates in a wide range of DC 6-57V supply voltage. Compatible with PAL and NTSC video formats. The compact size of 51×42mm with mounting holes simplifies integration into systems with limited space.

Features.

• Operates in a wide voltage range of DC 6-57V
• Transmits signal over 20 km via single-fiber FC interface
• Compatible with PAL and NTSC video formats
• Compact size 51×42mm with easy installation

Specifications.

• Operating voltage: DC-6~57V
• Working power: ≤2.1W
• Transmission speed: 1.25G
• Fiber optic interface: Single-fiber FC
• Transmission distance: ≥20KM
• Wavelength: 1310nm/1550nm
• Video protocol: PAL/NTSC
• Positioning hole diameter: 3mm
• Mounting holes: horizontal 47mm/vertical 36.5mm
• Dimensions: 51*42mm
• Weight: 10g

Package contents.

• 1 x video signal receiving module via FC optics RX (optional)
• 1 x video signal transmission module via FC optics TX (optional)
