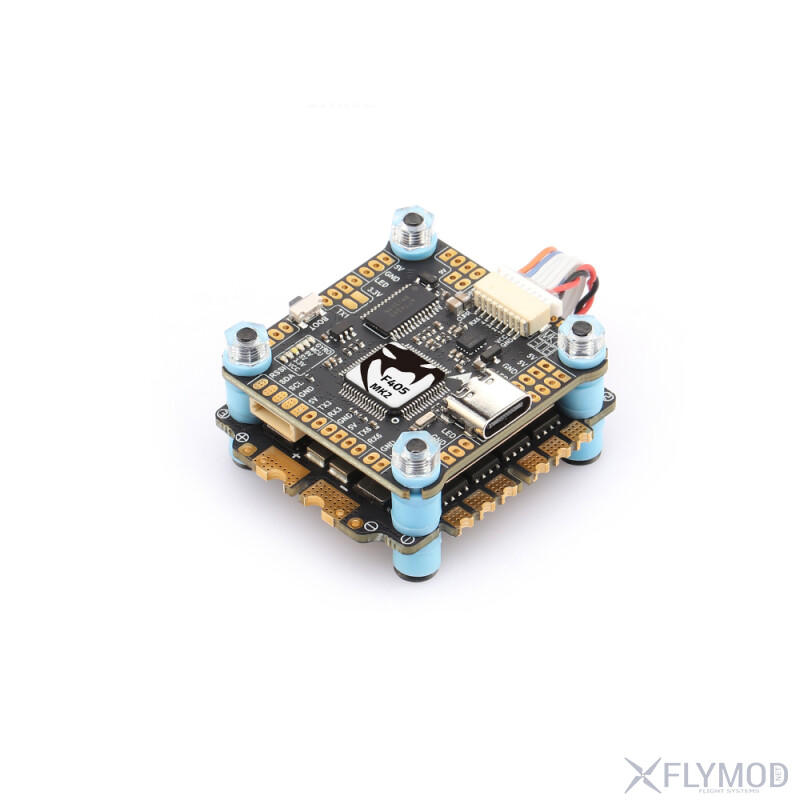

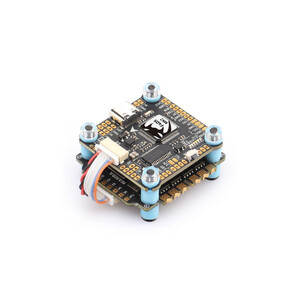

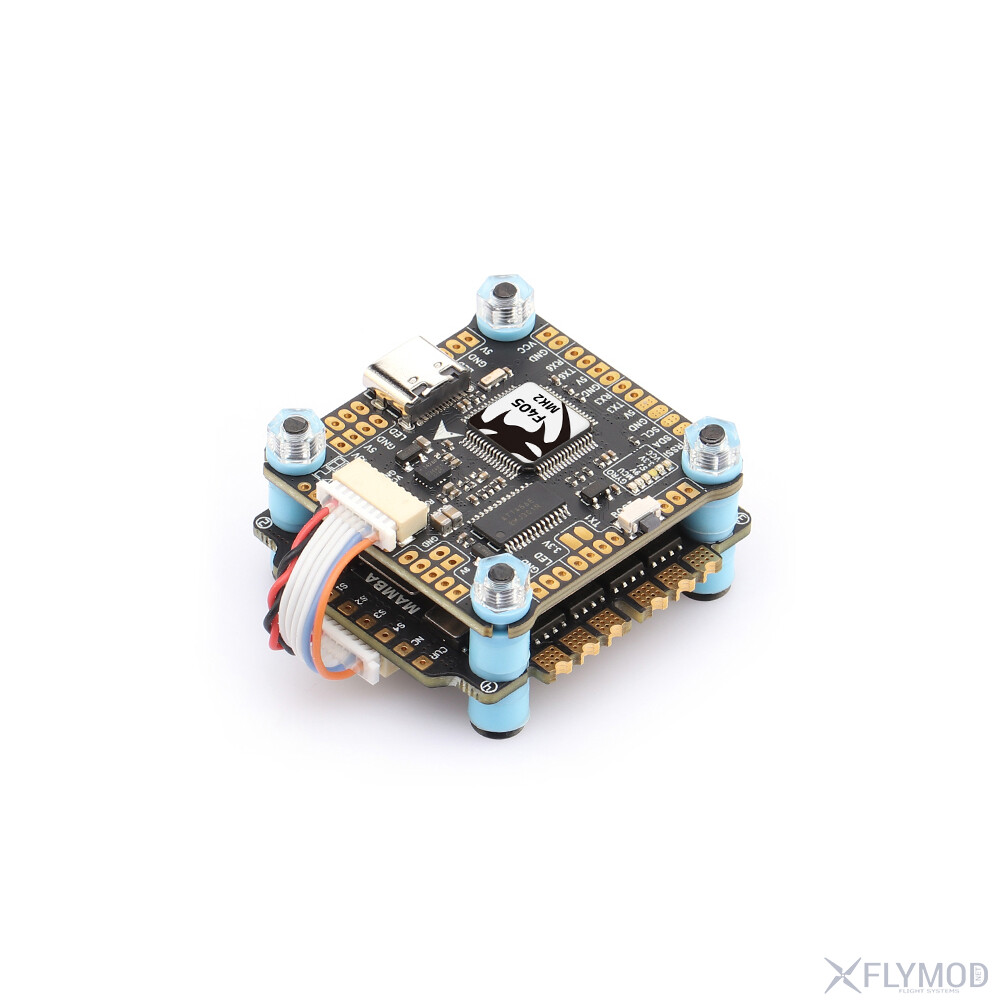

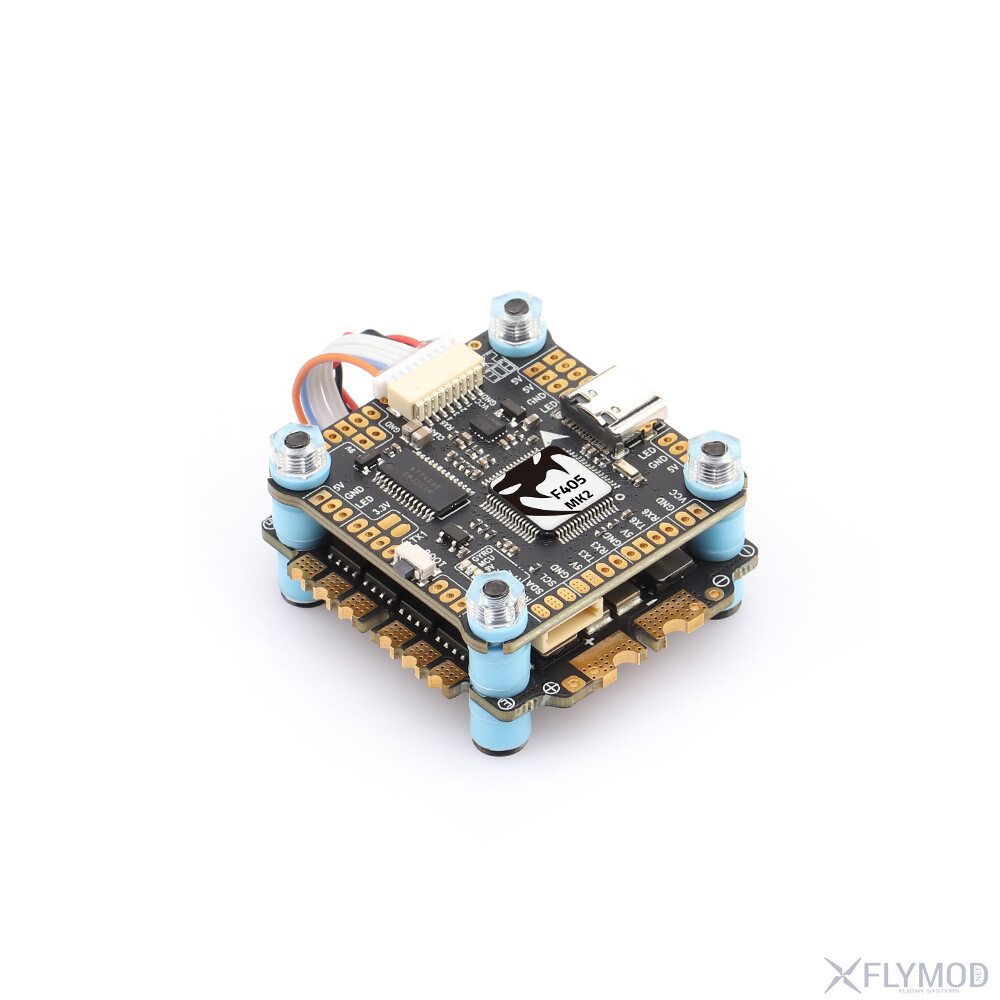

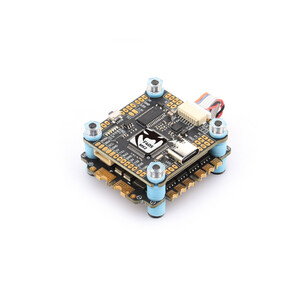

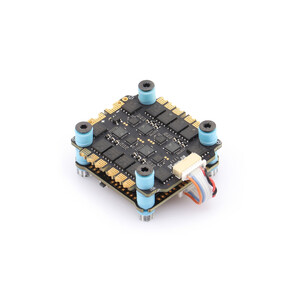

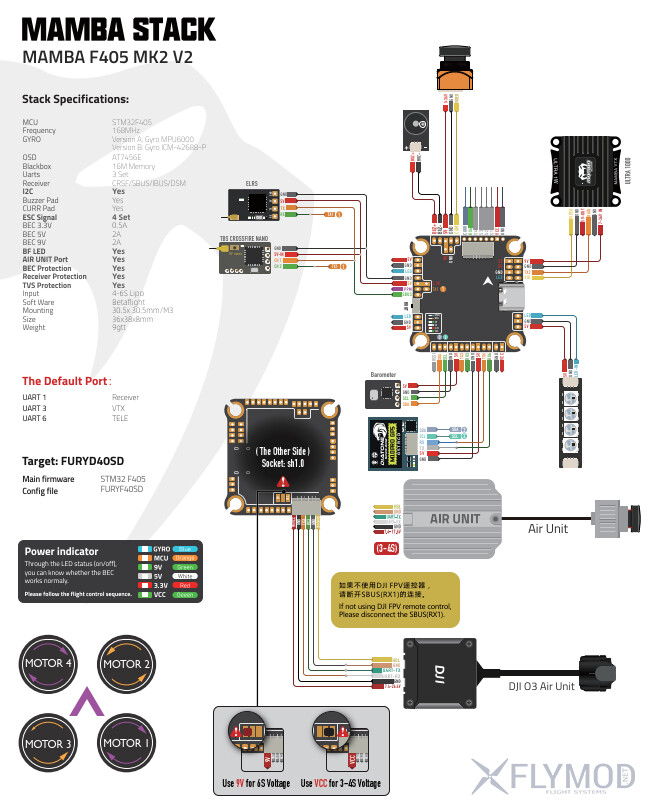

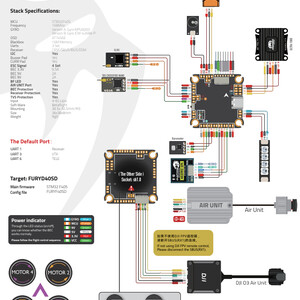

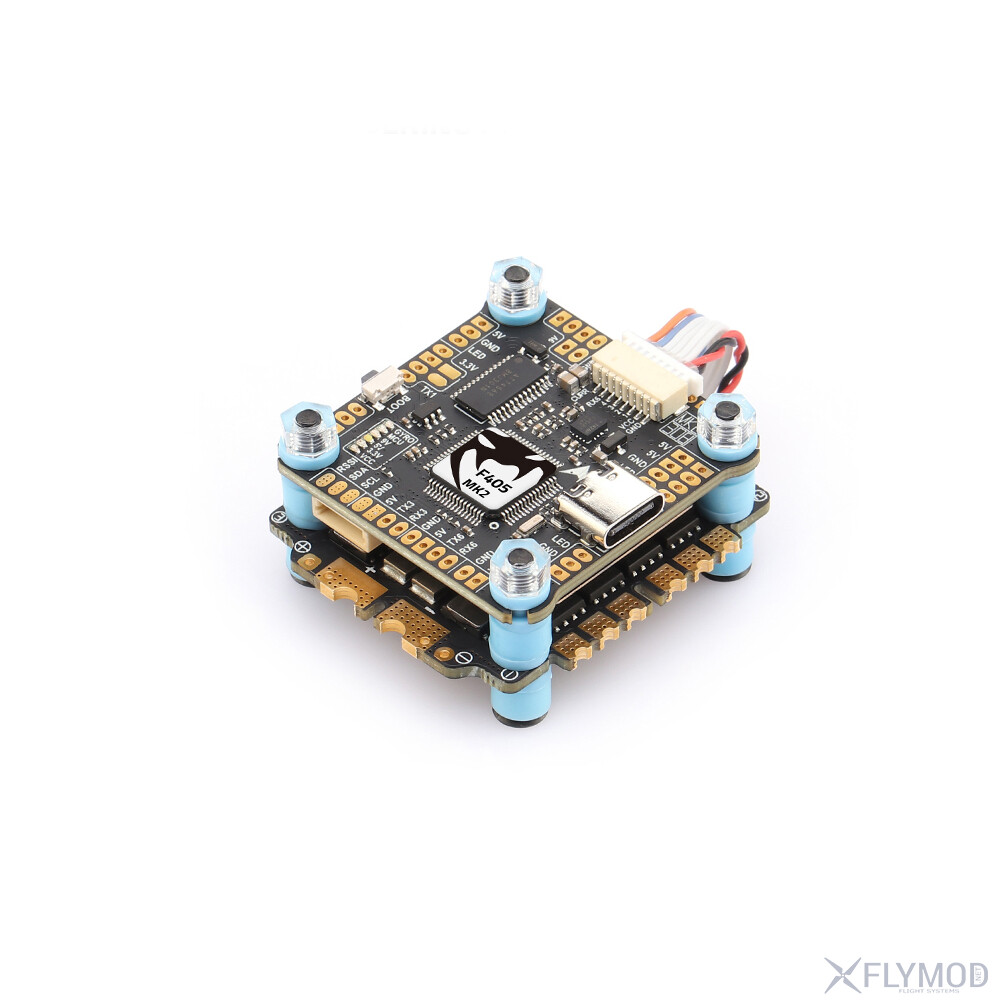

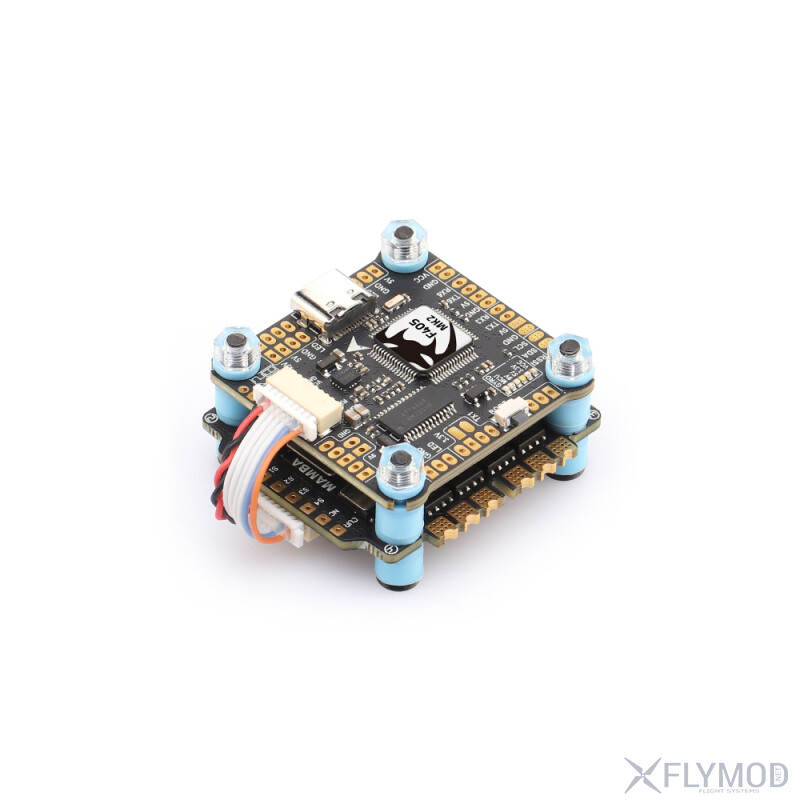

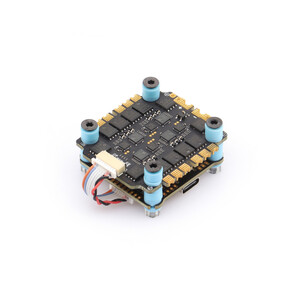

The stack consists of the MAMBA F405 MK2 V2 flight controller and the F65 BLS 4in1 speed controller, which ensures stable operation of the quadcopter on 4-6S LiPo batteries. The controller is based on an STM32F405 processor with an ICM-42688-P gyroscope and support for BetaFlight firmware. A 16MbBlackbox flash memory is provided for data storage, and the AT7456E OSD allows you to display real-time telemetry. Peripherals are powered via built-in BEC lines with 3.3V, 5V and 9V outputs with overload protection. The ESC supports DShot300/600 protocols and can withstand a constant current of 65A per channel with a peak current of up to 75A. The design is equipped with TVS protection and is compatible with most types of receivers and peripherals.
Features.
STM32F405 processor with a frequency of 168MHz and ICM-42688-P gyroscope
Integrated 16Mb Blackbox memory and AT7456E OSD
Built-in BEC lines: 3.3V/0.5A, 5V/2A, 9V/2A with protection
Support for CRSF, SBUS, IBUS, DSM receivers and 3 UART ports

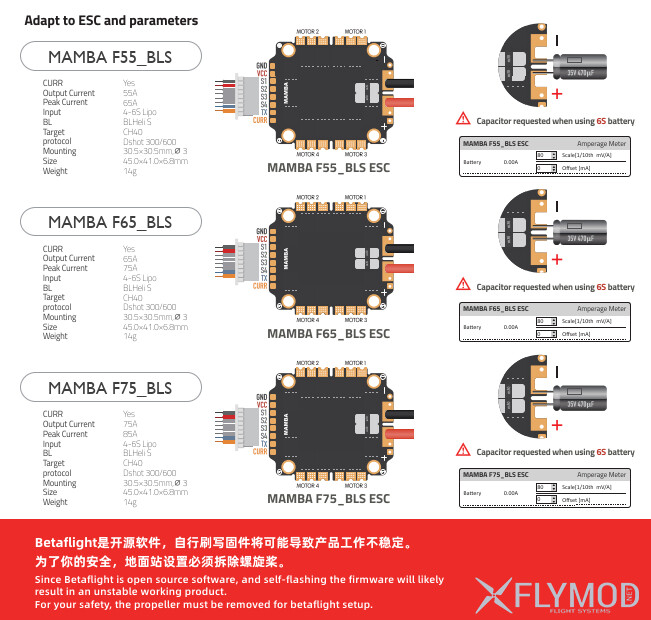

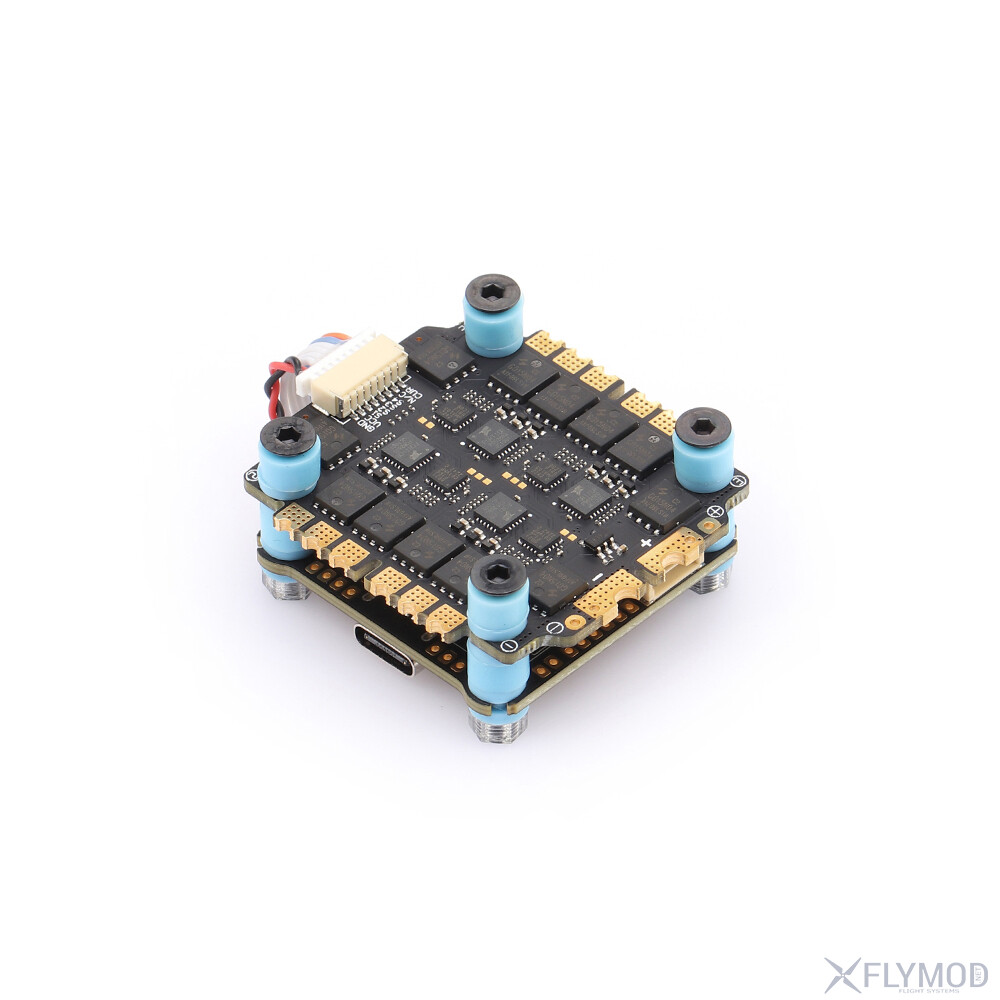

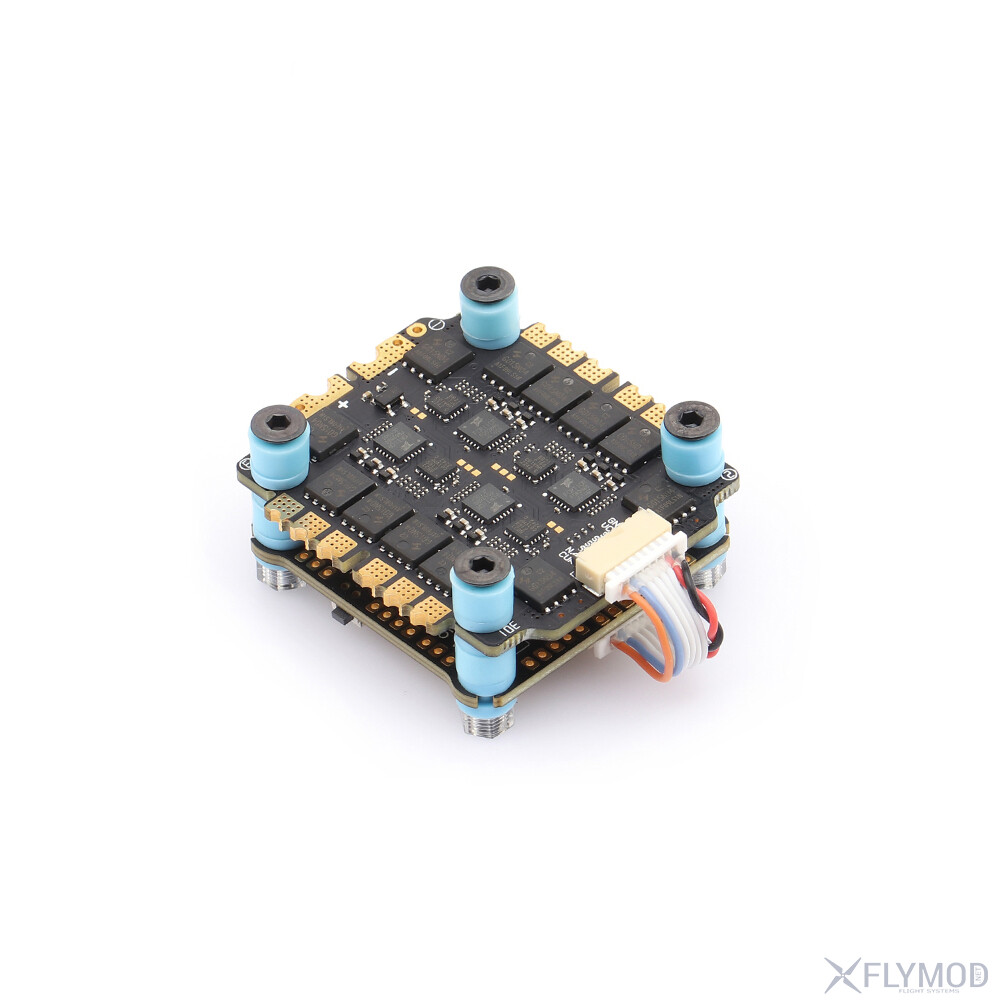

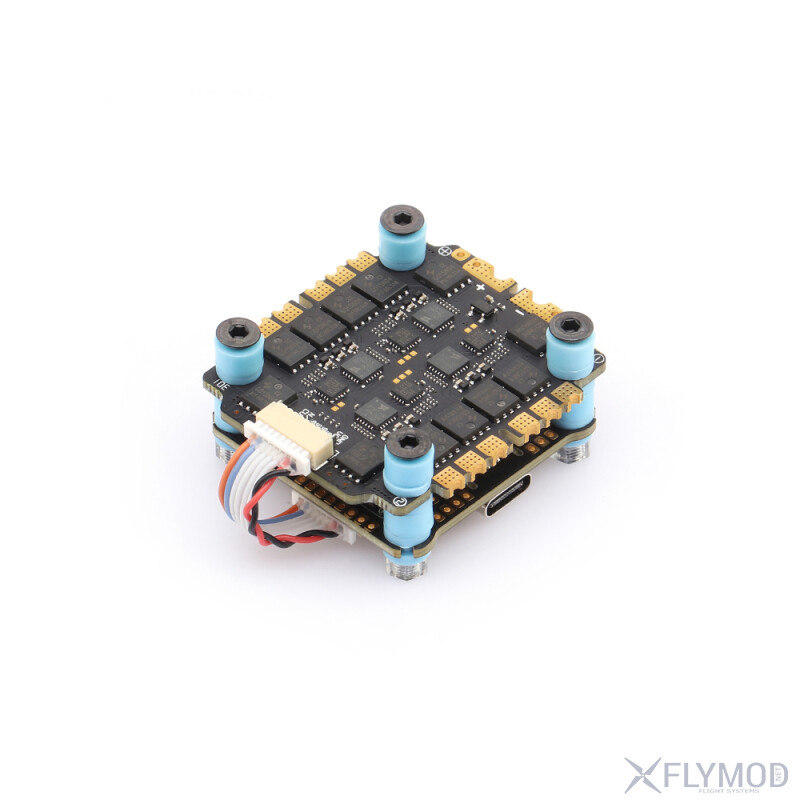

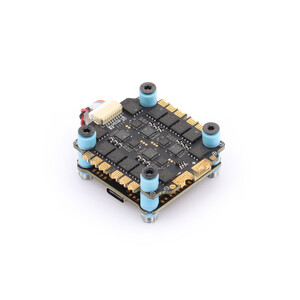

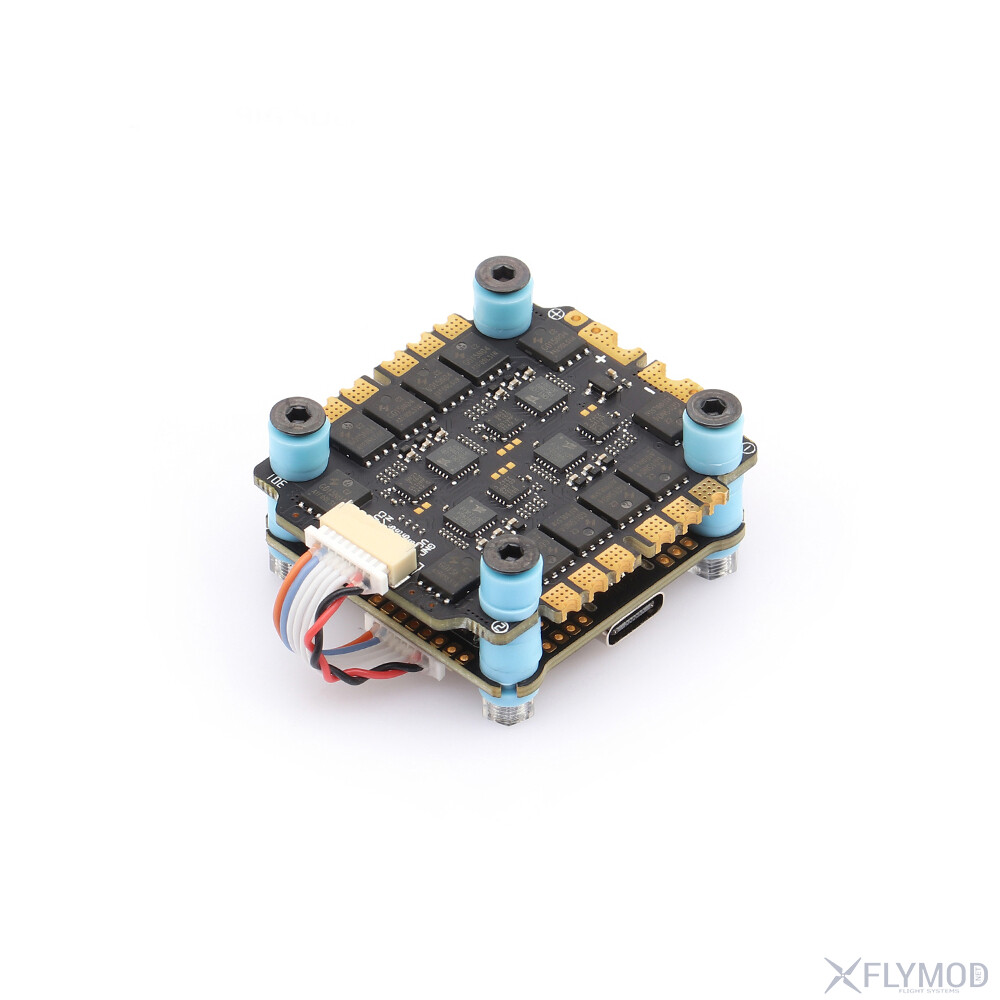

4IN1 speed controller with 65A constant current per channel and 75A peak current
Compatible with 4-6S LiPo power supply and DShot300/600 protocols
