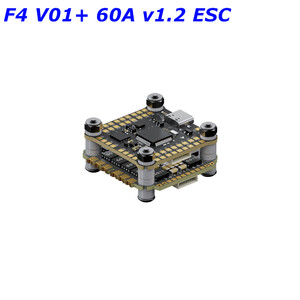

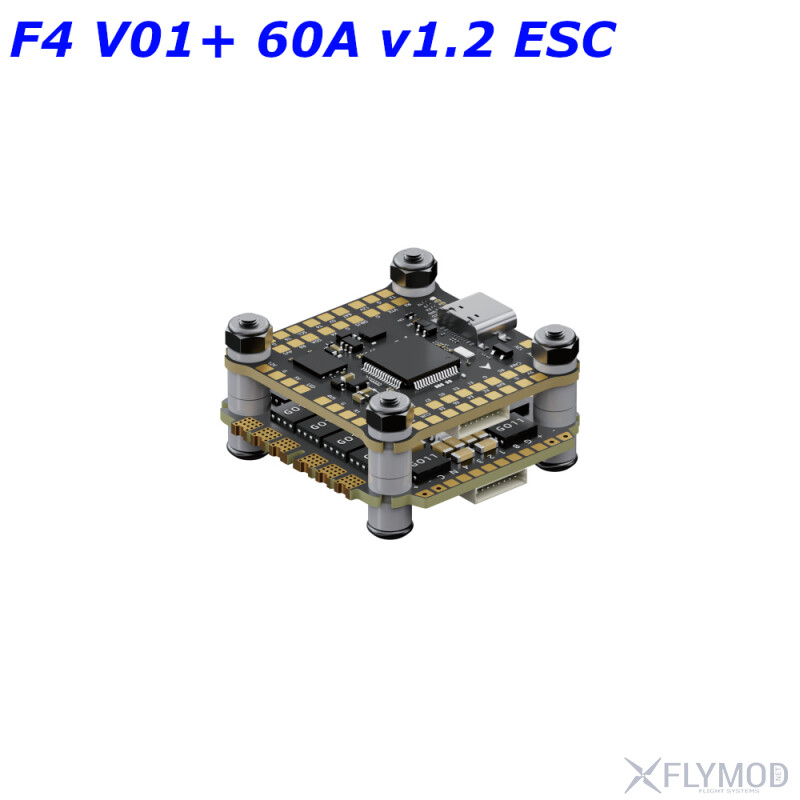

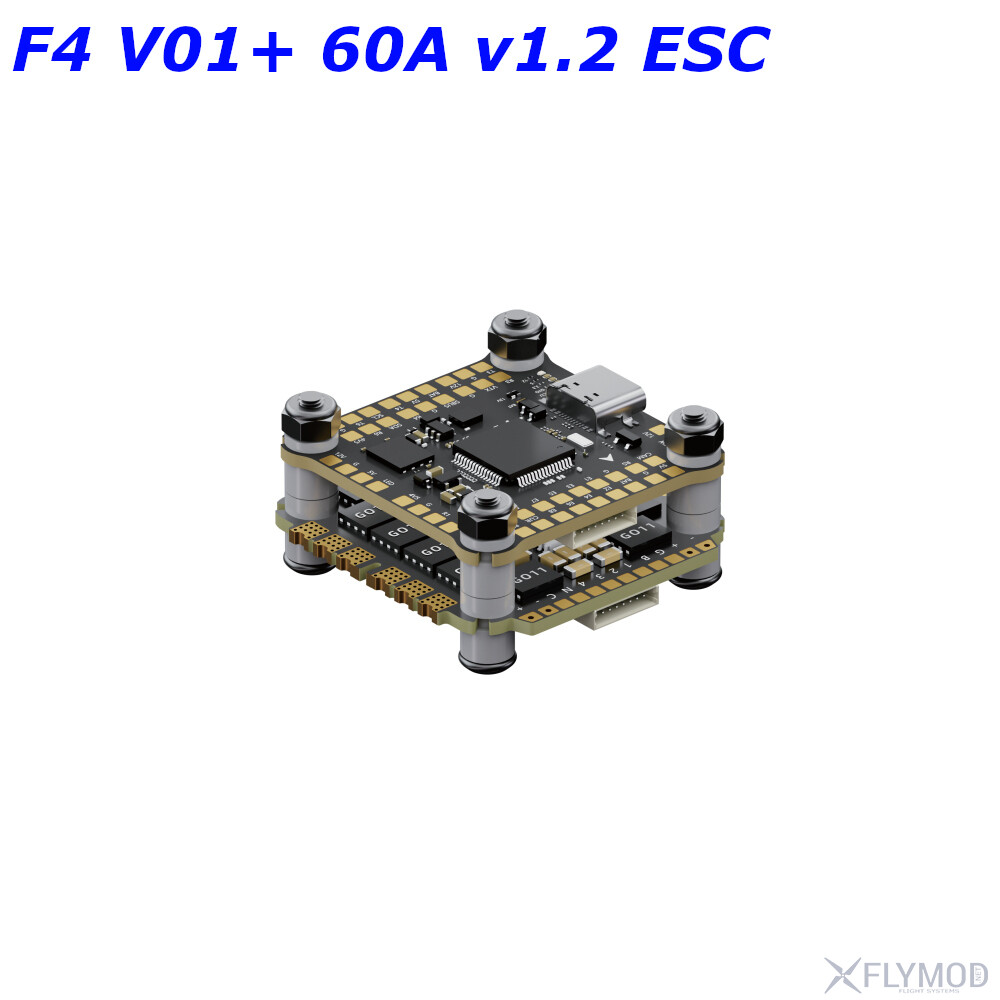

TheFlyFishRC F4 V01 flight control stack is based on the STM32F405RGT6 processor with a clock frequency of 168MHz and supports Betaflight firmware. The board has 6 UART ports, is compatible with CRSF, SBUS, IBUS, and DSM receivers, and is equipped with an ICM270 gyroscope and an AT7456EOSD module. The built-in 16MB flash memory allows you to store black box data for analysis. The FlyFishRC V1.2 50A/60A ESC, supports PWM and DShot300/600 control protocols. Both modules have a standard 30.5×30.5mm mounting pattern, are DJI O3 compatible, and are equipped with CURR, LED, and TVS protection.
Features
STM32F405RGT6 processor with a frequency of 168MHz provides stable flight data processing and compatibility with Betaflight firmware
Supports power supply from 2S to 8S LiPo (7.4-33.6V)
Equipped with ICM270 gyroscope and AT7456E OSD chip
Rated for 50A DC for the speed controller (55A peak) and 60A for the 60A (65A peak), also supports PWM, DShot300/600 protocols
Specifications
FlyFishRC F4 V01 flight controller
Processor: STM32F405RGT6
Frequency: 168MHz
Gyroscope: IBM270
Barometer: no
OSD: AT7456E
Blackbox: 16Mb flash memory
UART ports: 6 (USB occupies UART2)
Support for receivers: CRSF/SBUS/IBUS/DSM
Input: 2-8S lipo (7.4-33.6V)
BEC1: 5V/3A
BEC1: 12V/3A
Motor: 8 Set
Buzzer Pad: supported
CURR Pad: yes
LED: yes
12C: yes
DJI 03 air unit: yes
TVS protection: yes
Firmware: BetaFlight
Mounting scheme: 30.5*30.5mm/M3
Weight: 9.6g
Speed controller ESC FlyFishRC V1.2 50A/60A
MOSFTE: G011N04
Main controller: EFM8BB21
Shutter driver: SA6288
Input voltage: 7.4V-33.6V (2~8S Lipo)
DC current: (optional)
50А
60А
Peak current: (optional)
55А
65А
CURR: yes
BEC: no
Protocol: PWM/Dshot 300/600
BL: BLS
Target: GH40
Mounting scheme: 30.5*30.5mm/M3
Weight: 15.6g
Package contents.
1 x FlyFishRC F4 V01 flight controller
1 x ESC FlyFishRC V1.2 50A/60A speed controller (optional)
Brand: FlyFishRCSKU 18205
