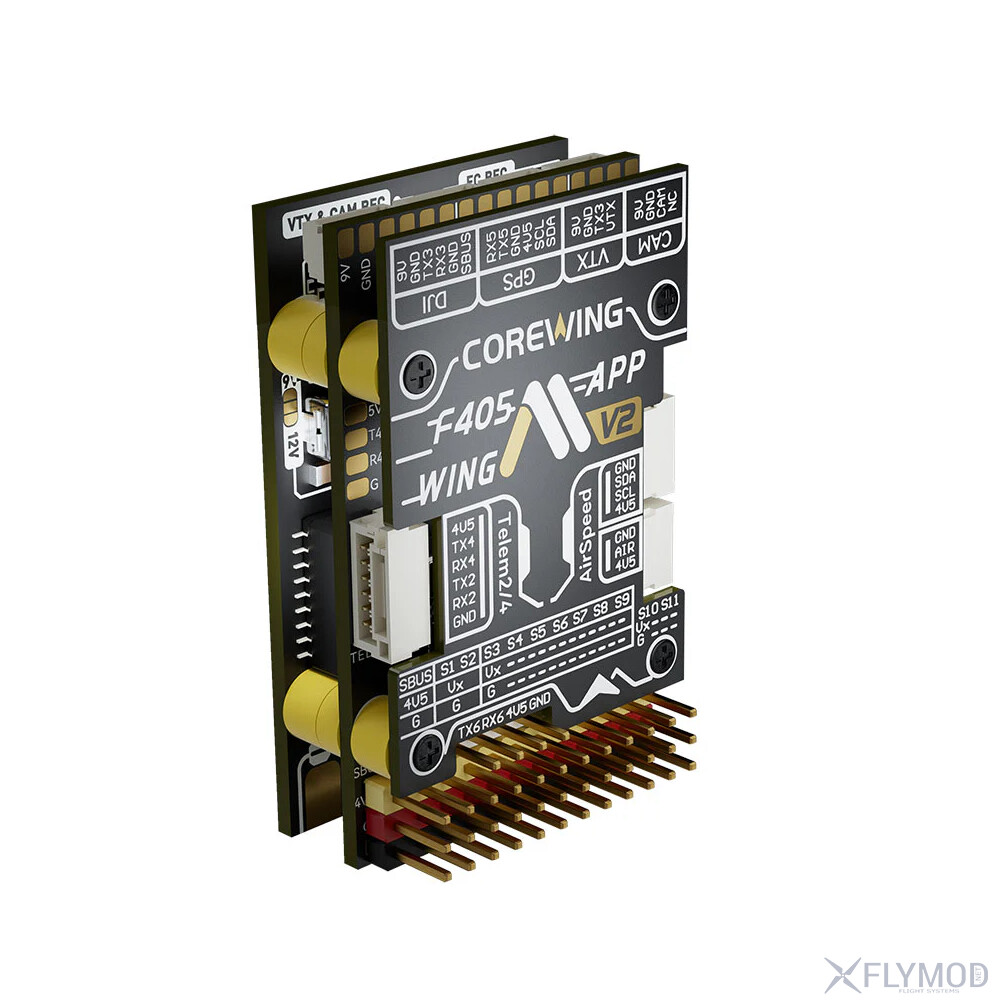

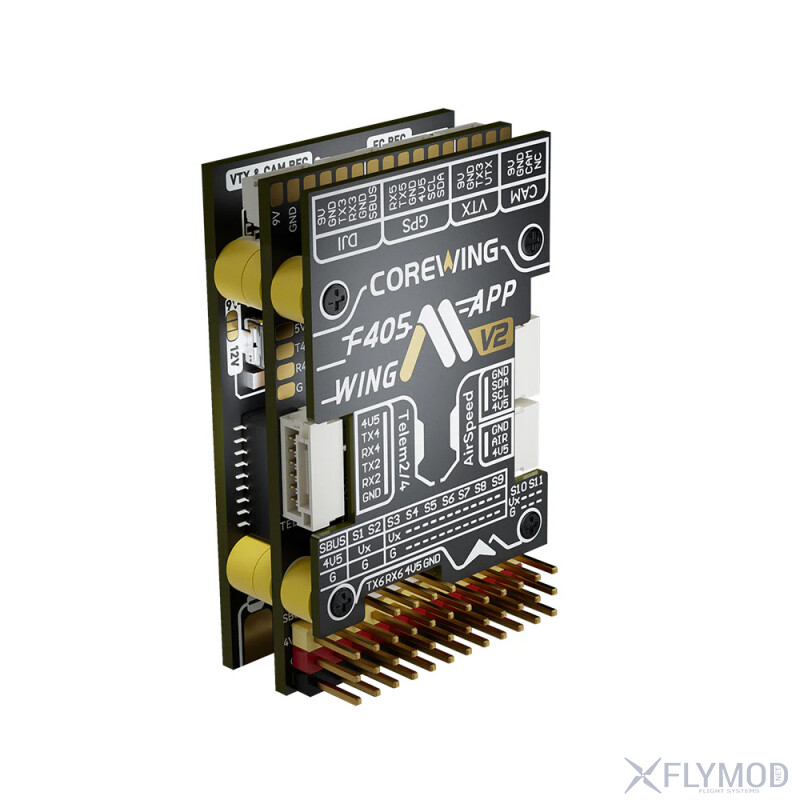

COREWING F405 Wing V2 flight control stack consists of three components: a flight controller, a power distribution board, and a USB/wireless interface. The flight controller is equipped with a high-performance SMT32F405 processor with a frequency of 168MHz and 1MB memory. The ICM-42688-P gyroscope and SPA06-003 barometer contribute to precise control and stabilization during flight. A large number of ports allows you to connect any necessary modules and sensors. Full compatibility with INAV and ArduPilot firmware makes it more versatile in application. The power distribution board supports input voltages of 10-28V and is equipped with a built-in current sensor with a continuous current of 90A and a peak current of 215A. The three independent BEC outputs provide a stable voltage and guarantee reliable power for various components and devices. The wireless communication board enables Wi-Fi or Bluetooth control, which allows you to configure settings using smartphone apps without the need for a computer connection. Built-in LEDs indicate the board's charge level, allowing you to quickly check the power status.
Features

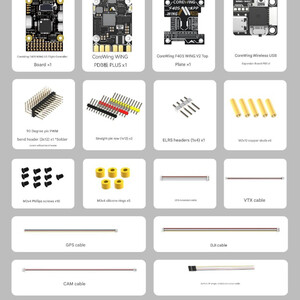

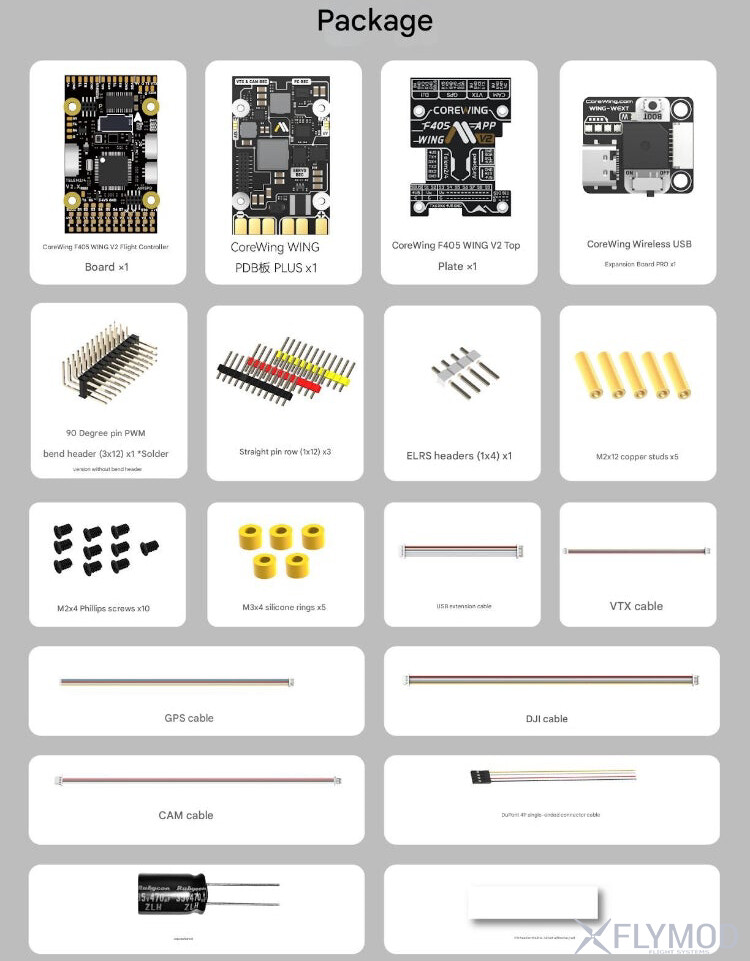

Versatile three-component design that includes a flight controller, power distribution board, and wireless communication board
High-performance SMT32F405 processor with ICM-42688-P stabilizer and SPA06-003 barometer ensures accurate and fast control
Fully compatible with INAV and ArduPilot firmware, uses INAV by default

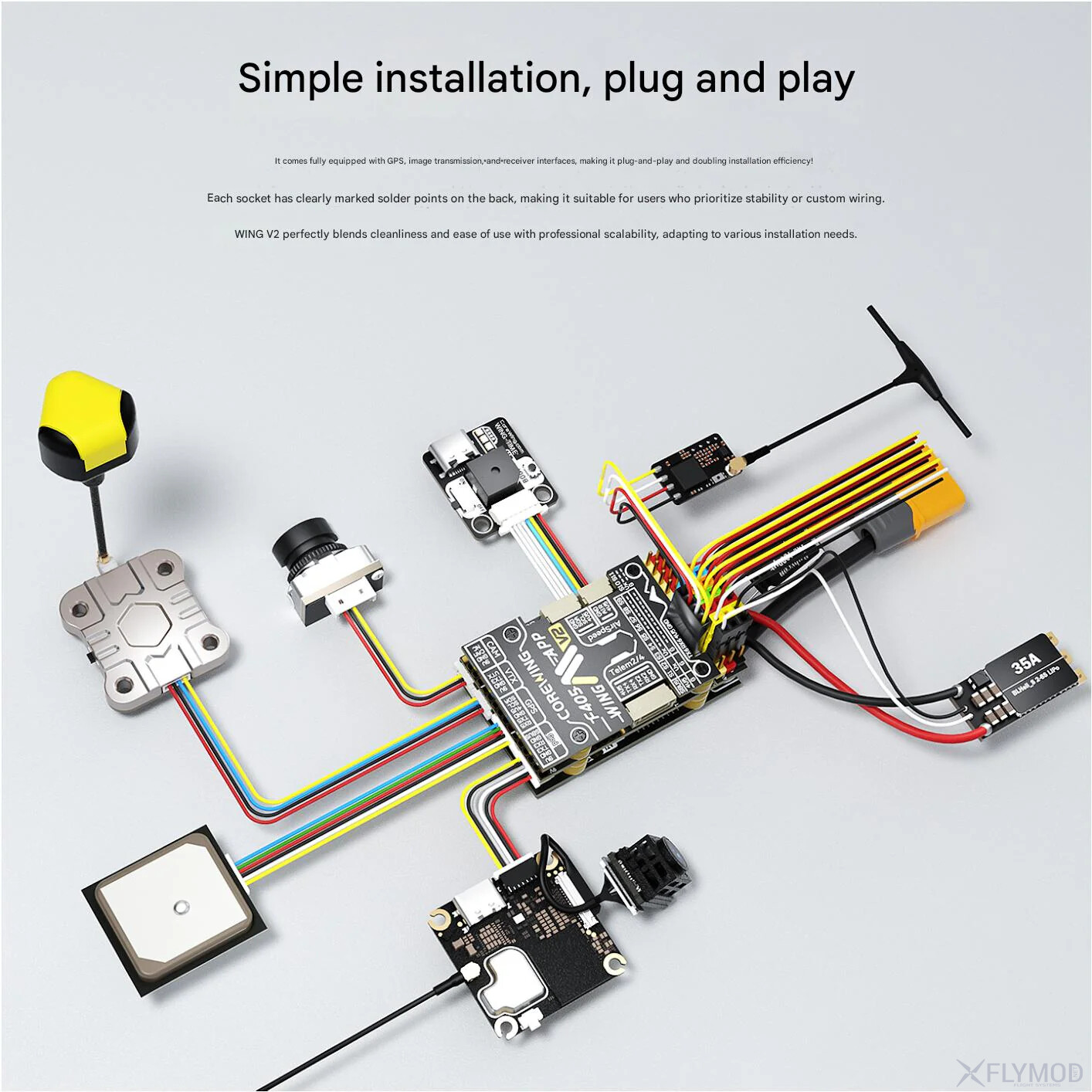

Has a large number of ports for connecting various external systems and sensors
Power distribution board provides stable power supply with three independent BEC outputs
Possibility to configure parameters using a smartphone via Wi-Fi or Bluetooth thanks to the wireless communication board

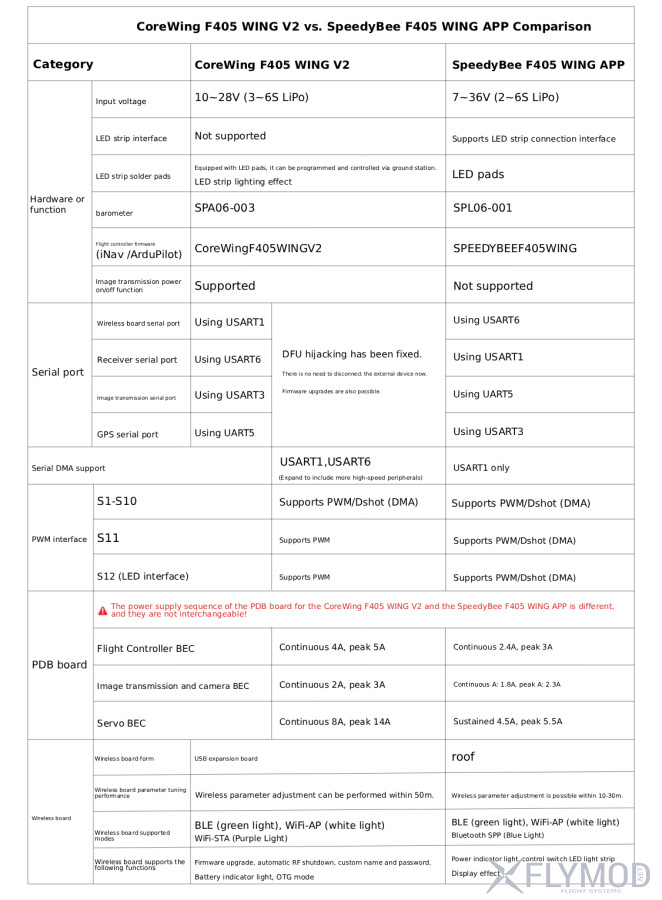

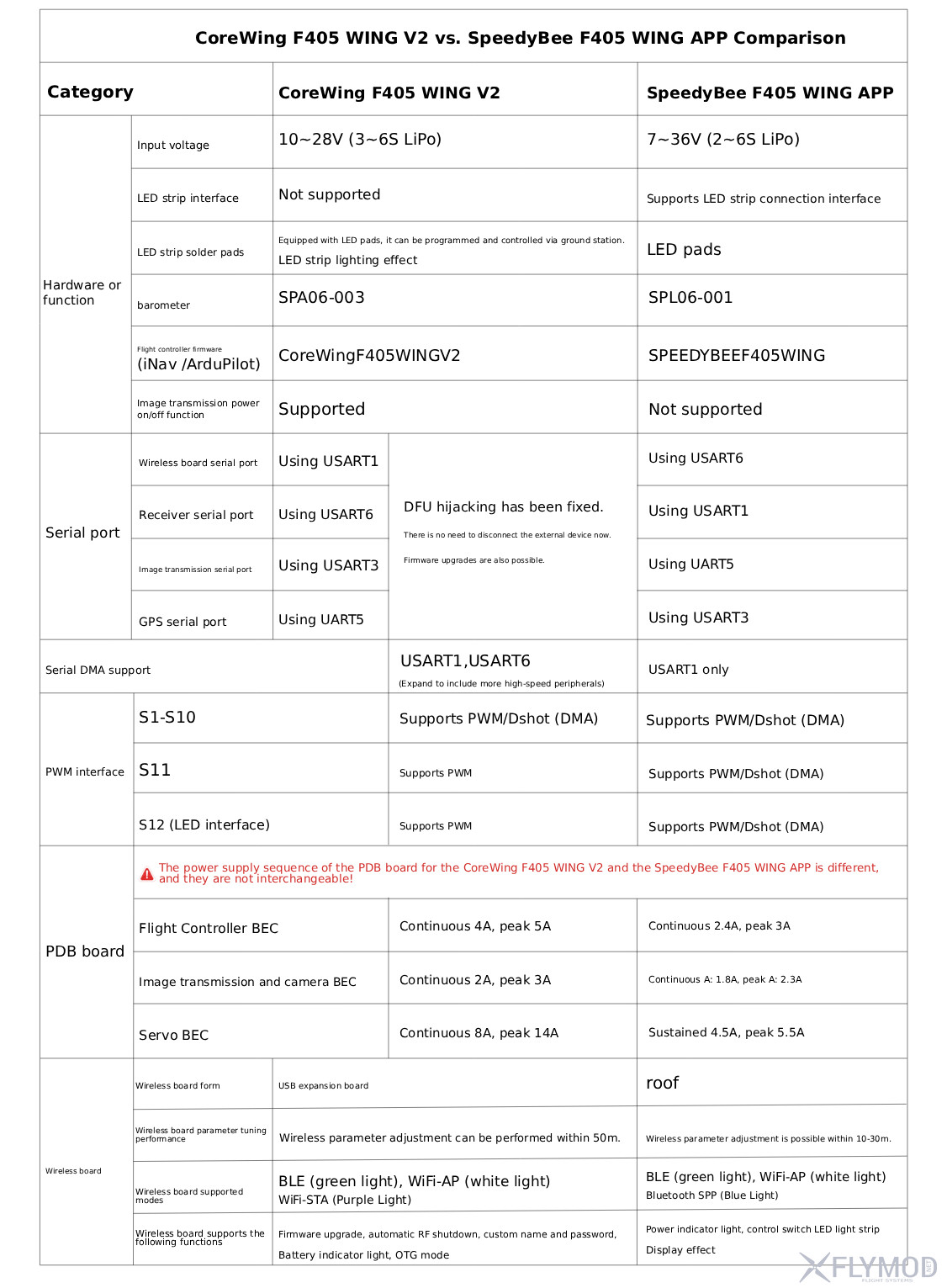

Comparative table of CoreWing F405 WING V2 and SpeedyBee F405 WING APP

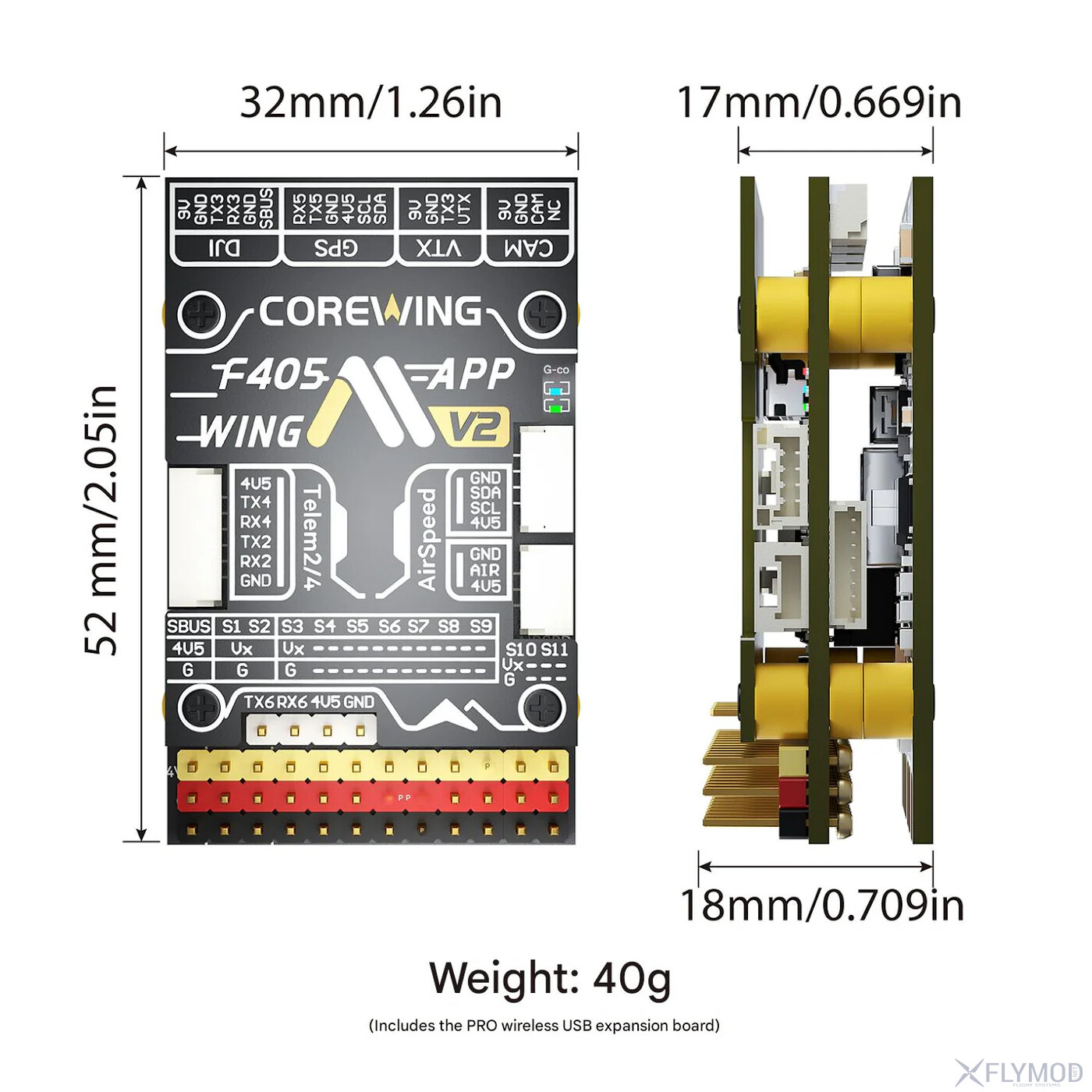

Specifications
Flight controller
Processor: SMT32F405, 168MHz, 1MB Flash
IMU (gyroscope and accelerometer): ICM-42688-P
Barometer: SPA06-003
OSD chip: AT7456E
Blackbox: MicroSD slot (SDSC and SDHC type, 4-32GB, FAT16/FAT32, INAV only supports up to 4GB)

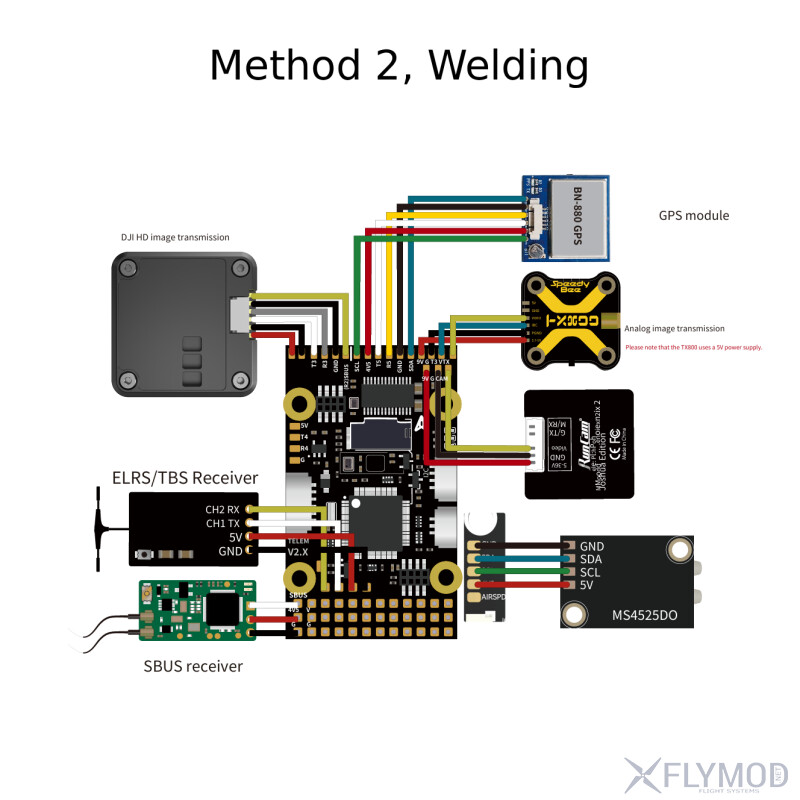

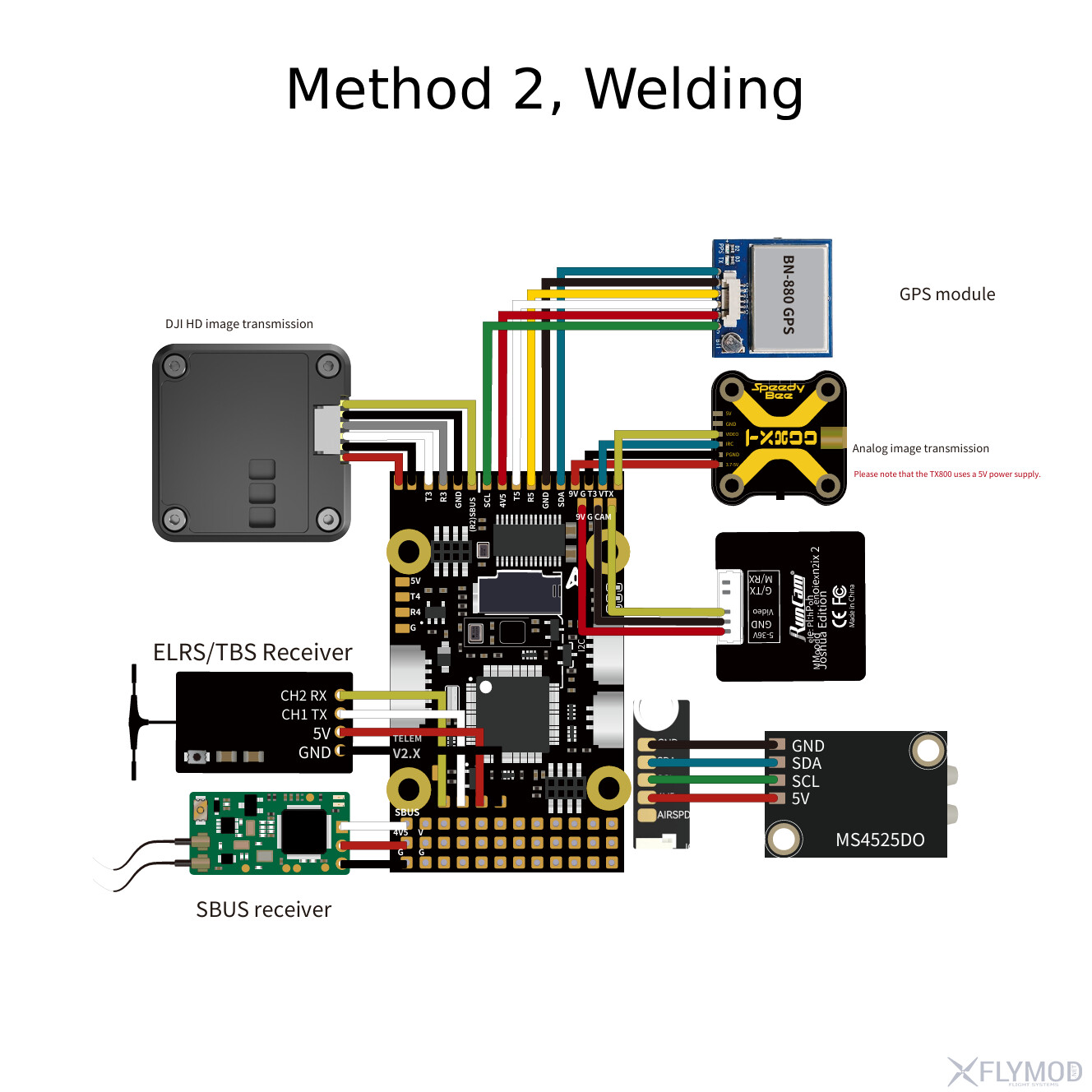

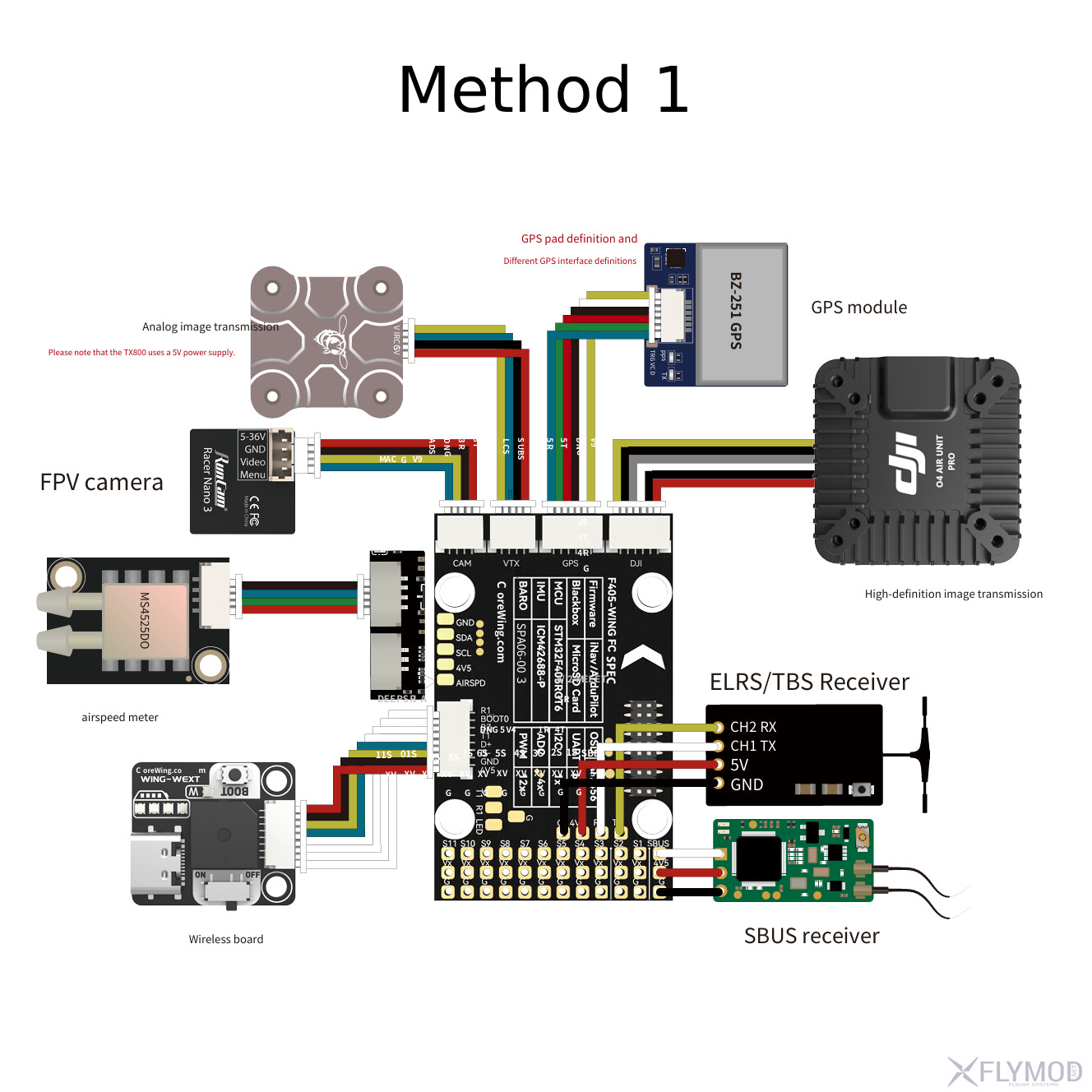

UART ports: 6 (USART1 for connecting a wireless board)
I2C port: 1
ADC ports: 4
PWM outputs: 12
ELRS/CRSF receiver: supported, connects to USART6
SBUS input: built-in inverter (USART2-RX)
Status indicator: 3 LEDs
RSSI input: yes
Supported firmware:
INAV: CoreWing F405 WING V2 (default)
ArduPilot: CoreWing F405 WING V2
Weight: 8.9g
Power distribution board
Input voltage: 10-28V (3-6S LiPo)
Voltage sensor: connected to the VBAT of the flight controller, 10K:100K ratio
Current sensor: connected to the flight controller, continuous 90A, peak 215A (scale 158 in INAV, 62 A/V in ArduPilot)
TVS protection diode: yes

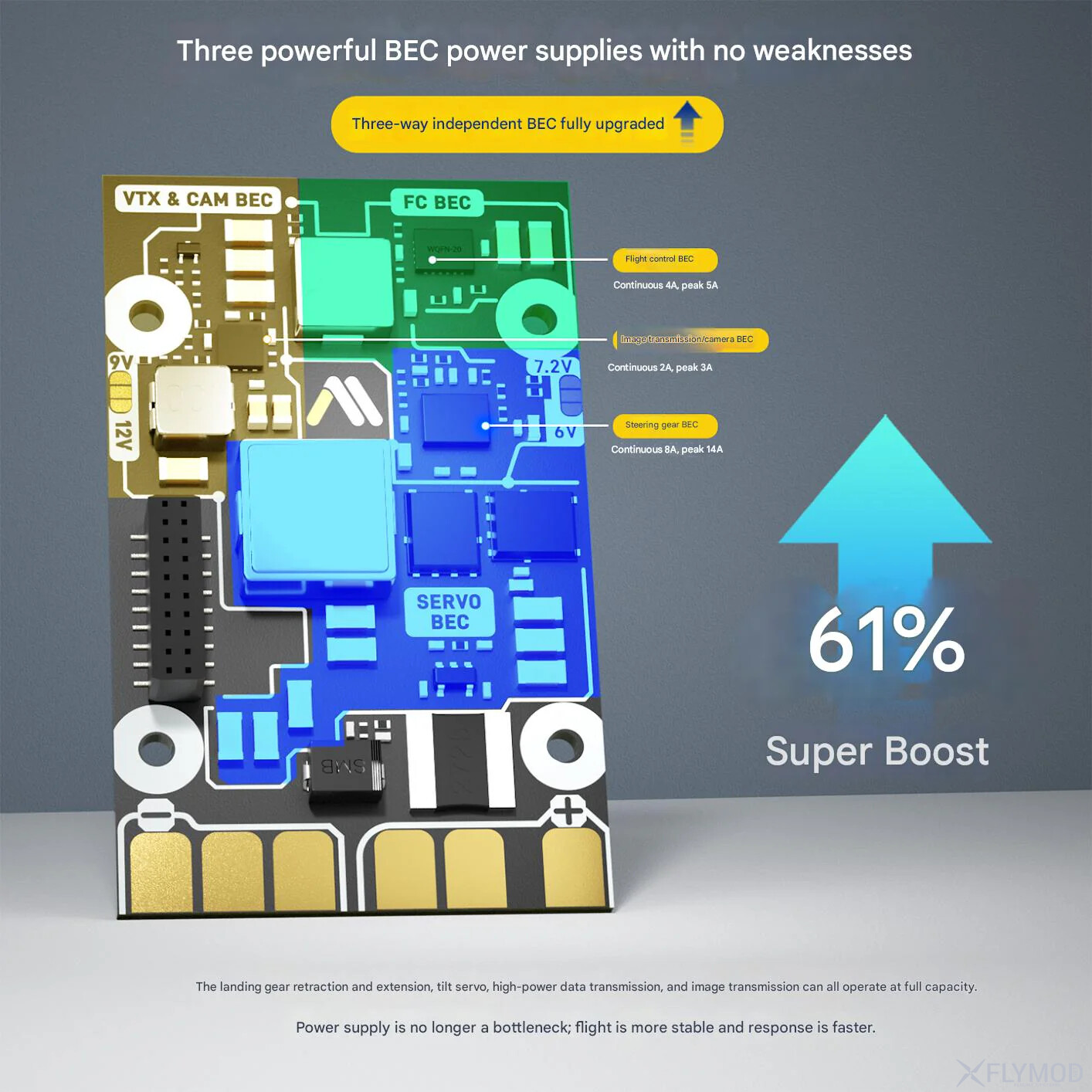

BEC outputs:
DC 5.2V ± 0.1V, continuous current 4A, peak current 5A (for flight controller, GPS, airspeed sensor, data module, etc.)
DC 9V ± 0.1V, continuous current 2A, peak current 3A, switchable between 5V/9V/12V (for digital/analog video transmitters and cameras)
DC 5V ± 0.1V, continuous current 8A, peak current 14A, switchable between 5V/6V/7.2V (for servos)
Weight: 11.4g

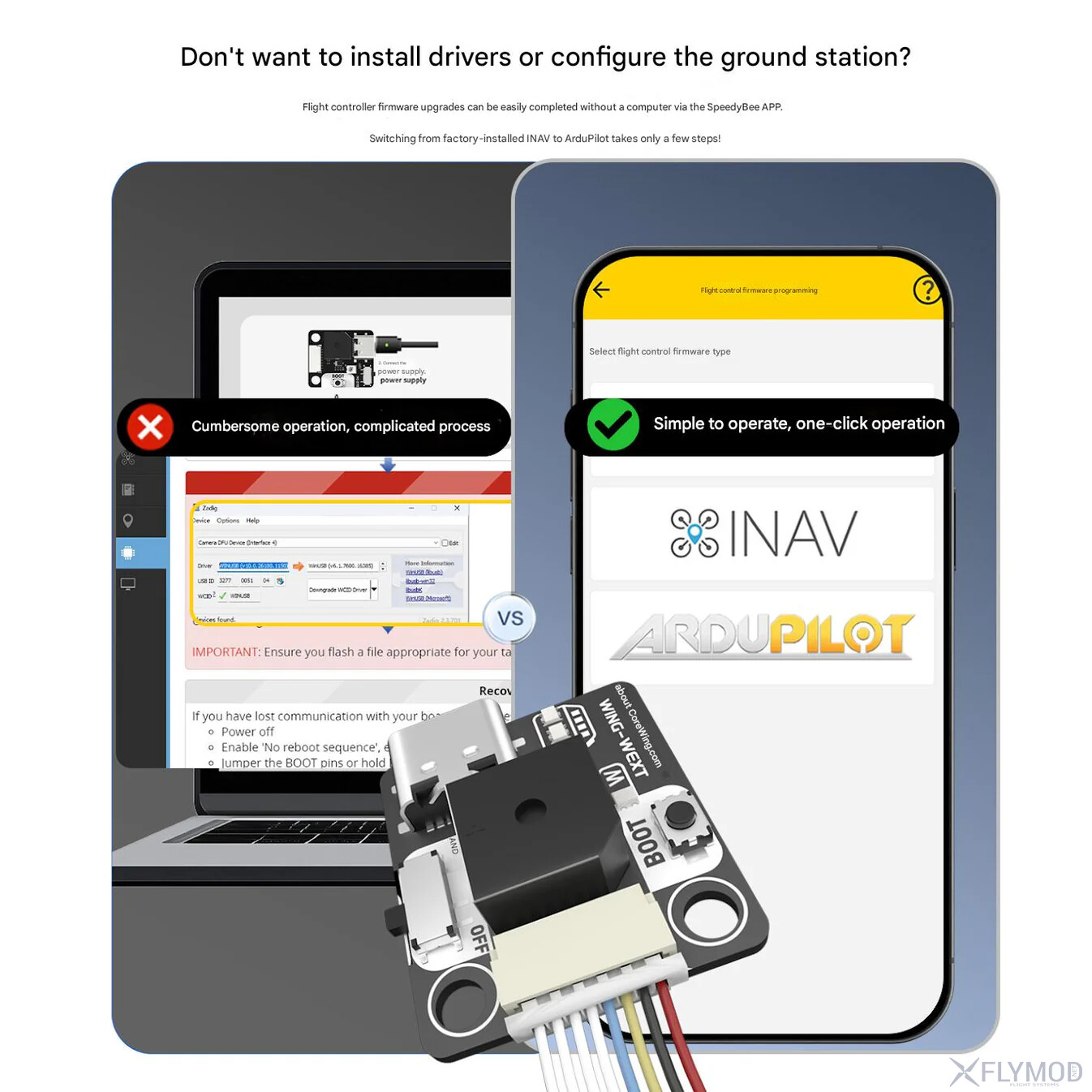

Wireless USB board
Wireless parameter setting:
BLE mode: to connect to CoreWing, SpeedyBee and INAV Configurator apps
WiFi-AP mode: for connecting to SpeedyBee, INAV Configurator, MissionPlanner, QGroundControl, etc.
WiFi-STA mode: for connecting to SpeedyBee, INAV Configurator, MissionPlanner, QGroundControl, etc.
