Directional patch antenna Maple Wireless 1.5G 10.5dBi

Price:3 876 uah with VATPrice in USD:91.00

Bonuses will be issued for this product upon purchase

Read more

Brand: Maple WirelessSKU 18377

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stockExpected soon
Notify when available

Description

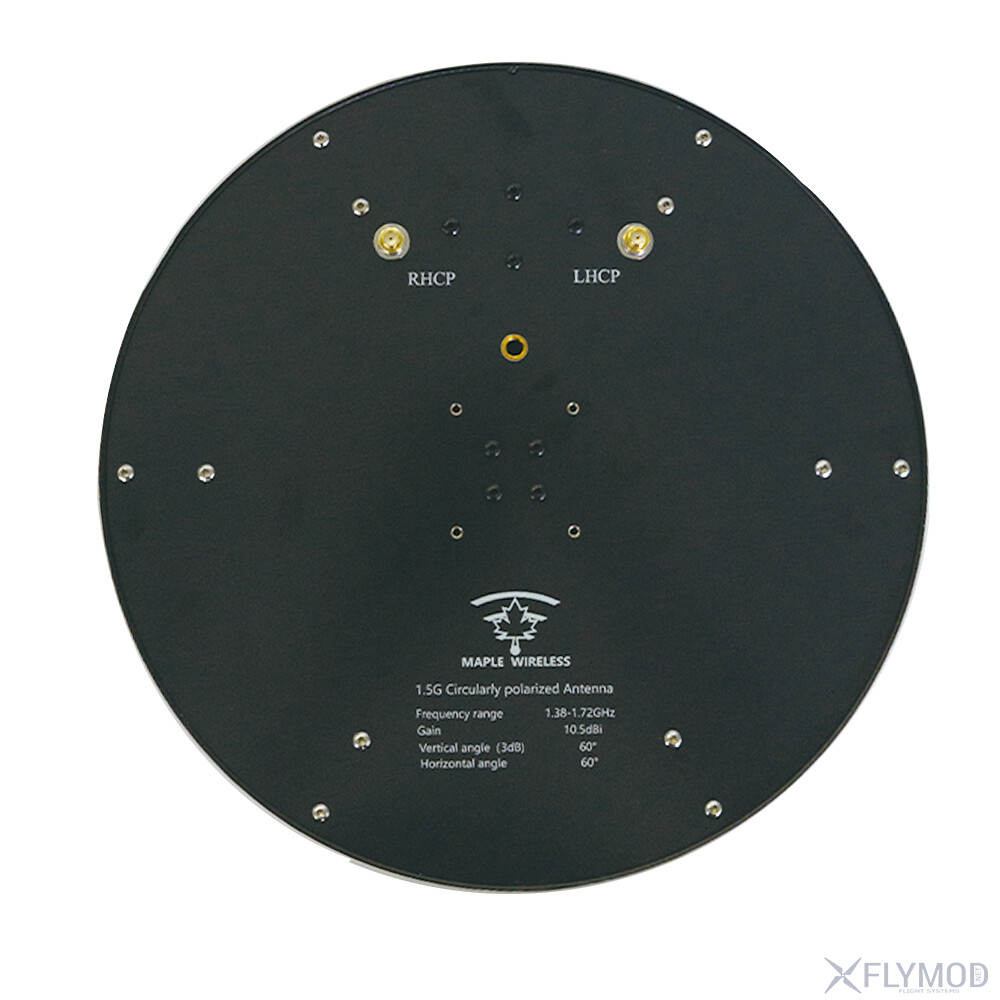

Maple patch Wireless 1.5G 10.5dBi Directional Antenna operates in the 1380-1720MHz band and provides stable signal transmission with 10.5dBi gain. The RHCP/LHCP circular polarization increases the stability of communication and reduces the impact of interference. The design with SMA connector and direct grounding provides reliable protection against static discharges. The antenna operates efficiently in temperatures from -40 to +60℃.

Features

• Provides 10.5dBi gain
• Supports RHCP/LHCP circular polarization
• Operates in a wide frequency range of 1380-1720MHz

Specifications

• Working frequency range: 1380-1720MHz
• Input impedance: 50Ω

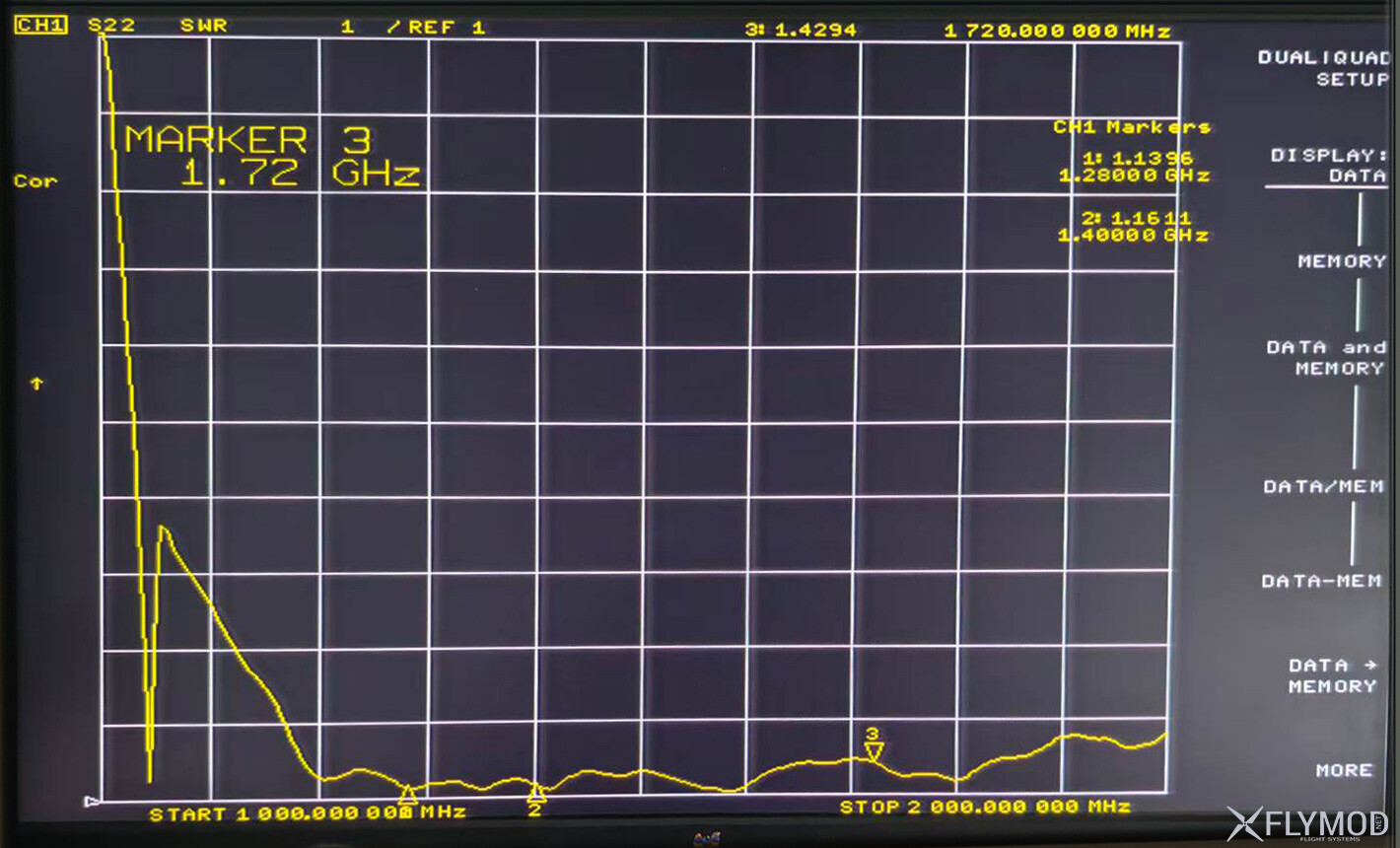

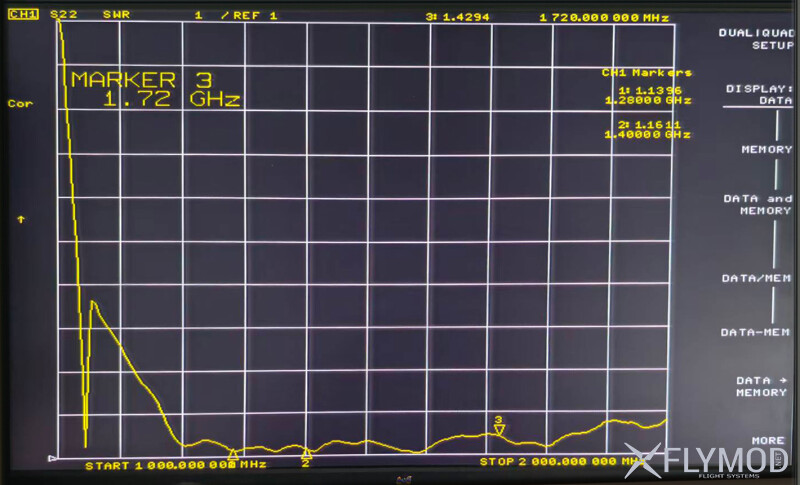

• VSWR: <1.5
• Gain: 10.5dBi
• Horizontal angle: 60°
• Vertical angle 3dB: 60°
• Maximum power consumption: 10W
• Polarization: RHCP/LHCP
• Axial ratio: ±0.5dB

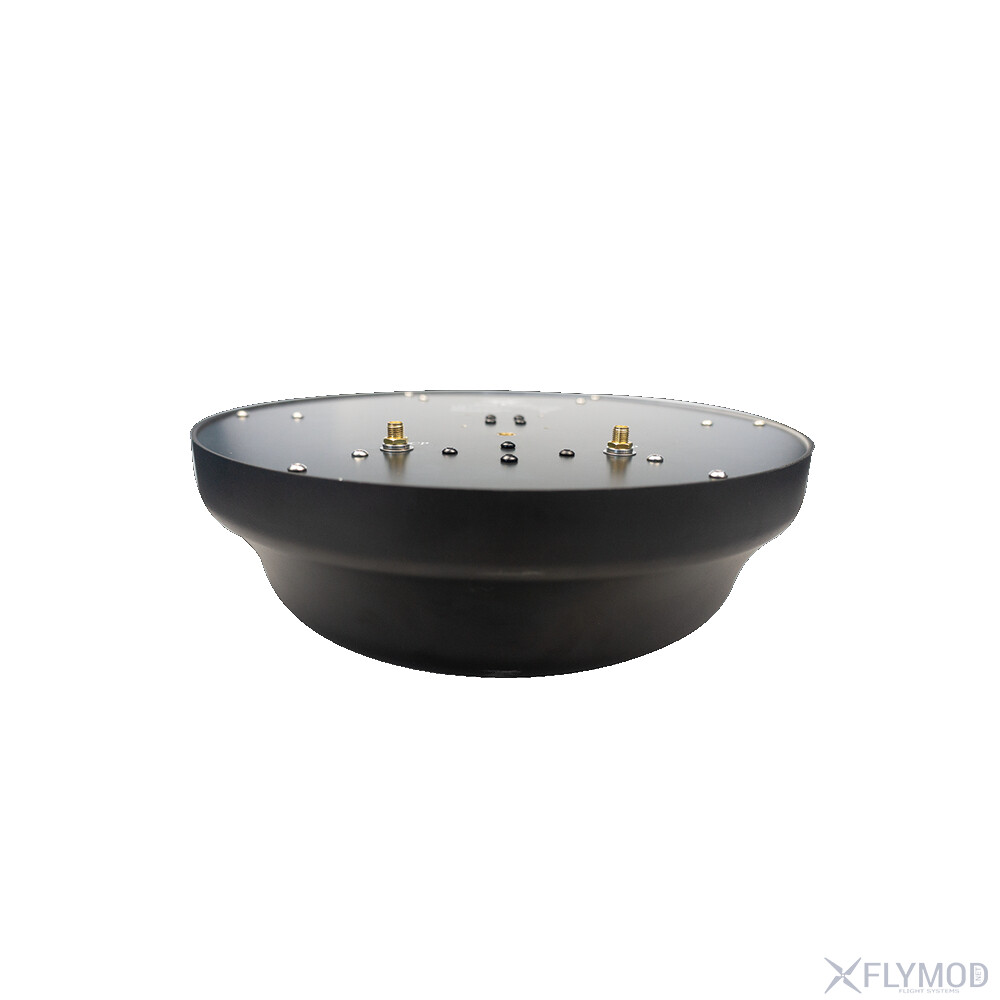

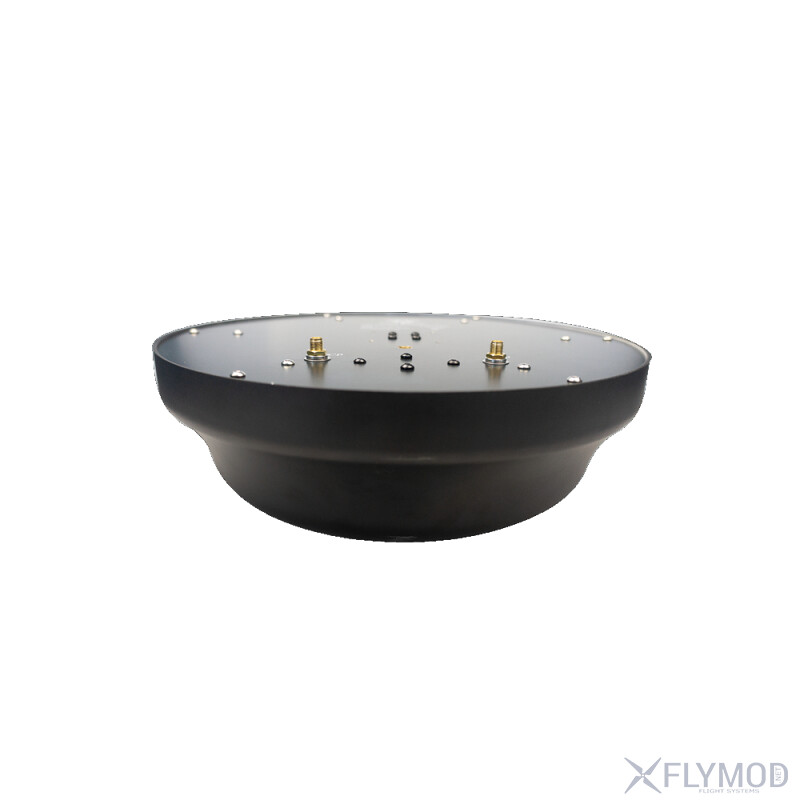

• Connector: SMA
• Electrostatic protection: direct grounding
• Ambient temperature: -40~+60℃

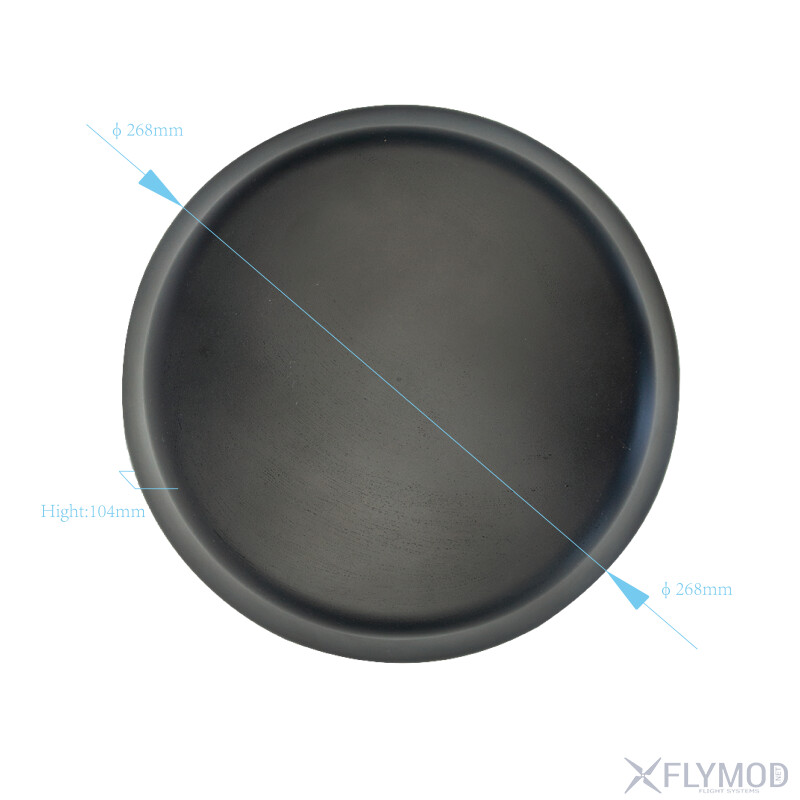

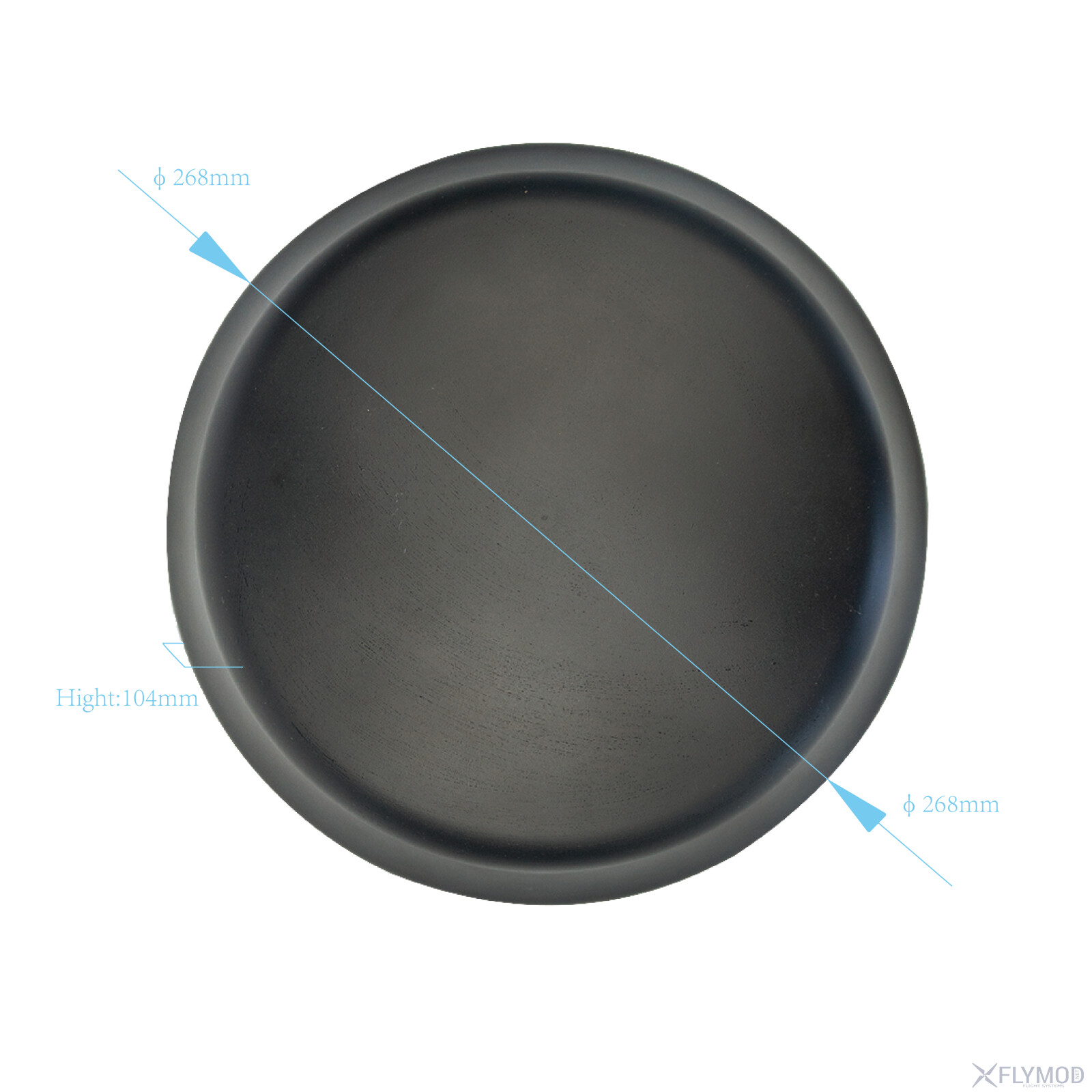

• Size: Φ268*104mm
• Weight: 485g

Package

• 1 x Maple Wireless 1.5G 10.5dBi directional patch antenna

Files

• Довідник користувача Спрямованої антени Maple Wireless 1.5G 10.5dBi
• Довідник користувача Спрямованої антени Maple Wireless 1.5G 10.5dBi (доповнений)

Photos
