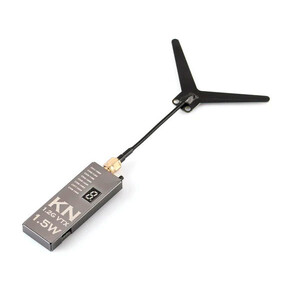

Video transmitter Diatone Mamba KN 1500mW 1.2GHz VTX

Price:1 460 uah with VATPrice in USD:33.10

Bonuses will be issued for this product upon purchase

Read more

Brand: DiatoneSKU 18347

• 1.2G 1.5W

Select the option!

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stock
Notify when available

Description

TheDiatone Mamba KN 1500mW 1.2GHz VTX video transmitter provides stable transmission of audio and video signals in NTSC and PAL formats over a distance of up to 20km. It operates in the range of 1080-1360MHz and supports 8 channels, which provides convenient frequency tuning. With an output power of 1500mW, the transmitter guarantees a reliable signal. Digital phase auto frequency tuning ensures that the working channel is accurately maintained without failures. The 12V power supply makes the module compatible with most FPV systems.

Features

• Operates in the range of 1080-1360MHz and supports 8 channels
• Output power 1500mW
• Provides signal transmission over a distance of up to 20km
• Uses digital phase auto frequency tuning
• Transmits audio and video simultaneously in NTSC and PAL formats

Specifications.

• Frequency range: 1080-1360MHz
• Number of channels: 8
• Output power: 1500mW
• Робочі частоти:1080/1120/1160/1200/1240/1280/1320/1360MHz
• Video format: NTSC / PAL
• Signal transmission: synchronous audio and video transmission
• Power supply voltage: 12V
• Operating current: 400-500mA
• Frequency control: digital control of phase auto-tuning frequency, frequency point lock
• Transmission distance: 15-20 kilometers
• Antenna connector: SMA-K
• Operating temperature: -10~60°С
• Size: 16*70*10mm
• Weight: 30g

Package contents.

• 1 x Diatone Mamba KN 1500mW 1.2GHz VTX video transmitter
• 1 x Y-shaped antenna
• 1 x PH2.0 4Pin cable
