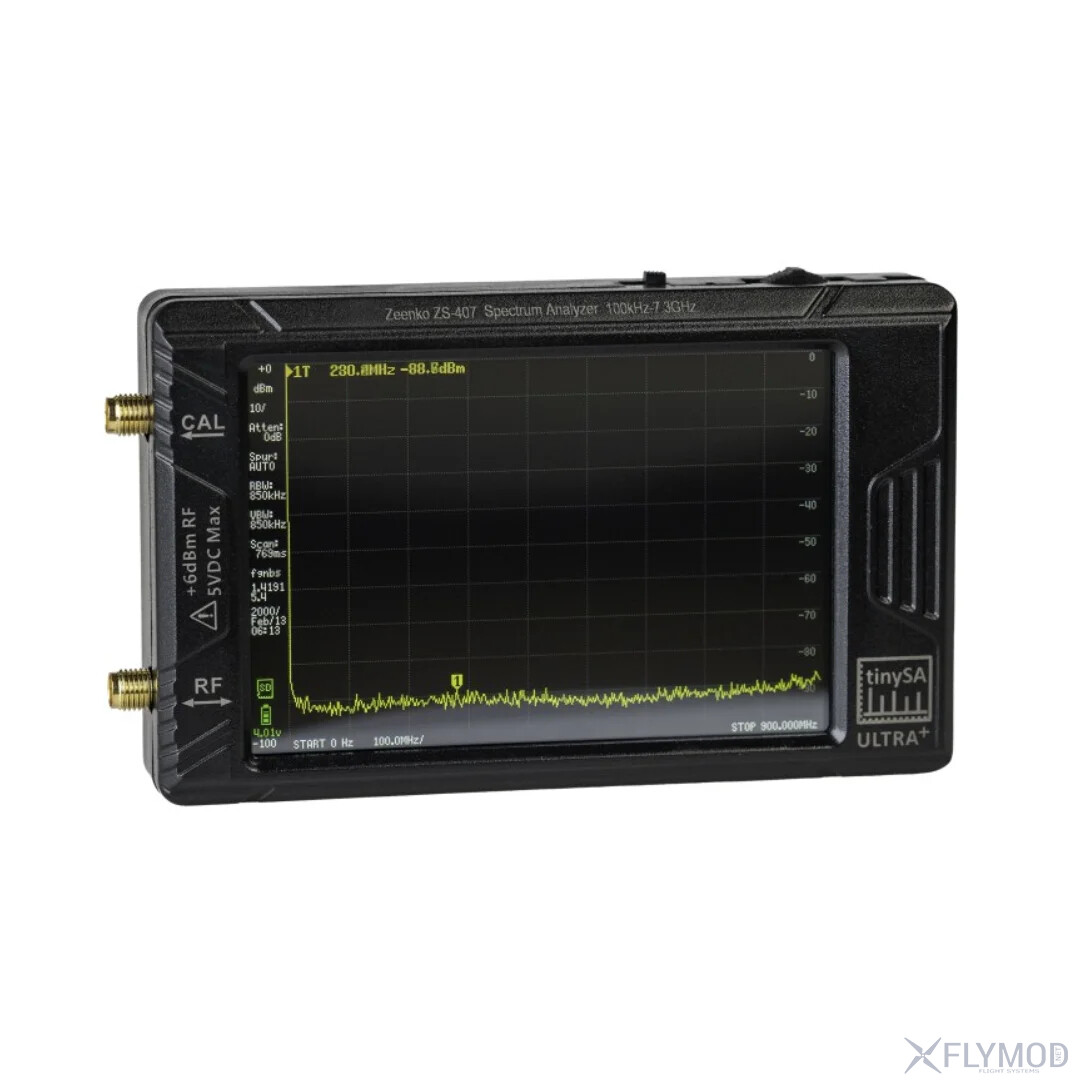

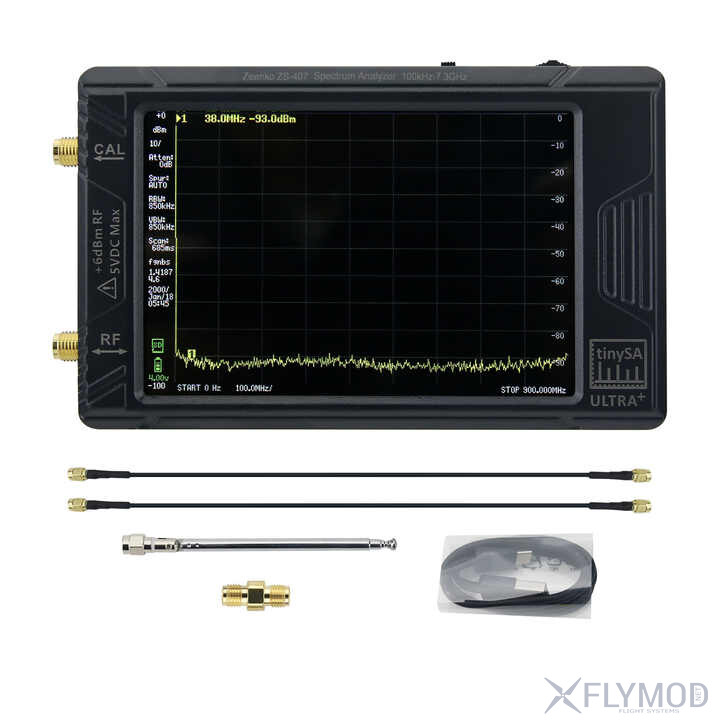

The TinySA Ultra handheld spectrum analyzer is used to measure the amplitude as well as display electrical signals as a function of frequency. It can recognize the range up to 5.3 (and in practice up to 6 GHz), which is impressive! It is equipped with a 4.0-inch capacitive color display capable of displaying the full crossover frequency range at 450 scan points. The device also offers two main modes of operation: standard and ultra, and has a number of useful options, such as a variable bandpass filter and a step input attenuator. It comes with a rechargeable battery that provides up to two hours of portable operation. Setup is quick and easy. In addition, the developers and the user community are quite active in supporting this project, so the firmware for the analyzer is frequently updated. TinySA Ultra has an affordable price, which is attractive not only for amateurs but also for use in specialized programs.
It is important to note that the maximum input signal level is limited to +6dBm, so it is recommended to use an attenuator in case of uncertainty about the input signal!
When not used as a spectrum analyzer, the TinySA Ultra can be used as a signal generator that outputs sinusoidal or rectangular waveforms. The device is fully compatible with a PC via USB cable and has a built-in auto-diagnostic and self-calibration function using the internal signal generator.
Features
4-inch touch screen.
Color display with a maximum of 450 dots provides continuous coverage of the entire frequency range
Spectrum analyzer for the range from 0.1 to 800 MHz or, in Ultra calibration mode, up to 6 GHz. In some cases, it is possible to observe signals up to 12 GHz
Signal generator with sinusoidal output signal from 0.1 to 800MHz or rectangular signal up to 4.4GHz or RF test output signal up to 5.3GHz when not used as a spectrum analyzer
Bandpass filters with switchable resolution from 200Hz to 850kHz, built-in additional 20dB LNA
MicroSD memory card slot for storing measurements, settings, and screenshots
Input signal pitch attenuator from 0dB to 31dB (cannot be used in combination with LNA)
Built-in calibration signal generator used to automatically self-test and calibrate the (low) input signal
Can be used as a computer-controlled spectrum analyzer or signal generator (when connected to a computer via USB)
Rechargeable battery provides at least 2 hours of portable use
Specifications.
Display size: 4 inches
Displayed resolution: 51, 101, 145, 290 or 450 measuring points
Low input frequency:
100kHz-800MHz,
6GHz in Ultra mode
Resolution filters in 1,3,10 steps: 200Hz to 850kHz
Maximum low output frequency: Sine wave up to 800MHz, square wave up to 4.4GHz
Low output level: -115dBm to -19dBm
Ultra mode: level calibrated to 6GHz
Internal LNA gain: 20dB to 4GHz
Internal step attenuator: 0-31dB
Maximum number of displayed points per scan: maximum 450
Scan time from 0 to 350MHz: 165ms
Minimum scanning time of the zero range: 14ms for 450 points
Low DANL input at 100MHz:
-153dBm/Hz (LNA off)
-169dBm/Hz (LNA enabled)
DANL degradation in ultra mode
10dB above 2.5GHz
25dB above 5.3GHz
Phase noise at 10kHz offset: -92dBn/Hz
Phase noise at 100kHz offset: -108dBn/Hz
Low input compression level of 1dB:
+0.5dBm (LNA off)
-26.5dBm (LNA enabled)
IIP3 without LNA:
+18dBm (minimum 2MHz apart)
0dBm (500Hz apart)
IIP3 with LNA: -8dBm (at least 2MHz apart)
Audio output: stereo 3.5mm jack
Activating the software update mode: Via the Jog button (press before turning on)
AM modulation depth: from 10% to 100%
FM deviation: from 1kHz to 300kHz
Modulation frequency: from 50Hz to 3.5kHz
Memory: internal micro SD card slot for storing measurements up to 32GB
