Pagoda-2 5.8G RHCP omnidirectional antenna

Price:210 uah with VATPrice in USD:4.99

Bonuses will be issued for this product upon purchase

Read more

SKU 16618

• SMA. Short. RHCP
• SMA. Long. RHCP
• RP-SMA. Short. RHCP
• RP-SMA. Long. RHCP

Select the option!

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stock
Notify when available

Description

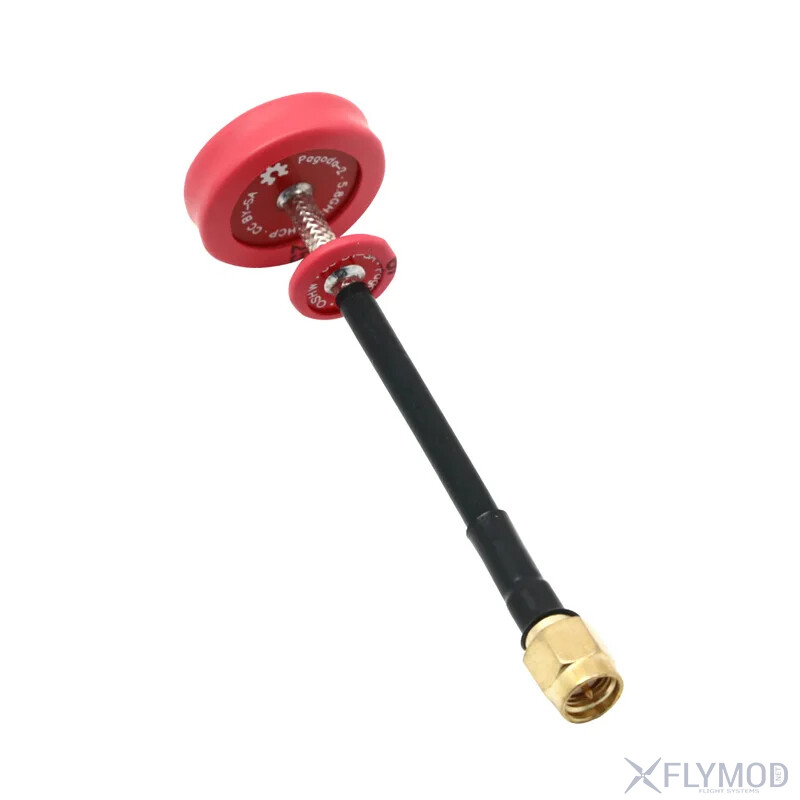

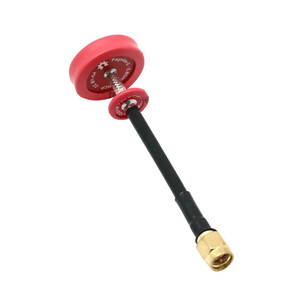

Pagoda-2 5.8G omnidirectional antennas with circular polarization, designed by Maarten Baert. The antenna structure consists of 3-layer printed circuit boards covered with 1 oz copper foil, and the material of the metal core is optimized to achieve very low SWR.

In this version of the antennas, the PCBs are shrink-wrapped to protect them from damage.
Please note! The color of the antenna may vary depending on the batch!

Specifications

• Center frequency: 5.8G
• Bandwidth: 500MHz (5.55-6.05GHz)
• Matching: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
• Axial ratio: <1.3
• Gain: 2dBi
• Beam width: 360 degrees
• Radiation efficiency: 95%
• Connector: SMA/RP-SMA (optional)
• Length:
  • Short version: 50mm
  • Long version: 80mm
• Weight:
  • Short version: 6g
  • Long version: 8g

Photos
