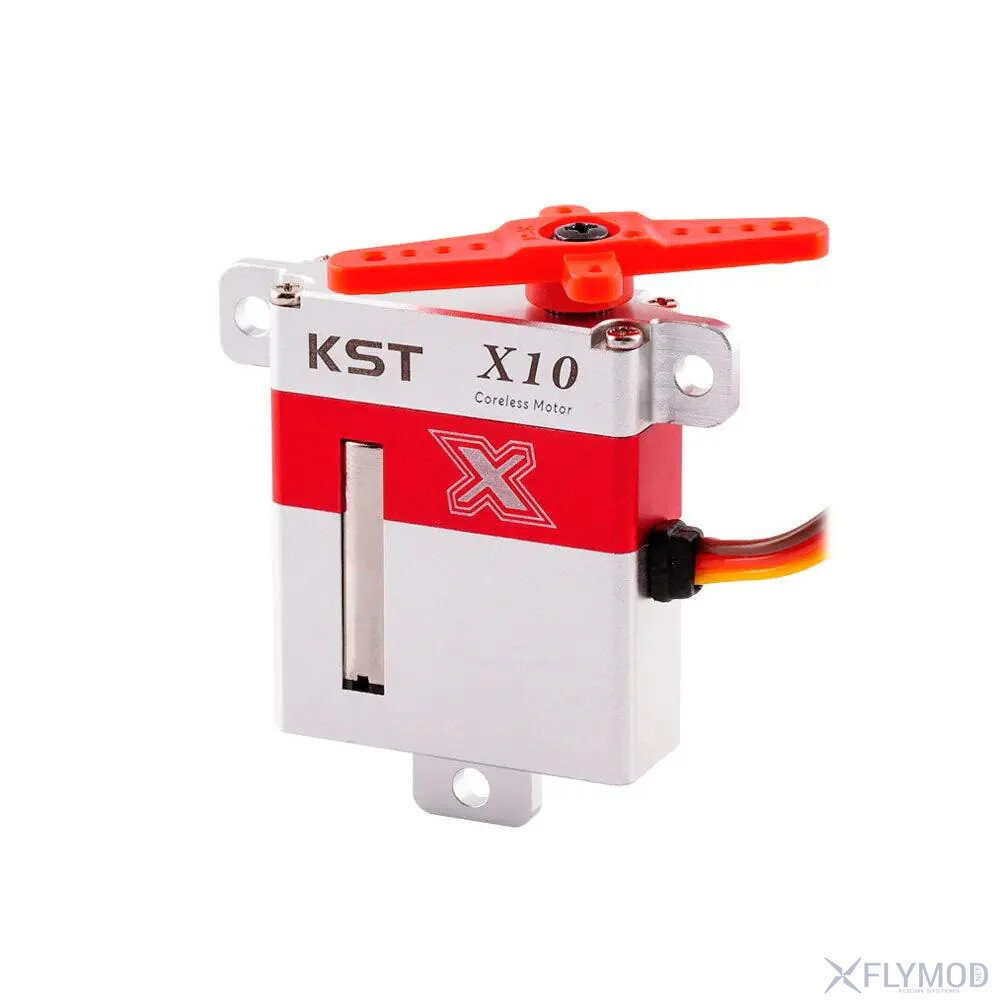

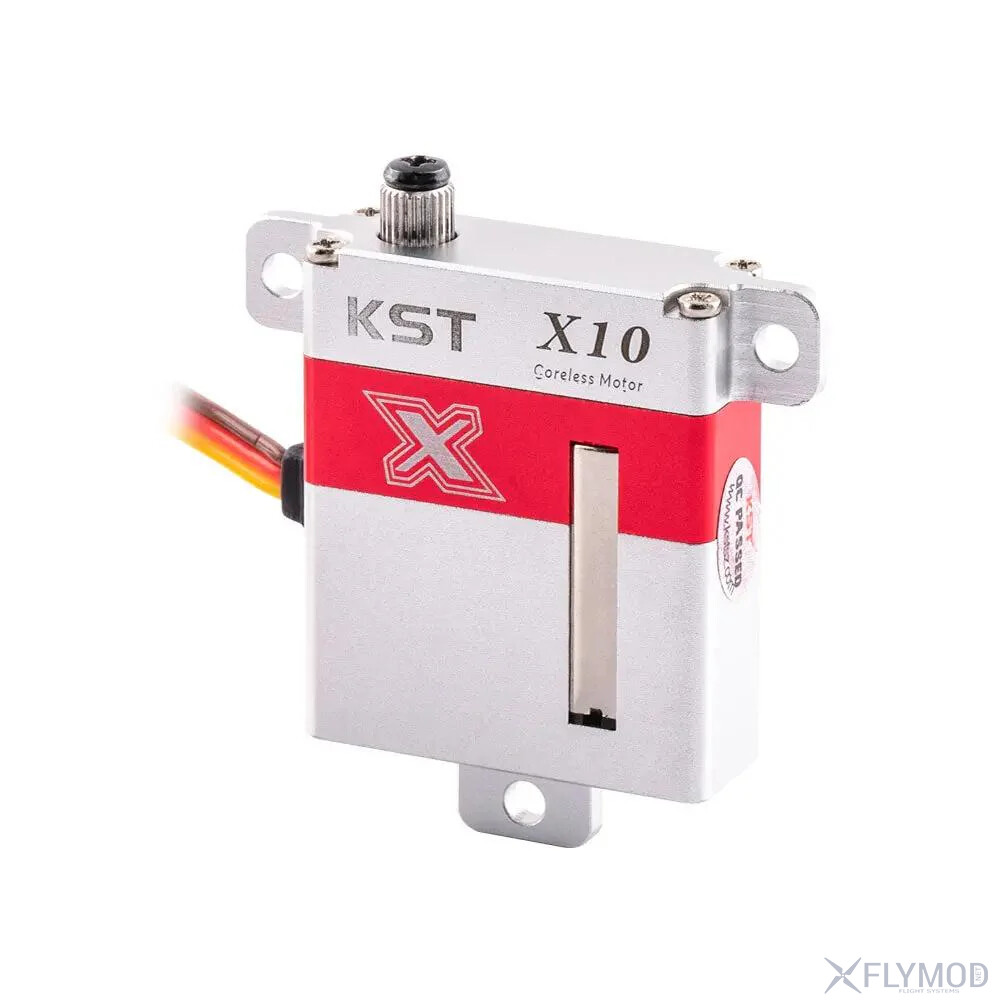

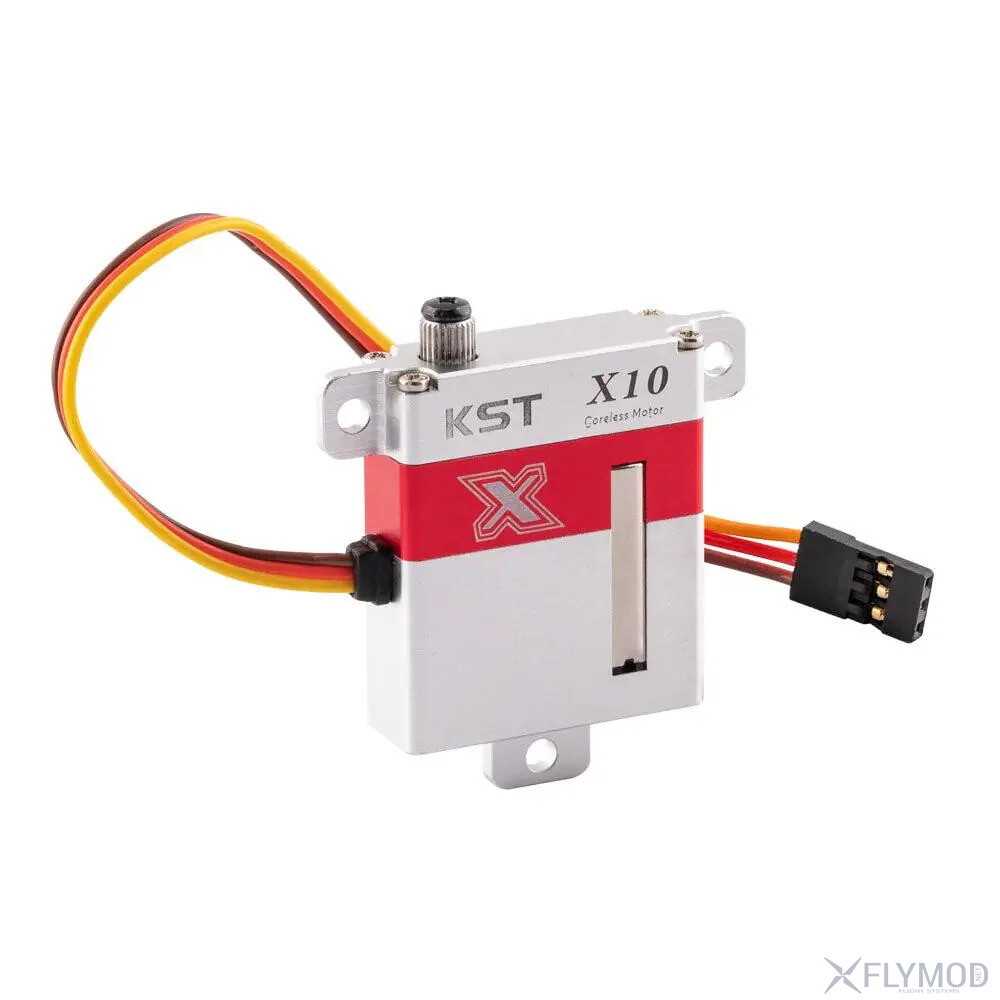

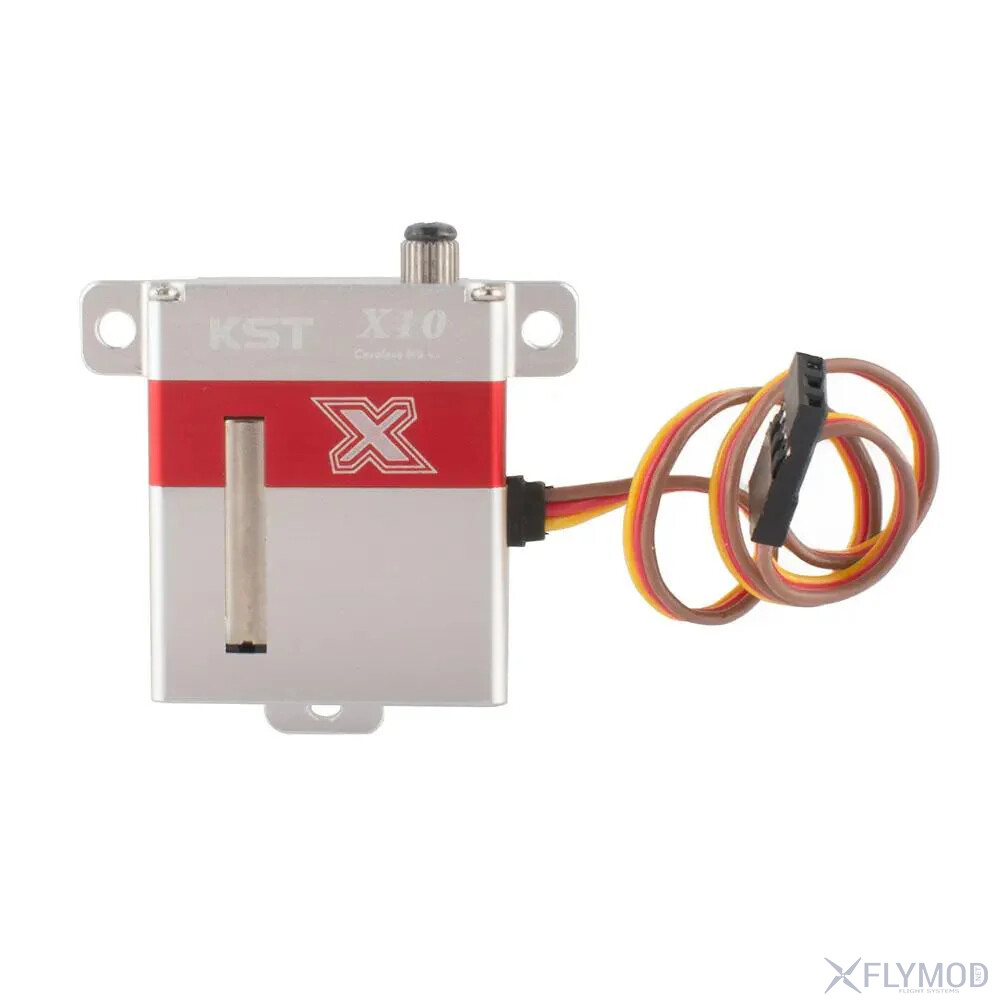

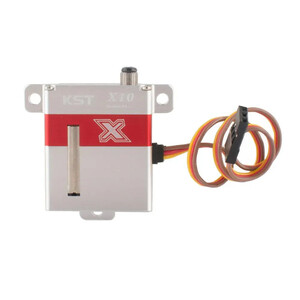

KST X10 V8.0 digital servo drive with metal gearbox is characterized by exceptional smoothness, high torque and excellent speed. It operates in the voltage range of 4.8V-8.4V and at 8.4V reaches a torque of 10.8kg-cm and a speed of 0.10s/60°. The robust design with hardened steel gears and CNC-machined aluminum alloy housing ensures efficient heat dissipation and long-lasting operation under high loads. With its small dimensions of 30*10*35.5mm and light weight, the device is compatible with a variety of systems and is well suited for a wide range of tasks.
Features
Supports high voltage in the range of 4.8V-8.4V
Achieves torque of 6.2kg-cm at 4.8V, 7.5kg-cm at 6.0V, 9.5kg-cm at 7.4V, and 10.8kg-cm at 8.4V
Operating speed from 0.16sec/60° (4.8V) to 0.10sec/60° (8.4V)
Reliable and durable operation thanks to aluminum alloy housing and hardened steel gears
Compact design and light weight for easy and convenient integration
Specifications
Rated voltage: DC 7.4V
Voltage range: DC 4.8V-8.4V
Torque:
6.2kg-cm at 4.8V
7.5 kg-cm at 6.0V
9.5 kg-cm at 7.4V
10.8kg-cm at 8.4V
Working speed:
0.16sec/60° at 4.8V
0.14s/60° at 6.0V
0.12s/60° at 7.4V
0.10s/60° at 8.4V
Operating frequency: 1520μs/333Hz

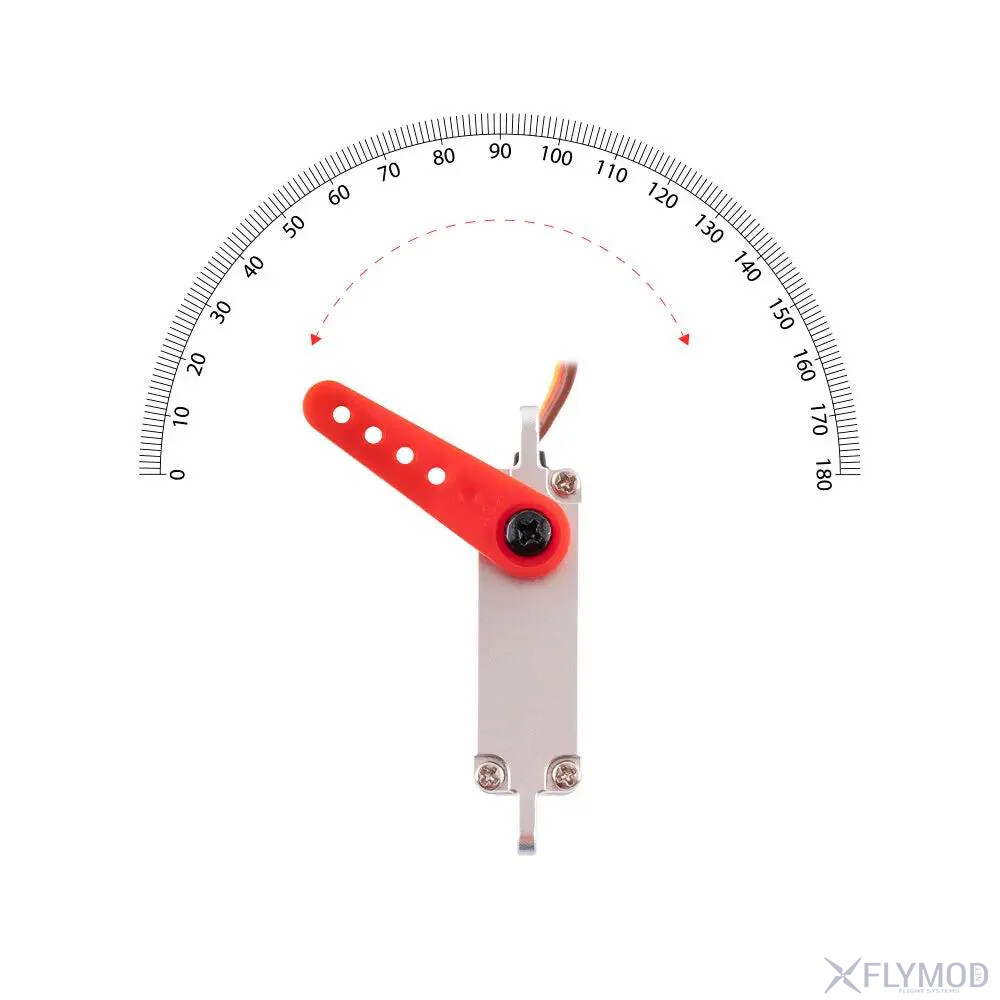

Rotation angle: ±50° (100° total)
Programmable: yes
Body material: aluminum alloy
Gear material: hardened steel
Bearing: 2BB

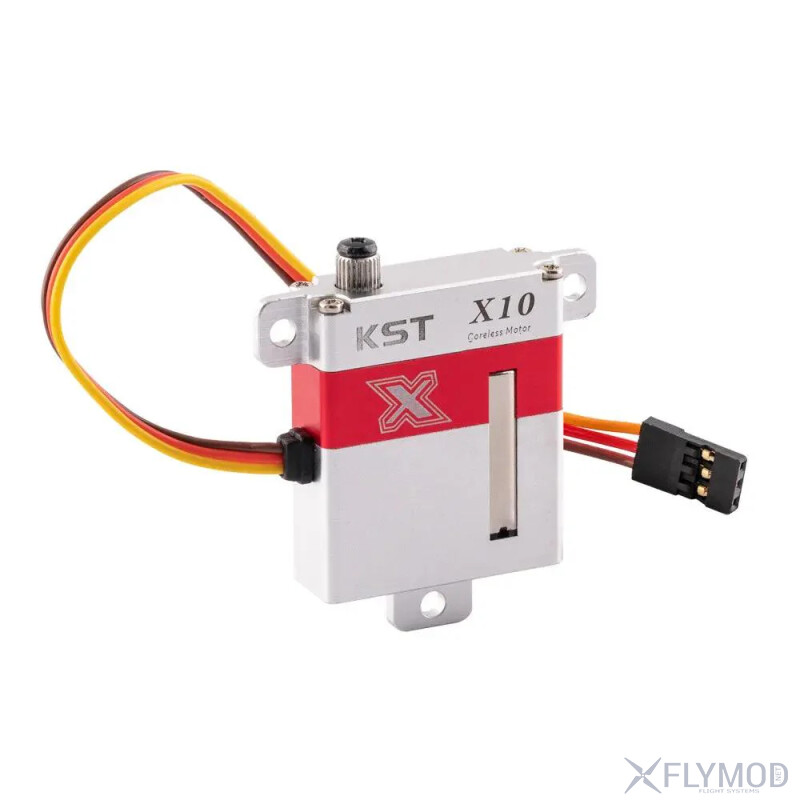

Cable length: 15cm
Motor type: brushless
Position sensor: potentiometer
Working temperature: -10℃ to +65℃

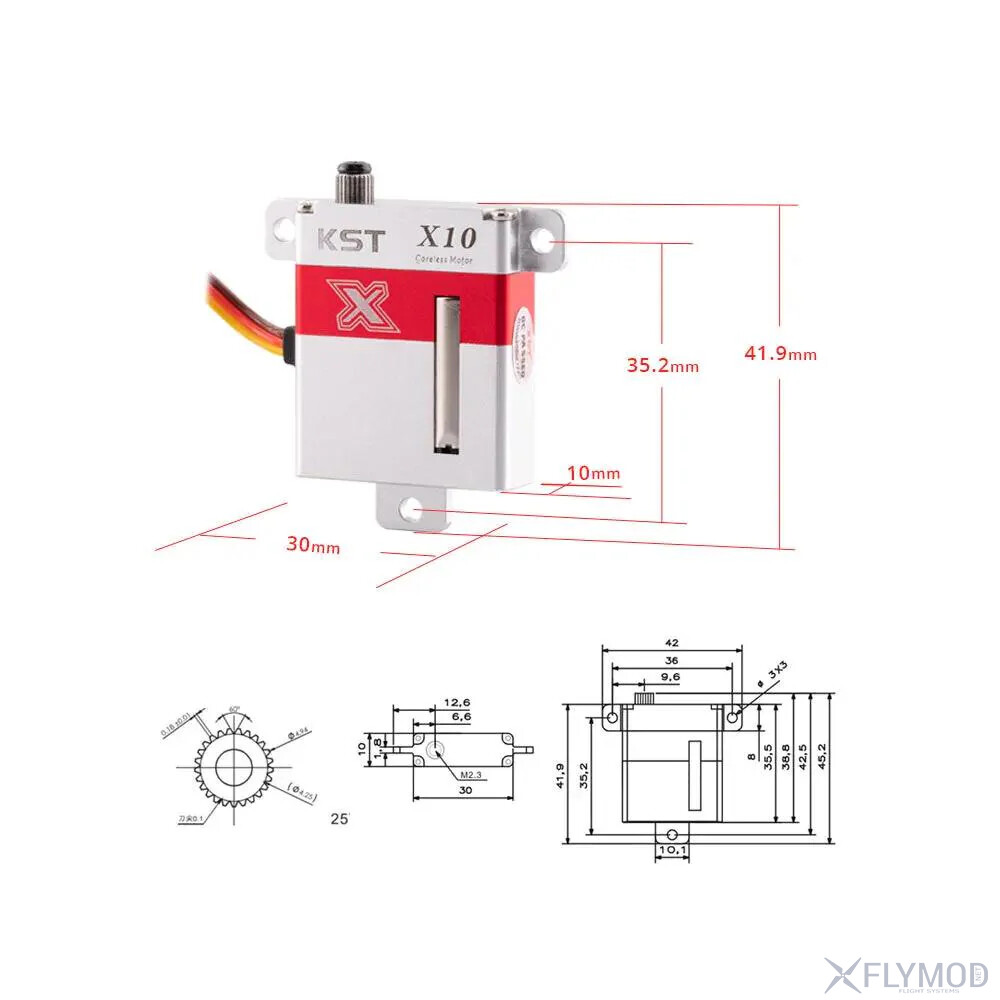

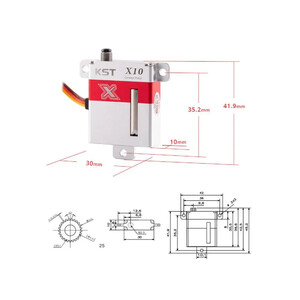

Size: 30*10*35.5mm ±0.2mm
Weight: 28g ±10%.

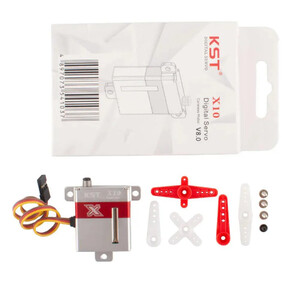

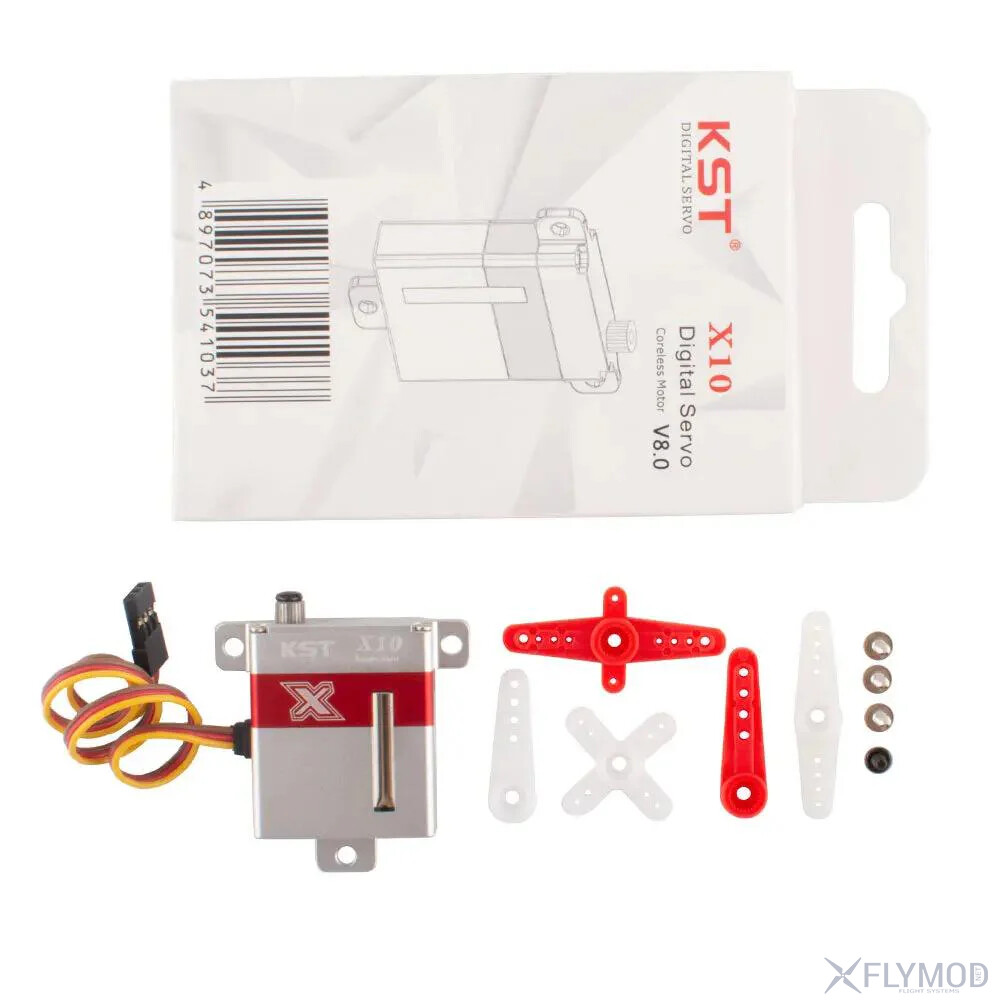

Package
1 x KST X10 V8.0 digital servo drive with metal gearbox
Brand: KSTSKU 18659
