EMAX ES3005HV digital servo drive is a versatile high-voltage device designed for a variety of radio-controlled models and systems requiring high power. In the voltage range of 6.0-8.4V without load, it reaches a maximum speed of 0.11s/60° and supports an operating current of 650mA with a maximum current of up to 3.6A. The high torque of up to 11kg-cm at maximum voltage ensures reliable operation under heavy loads. No-load current of 9.5mA is maintained at all voltages. The basic working stroke of 90°±8° can be extended to 180°±10°, ensuring excellent precision and smoothness. The robust design, which features a metal gearbox, enhances performance and durability. The PWM system facilitates efficient control and wide compatibility.
Features
No-load speeds range from 0.15sec/60° at 6.0V to 0.11sec/60° at 8.4V
High torque in the range of 8kg-cm to 11kg-cm depending on voltage
Has the ability to increase the working stroke from 90°±8° to 180°±10°
Metal gear design ensures reliability and durability in all conditions
Versatility and efficiency with PWM system support
Specifications
Operating voltage: 6.0-8.4V
Gear type: metal
Bearing type: 2BB
Operating speed (no load):
0.15sec/60° at 6.0V
0.12s/60° at 7.4V
0.11s/60° at 8.4V
Operating current (no load):
450mA max. at 6.0V
580mA max. at 7.4V
650mA max. at 8.4V
Torque:
8kg-cm max. at 6.0V
10kg-cm max. at 7.4V
11kg-cm max. at 8.4V
Maximum current:
2.5A max. at 6.0V
3.2A max. at 7.4V
3.6A max. at 8.4V
Idle current: 9.5mA at all voltages
Control system: PWM
Pulse width range: 500-2500μs
Direction of rotation: counterclockwise / pulse width from 1500 to 1900µs
Neutral position: 1500µs
Working stroke: 90°±8° (at 1000-2000µs)
Maximum travel: 180°±10° (500-2500µs)
Extreme angle: 220°
Servo lever: 23T
Connector type: JR
Length of the connecting wire: 240mm±8mm
Storage temperature: -20°C-+70°C
Operating temperature: -10°C-+55°C

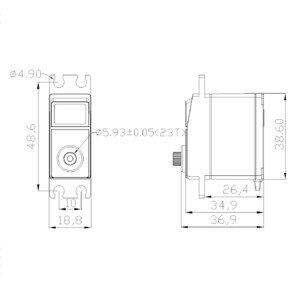

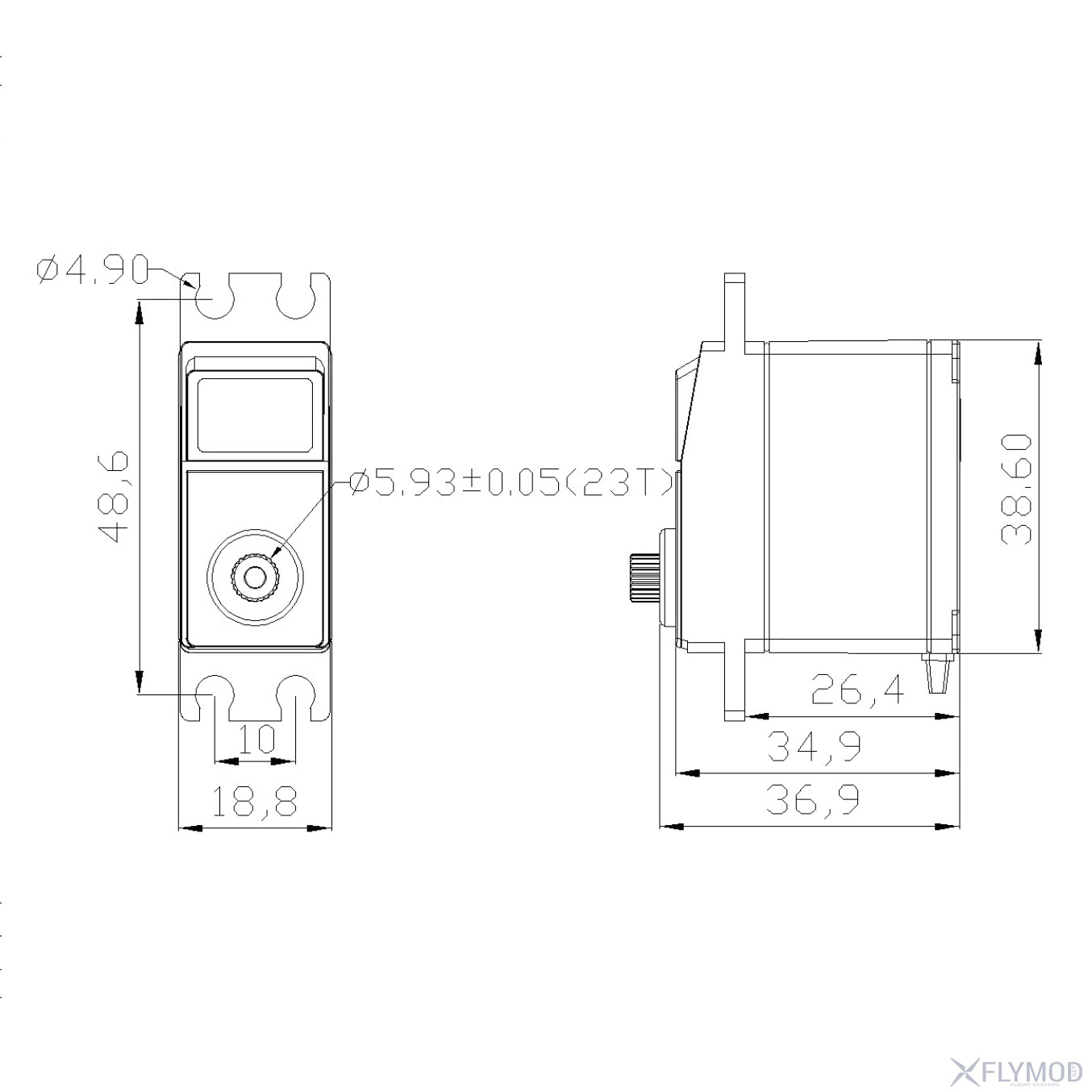

Dimensions: 38.6*18.8*34.9mm
Weight: 43g±0.5g

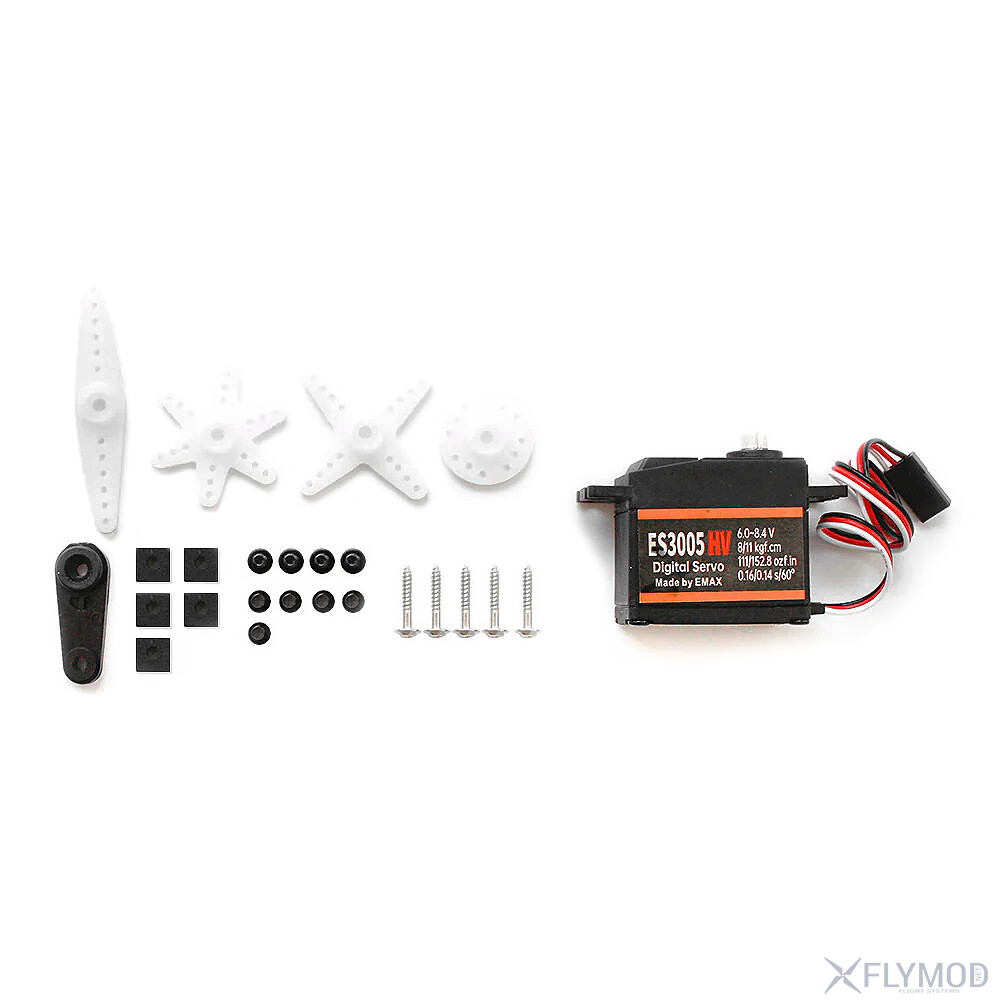

Package
1 x EMAX ES3005HV digital servo with metal gearbox
1 x set of fasteners

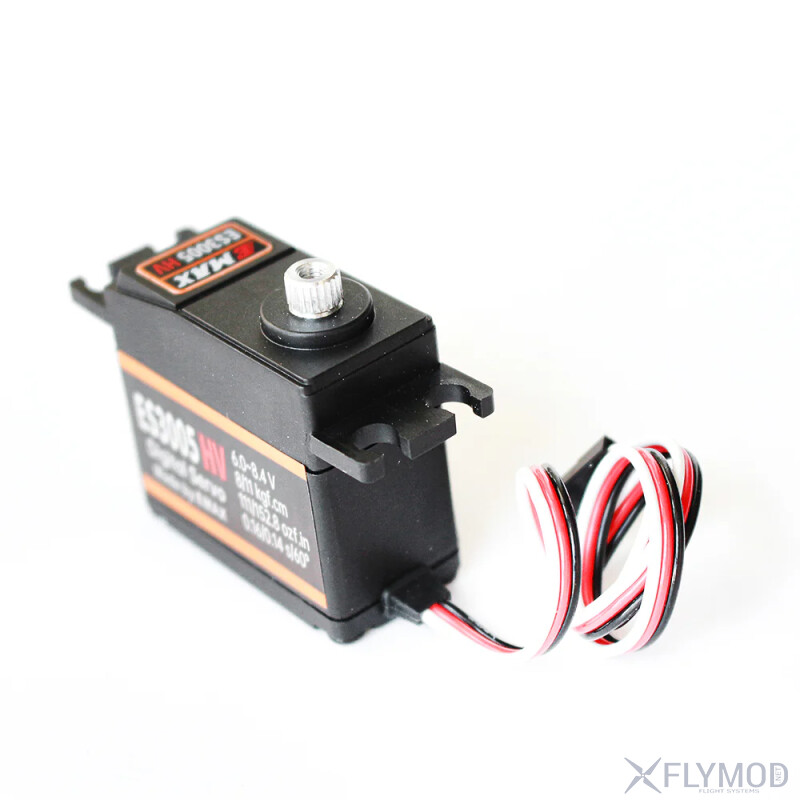

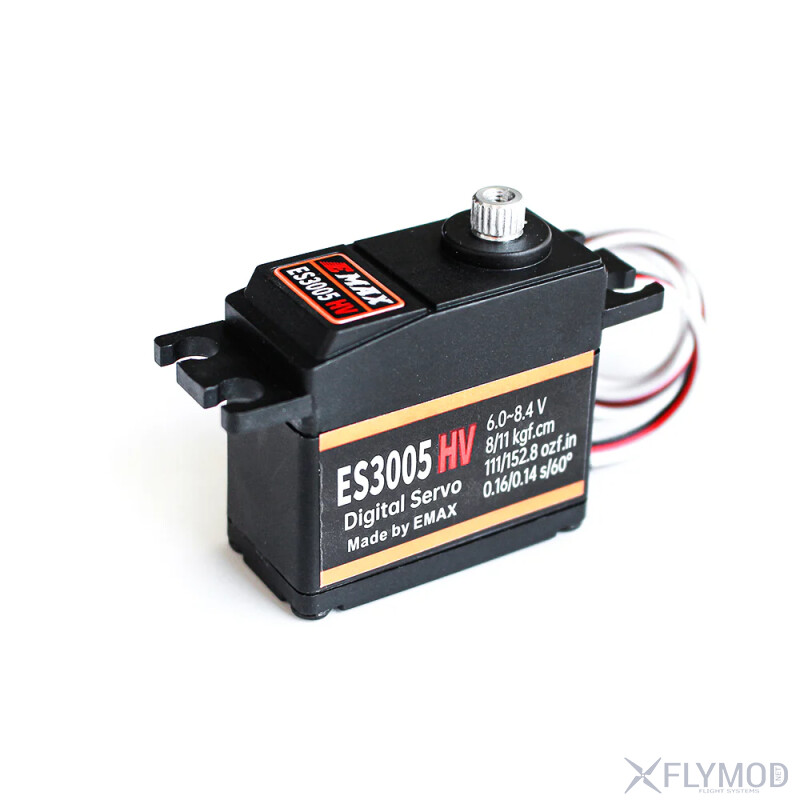

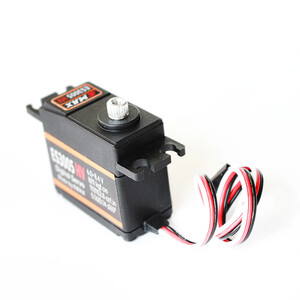

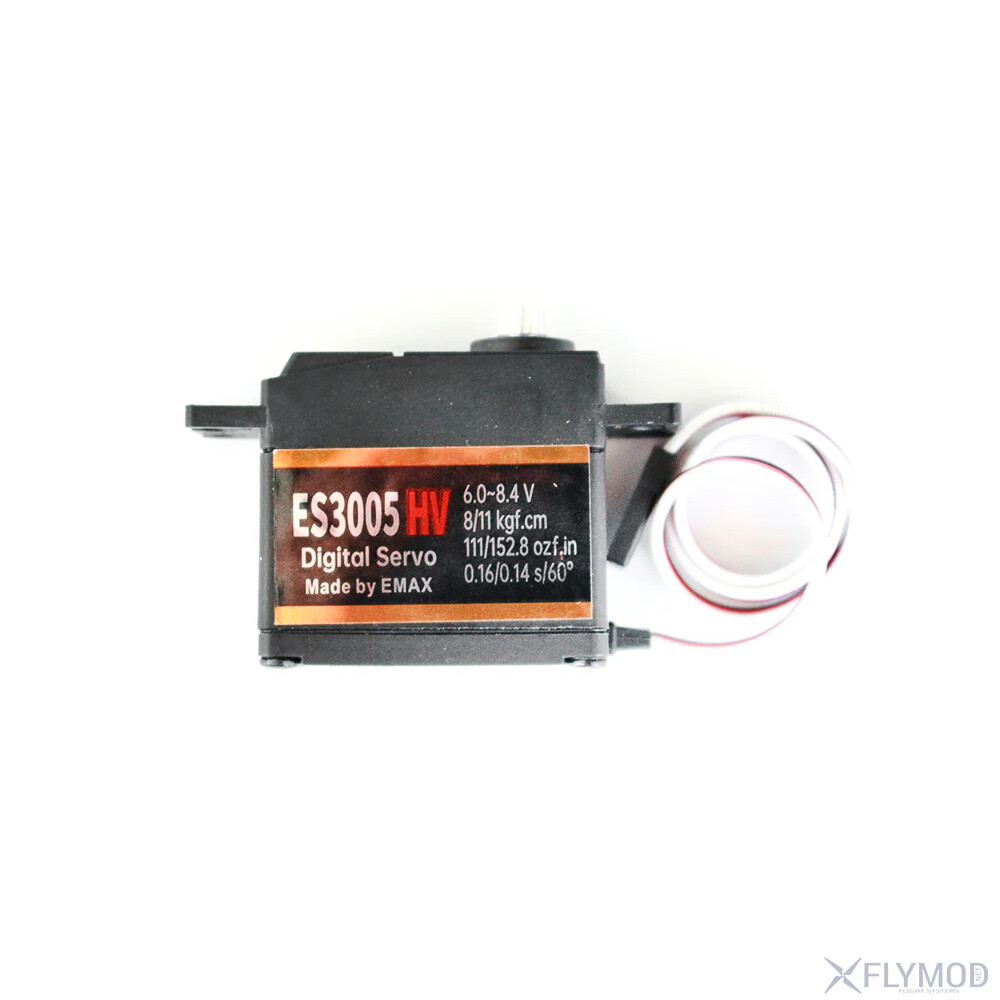

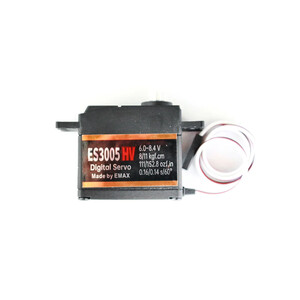

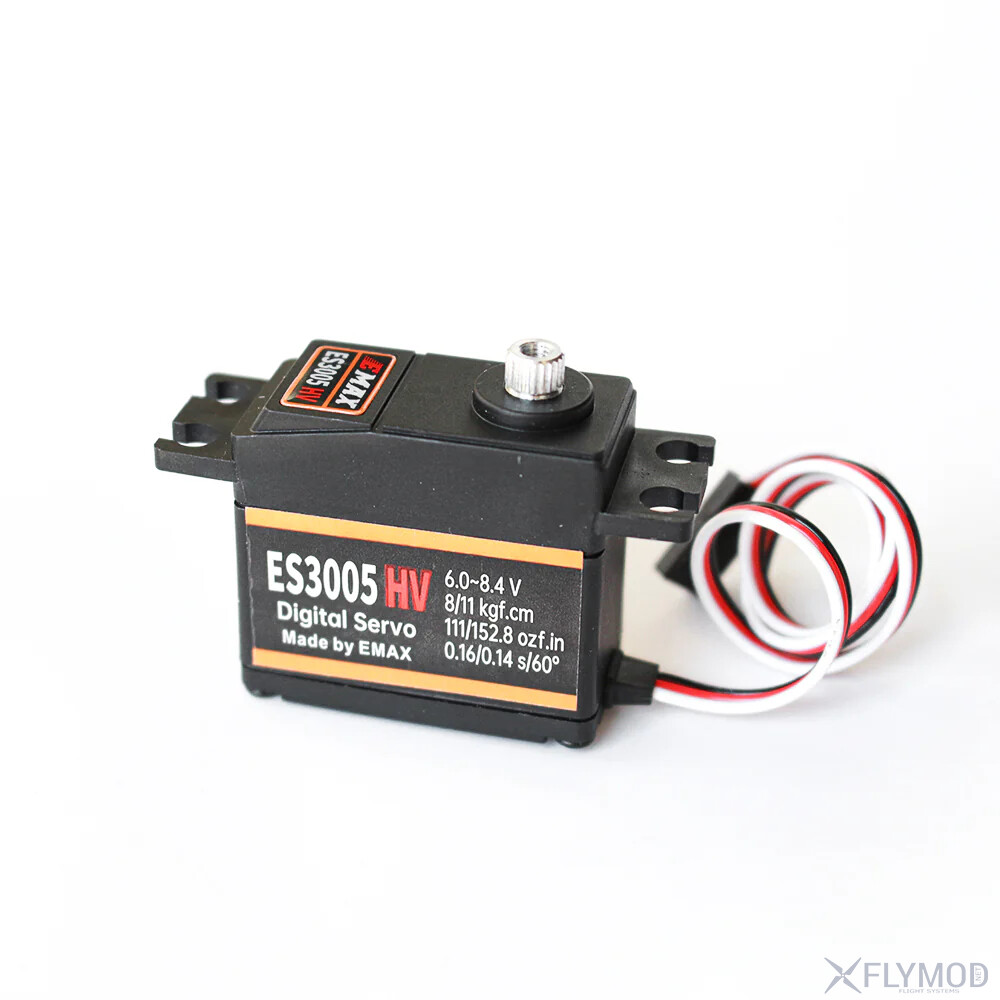

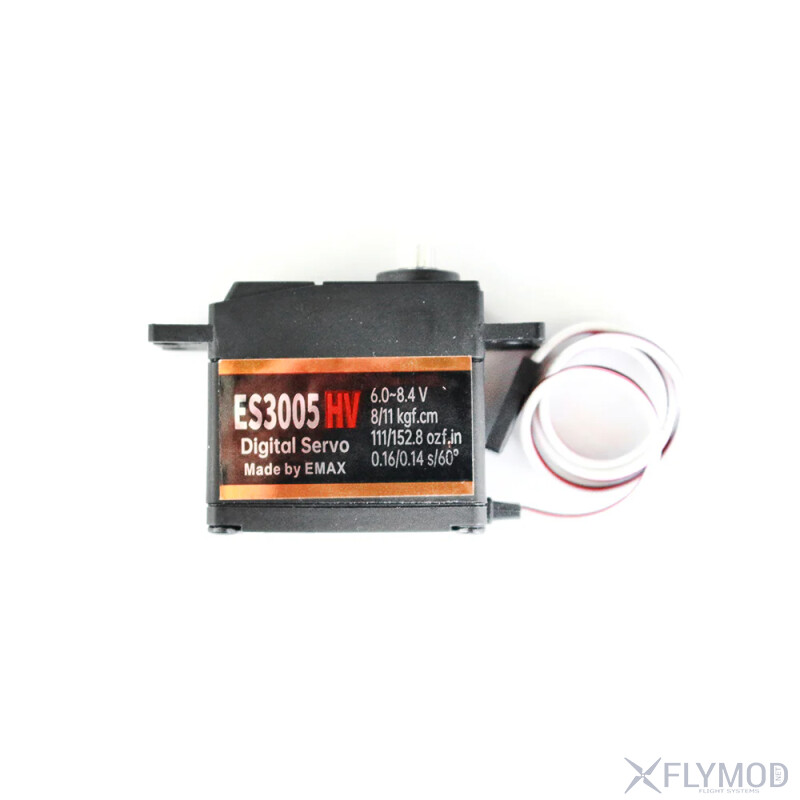

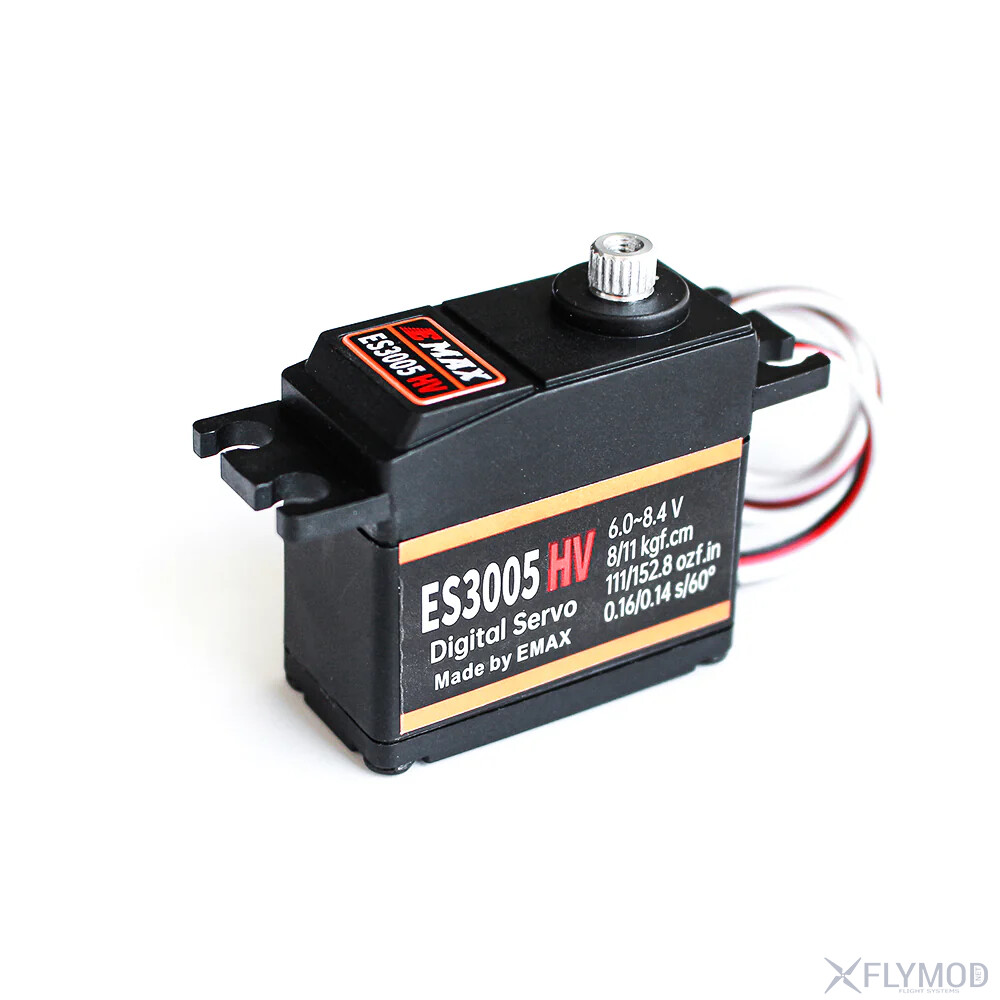

Photos
