Readytosky MARK4 V3 Pro 13/15inch - these carbon frames are available in two versions, 13-inch and 15-inch, designed for long-range drone assembly. They have a 13inch-570mm and 15inch-680mm motor axis spacing and are equipped with 8mm carbon fiber arms that are interconnected to increase structural rigidity. The frame is compatible with Micro 19mm cameras, which are fixed in the carbon sidewalls. It supports mounting holes for stacks of 30.5*30.5mm and 20*20mm. There is also a place in the rear for installing a video transmitter, also with appropriate holes for both formats. The frame is optimized for analog video systems, but also allows for the integration of digital video transmitters.
Features
8mm carbon fiber arms are interconnected to reduce deformation under load
Carbon fiber sidewalls with a 19mm mounting dimension provide a stable mounting of the Micro camera
Two diagonal options - 570mm-13inch and 680mm-15inch centerline models are adapted for long-range drones with propeller sizes up to 15 inches
Suitable for both analog and digital video transmitters
Specifications
MARK4 V3 Pro 13 inch
Frame size along the motor axes: 570mm
Lever thickness: 8mm
Top plate: 2mm
Bottom plate: 3mm
Distance between the camera mounting holes: Micro 19mm
Mounting holes for the stack: 30.5x30.5mm M3/20x20mm M2
Mounting holes for VTX: 30.5x30.5mm M3/20x20mm M2
Mounting holes for motors: 30mm M4
Material: carbon fiber
Color: black
Weight: 520g

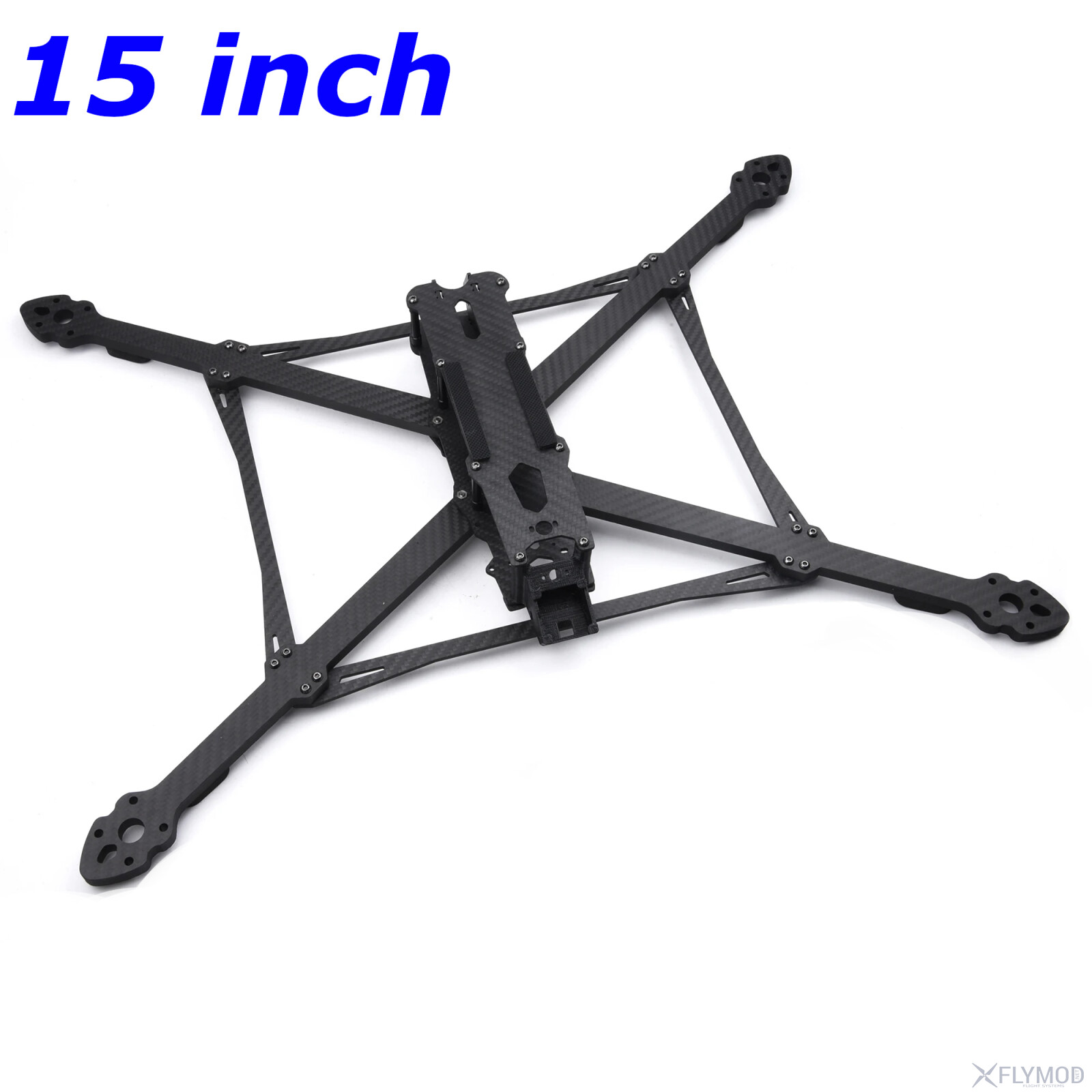

Mark4 V3 Pro 15 inch
Frame size along the axes of the motors: 680mm
Lever thickness: 8mm
Top plate: 2mm
Bottom plate: 3mm
Lower fixed plate: 3mm
Side plate of the camera: 2.5mm
Front/back plate thickness: 2.5mm
Thickness of the surrounding amplification: 3mm
Distance between camera mounting holes: 19mm
Mounting holes for stack: 20*20mm/30.5*30.5mm
VTX mounting holes: 20*20mm/30.5*30.5mm
Mounting holes for motors: 21*21mm M4
Material: carbon fiber
Color: black
Weight: 590g
Package
1 x Readytosky MARK4 V3 Pro 13/15inch 570mm/680mm carbon fiber frame for FPV drone (optional)
