Digital FPV video receiver Walksnail Ascent VRX

Price:7 983 uah with VATPrice in USD:181.00

Bonuses will be issued for this product upon purchase

Read more

Brand: WalksnailSKU 18436

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stock
Notify when available

Description

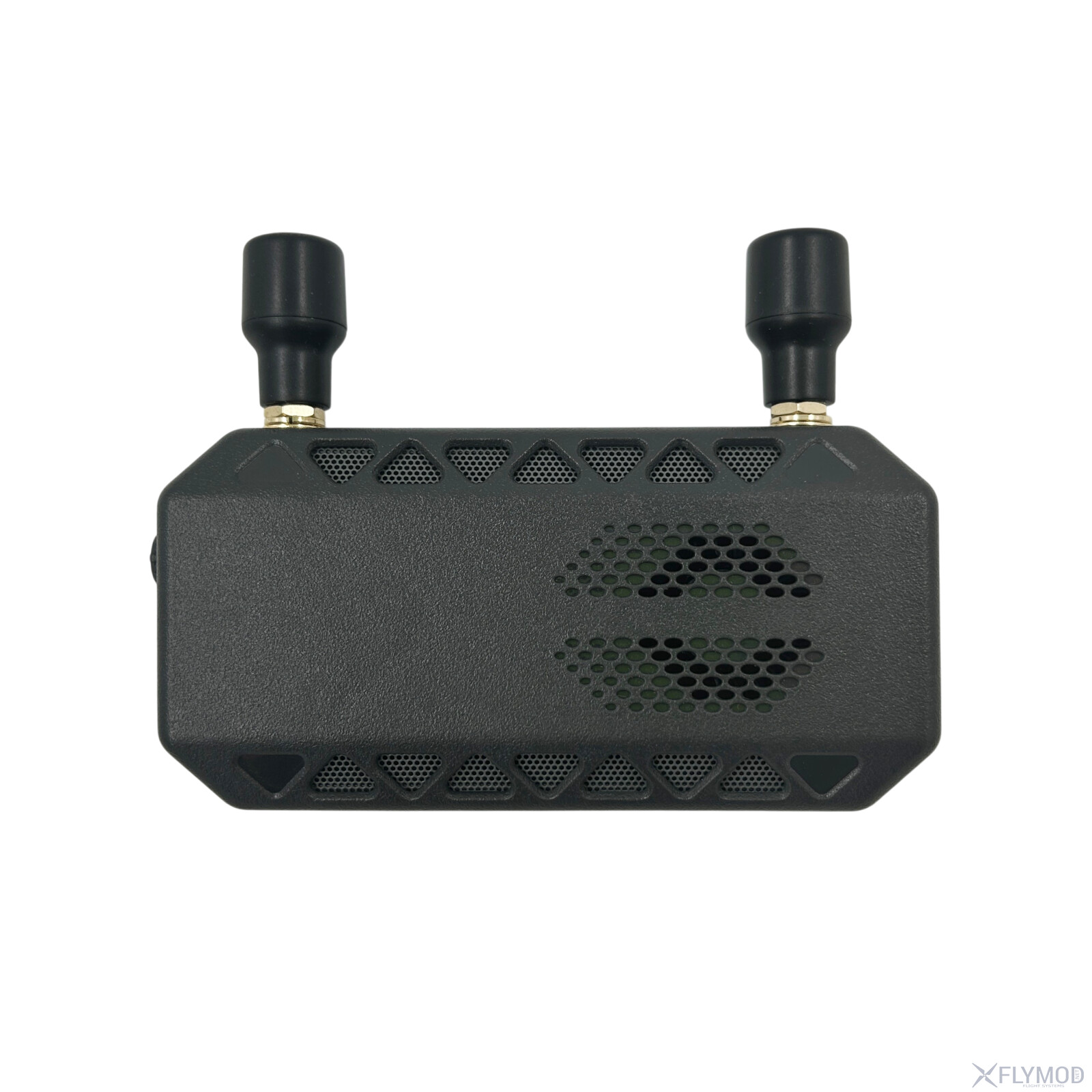

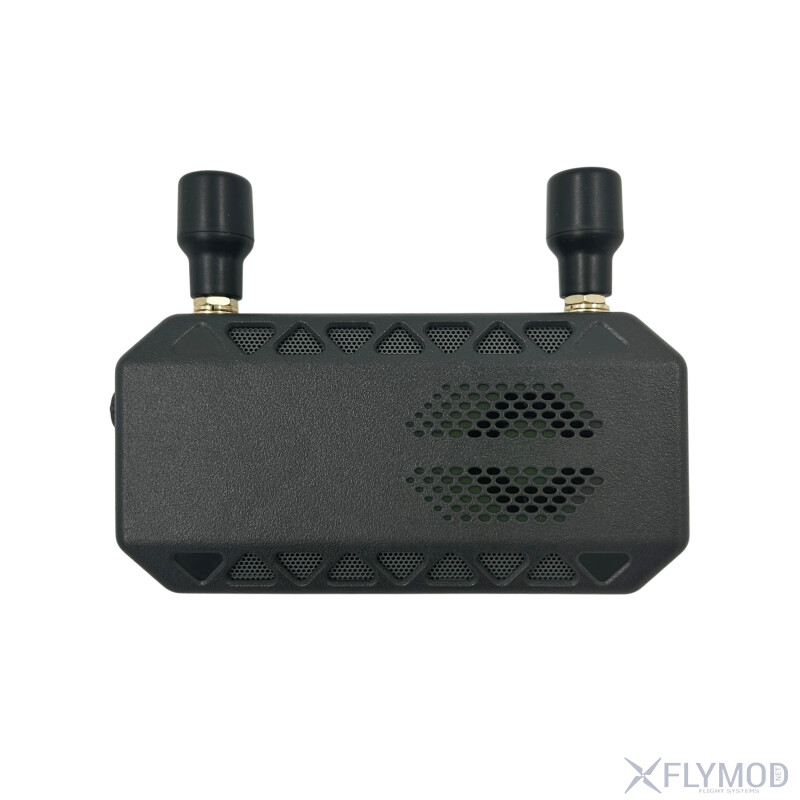

Walksnail Ascent VRX digital FPV video receiver is designed to work with the Ascent HD digital video system and is capable of receiving signals from any devices of this system. The HDMI output with an operating resolution of 1080p60/50fps or 720p60/50fps allows you to output a high-quality video signal to other external devices. Support for MicroSD cards up to 256G allows you to record video in real time. The receiver operates in a wide frequency range of 4.90-6.40GHz with access to 42 channels. It is equipped with two antennas with LHCP polarization and 2dBi gain. Automatic frequency and bit rate tuning in the range of 2.5/5/10/20/40MHz guarantees a continuous and stable signal without interference. Preset transmission modes Smooth, High Quality or Long Range meet different needs. Its compact size and light weight make it portable and easy to use.

Features

• Works with the Ascent HD digital system, compatible with other devices on this system
• Transmits video in 1080p60/50fps, 720p60/50fps resolution via HDMI output
• 4.90-6.40GHz frequency band with 42 working channels guarantees a stable signal without interference
• Features firmware update via USB interface or SD card
• OSD support and easy-to-understand settings for increased usability
• Two antennas with RP-SMA connector are included, which increases the versatility of application

Specifications

VRX module

• Model: Ascent VRX Industry
• Operating frequency: 4.90-6.40GHz
• Number of channels: 42
• Bandwidth: 2.5/5/10/20/40MHz
• Power (EIRP): 5.8GHz:≤ 35dBm, FCC:<20dBm, CE:<14dBm, SRRC:<20dBm
• Power supply: 7.4-25.2V
• I/O interface: HDMl, MicroSD card slot, DC 5.5*2.1mm
• HDMI output: 1080P60/50fps, 720P60/50fps
• SD card: up to 256G supported
• Auto IFR: supported
• Auto bitrate: supported
• System: Ascent HD system
• Size: 114.3*64*24mm
• Weight: 117.9g

Antennas

• Model: Red bird
• Working frequency: 5.6-6.0GHz
• Polarization: circular left-handed (LHCP)
• Gain: 2dBi
• Radiation efficiency: ≥97%
• VSWR: ≤1.3
• Cross-polarization deviation: -15-30dB
• Connector: RP-SMA
• Dimensions: 24.8*15.3mm
• Weight: 3.5g

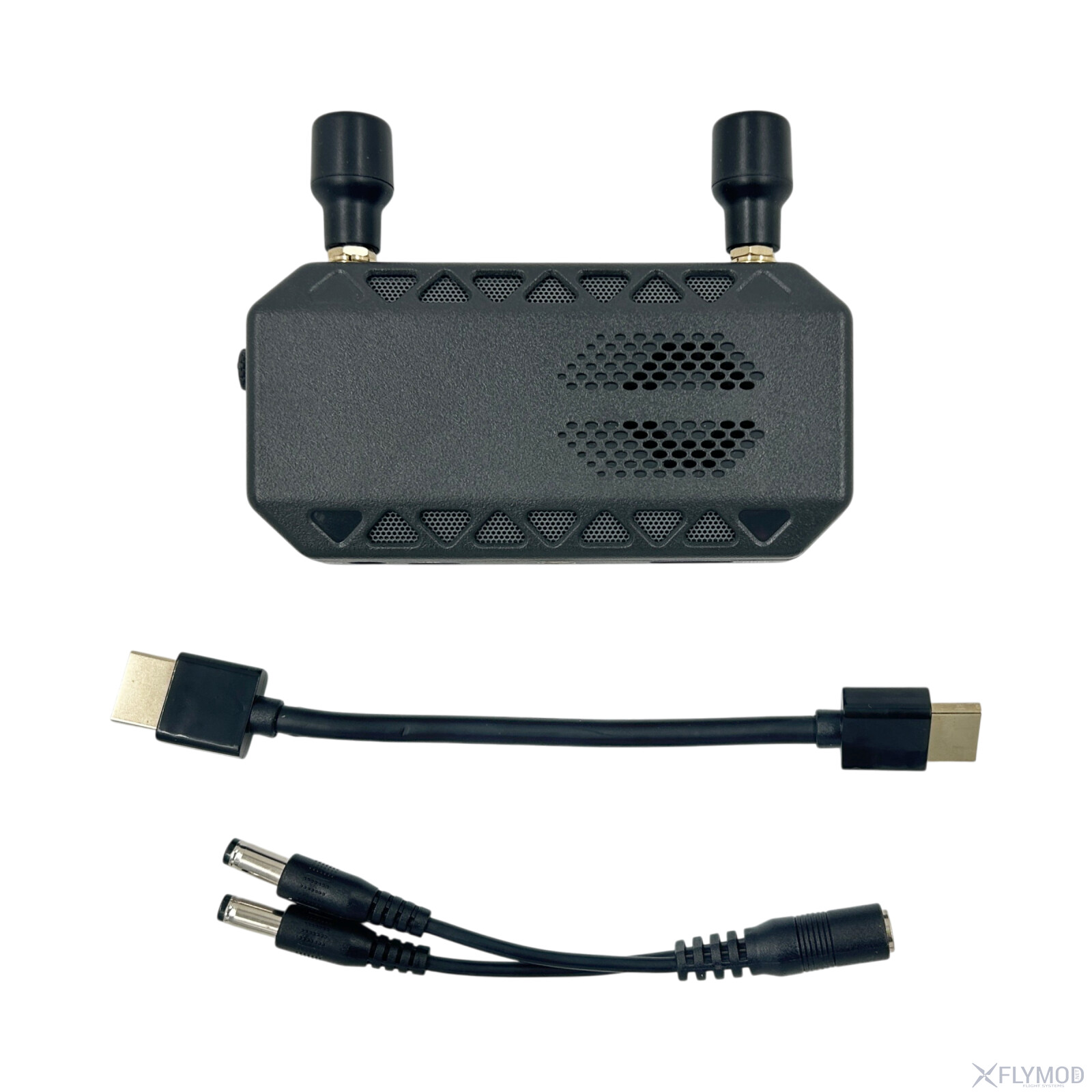

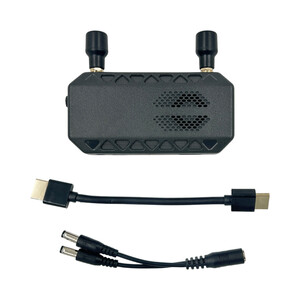

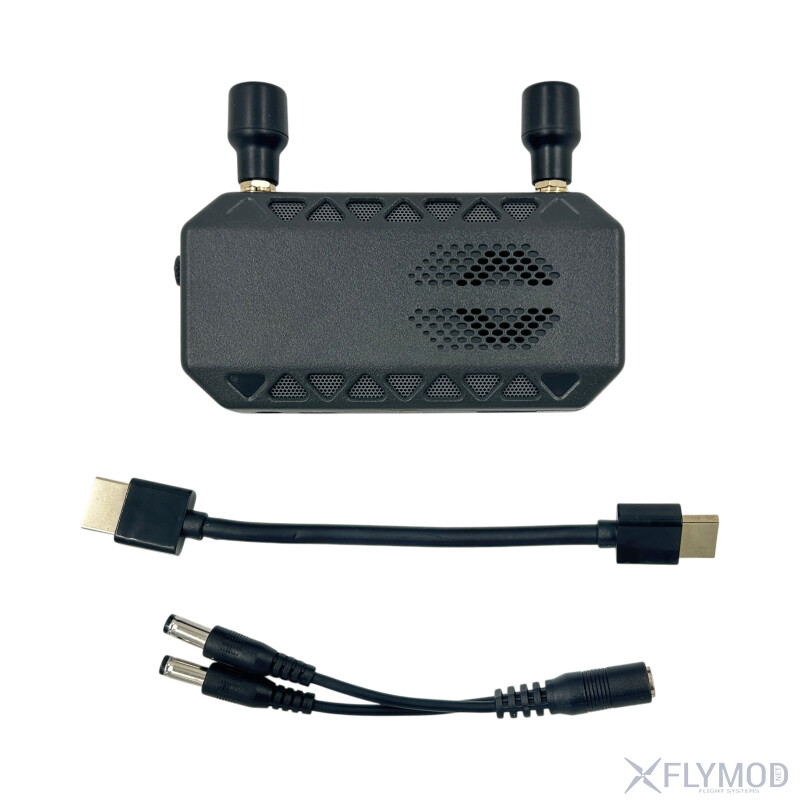

Package

• 1 x Walksnail Ascent VRX digital FPV video receiver
• 2 x antennas
• 1 x HDMI cable 10cm long
• 1 x DC1-2 power splitter cable

Files

• Довідник користувача Цифрового FPV відеоприймача Walksnail Ascent VRX
• Файл для розблокування повної потужності Ascent (закинути на SD карту та назвати Ascent_std.txt)
• Програма для налаштування CaddxPcTool - Windows V1.1.6 для Цифрового FPV відеоприймача Walksnail Ascent VRX

Useful links

• Прошивки до модулів Ascent_V16.5.3
