Skyzone Mushroom antenna 4.0-4.5GHz/4.5-5.0GHz/6.1-6.7GHz/6.7-7.2GHz

Price:248 uah with VATPrice in USD:5.90

Bonuses will be issued for this product upon purchase

Read more

Brand: SkyzoneSKU 18199

• 4.0-4.5G Pink
• 4.5-5.0G Orange
• 6.1-6.7G Grey
• 6.7-7.2G Blue

Select the option!

In stock:

Buy

You can buy this item with delivery in Ukraine

This item is available for order by legal entities for paying non-cash and includes VAT.

Out of stockExpected: 11.08.2025
Notify when available

Description

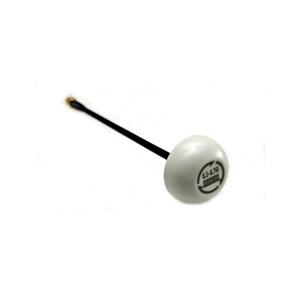

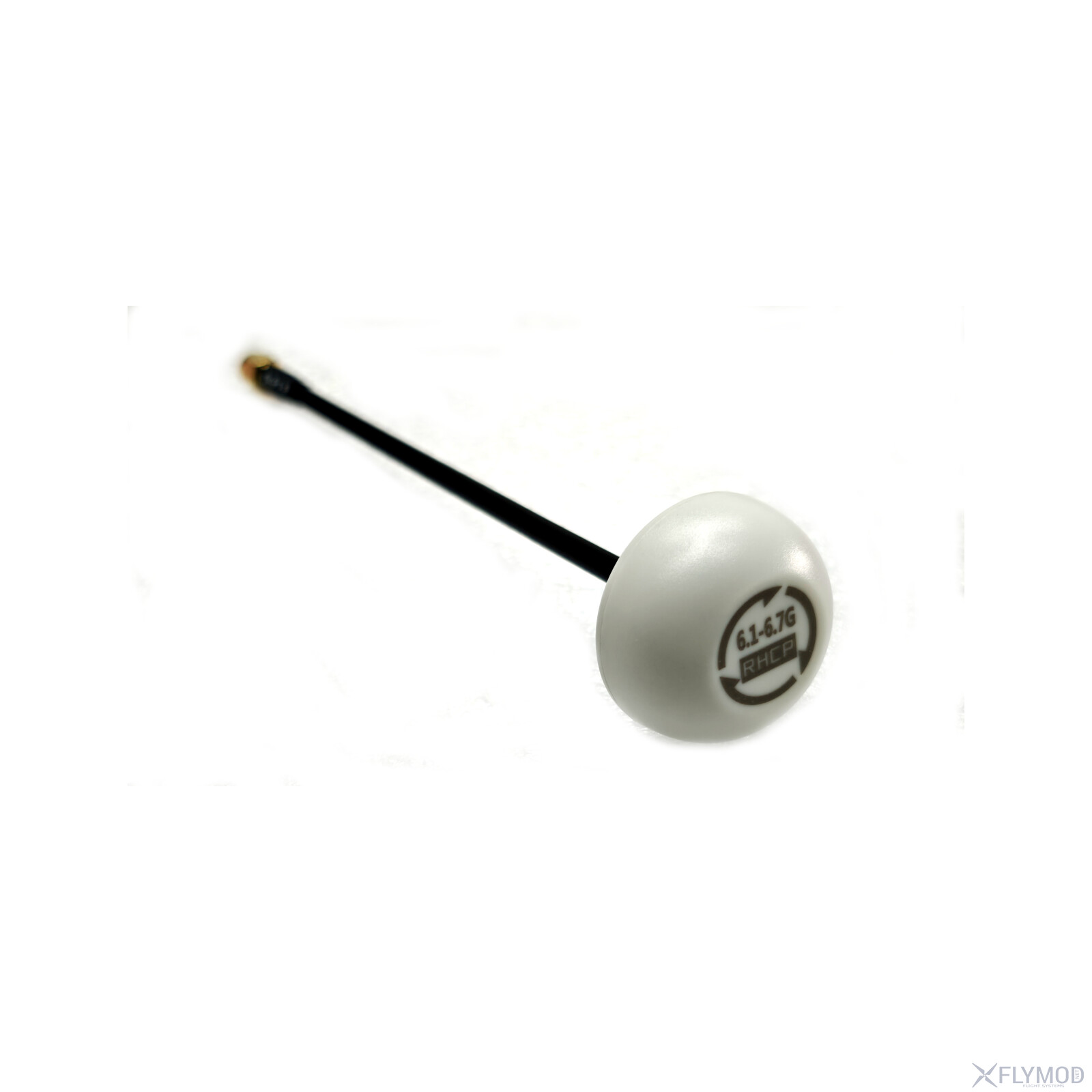

Skyzone Mushroom antenna is designed for stable operation in the high-frequency bands 4.0-4.5GHz, 4.5-5.0GHz, 6.1-6.7GHz and 6.7-7.2GHz. Thanks to its circular right-handed polarization(RHCP), it effectively minimizes the impact of multipath scattering. The omni-directional radiation pattern provides a stable signal. The ruggedized housing and standard SMA connector make the antenna compatible with most modern video transmitters.

Features

• Available in some frequency bands 4.0-4.5GHz/4.5-5.0GHz/6.1-6.7GHz/6.7-7.2GHz
• Circular right-handed polarization helps reduce multipath signal scattering and improves communication stability
• Has a rugged and reliable design

Specifications

• Frequency range: (optional)

  • 4.0GHz-4.5GHz
  • 4.5GHz-5.0GHz
  • 6.1GHz-6.7GHz
  • 6.7GHz-7.2GHz
• Polarization: right-hand circular (RHCP)
• Directionality: omni-directional
• Connector: SMA
• Length (total):

  • 4.0GHz-4.5GHz - 185mm
  • 4.5GHz-5.0GHz - 185mm
  • 6.1GHz-6.7GHz - 177mm
  • 6.7GHz-7.2GHz - 177mm
• Weight:
  • 4.0GHz-4.5GHz - 28g
  • 4.5GHz-5.0GHz - 28g
  • 6.1GHz-6.7GHz - 19g
  • 6.7GHz-7.2GHz - 19g

Package

• 1 x Skyzone Mushroom antenna 4.0-4.5GHz/4.5-5.0GHz/6.1-6.7GHz/6.7-7.2GHz (optional)

Files

• Antenna Test Report (Passive-BW) 4.0-4.5GHz
• Antenna Test Report (Passive-BW) 4.5-5.0GHz
• Antenna Test Report (Passive-BW) 6.1-6.7GHz
• Antenna Test Report (Passive-BW) 6.7-7.2GHz

Photos
